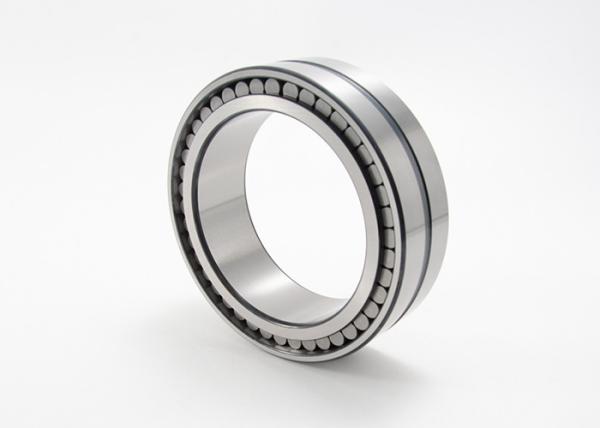

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP
Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP
Specifications
Brand Name :
MOUETTE
Model Number :
NN3010K/SP, NN3011KTN1/W33, NN3012, NN3013, NN3014, NN3015, NN3016, NN3017, NN3018, NN3019, NN3020
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
10
Price :
USD20 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Super Precision Double Row Cylindrical Roller Bearing
Bearing part :
Complete bearing
Bore type :
Tapered
Cage Material :
Machined Brass / Non-metallic
Design :
NN design
Loose flange :
None
Bearing Material :
Chrome steel 100Cr6
Number of flanges, inner ring :
3
Number of flanges, outer ring :
1
Number of rows :
2
Radial internal clearance :
C1 or Customized
Tolerance class :
P5, P4, SP
Description

Super Precision Double Row Cylindrical Roller Bearing With Tapered Bore NN3010K SP

Super-precision double row cylindrical roller bearing with tapered bore

Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.

  • Very high radial load carrying capacity
  • High rigidity and high running accuracy
  • Minimize noise, vibration and heat generation
  • Accommodate axial displacement in both directions

Super Precision Double Row Cylindrical Roller Bearing With Tapered Bore NN Series Specifications:

Part Number Dimension Basic Load Rating (KN) Limiting Speed Mass
(mm) (rpm) (kg)
d D B rsmin Fw Ew Cr Cor Grease Oil 　
NN3010 50 80 23 1 - 72.5 52 73 10000 12000 0.428
NN3010/W33 50 80 23 1 - 72.5 52 73 10000 12000 0.428
NN3010K 50 80 23 1 - 72.5 52 73 10000 12000 0.42
NN3010K/W33 50 80 23 1 - 72.5 52 73 10000 12000 0.42
NN3010TN1 50 80 23 1 - 72.5 52 73 10000 12000 0.428
NN3010TN1/W33 50 80 23 1 - 72.5 52 73 10000 12000 0.428
NN3010KTN1 50 80 23 1 - 72.5 52 73 10000 12000 0.42
NN3010KTN1/W33 50 80 23 1 - 72.5 52 73 10000 12000 0.42
　 　 　 　 　 　 　 　 　 　 　 　
NN3011 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.68
NN3011/W33 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.68
NN3011K 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.62
NN3011K/W33 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.62
NN3011TN1 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.68
NN3011TN1/W33 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.68
NN3011KTN1 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.62
NN3011KTN1/W33 55 90 26 1.1 - 81 69.3 96.5 9500 11000 0.62
　 　 　 　 　 　 　 　 　 　 　 　
NN3012 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.72
NN3012/W33 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.72
NN3012K 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.66
NN3012K/W33 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.66
NN3012TN1 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.72
NN3012TN1/W33 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.72
NN3012KTN1 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.66
NN3012KTN1/W33 60 95 26 1.1 - 86.1 73.7 106 9000 10000 0.66
　 　 　 　 　 　 　 　 　 　 　 　
NN3013 65 100 26 1.1 - 91 76.5 116 8500 9500 0.77
NN3013/W33 65 100 26 1.1 - 91 76.5 116 8500 9500 0.77
NN3013K 65 100 26 1.1 - 91 76.5 116 8500 9500 0.71
NN3013K/W33 65 100 26 1.1 - 91 76.5 116 8500 9500 0.71
NN3013TN1 65 100 26 1.1 - 91 76.5 116 8500 9500 0.77
NN3013TN1/W33 65 100 26 1.1 - 91 76.5 116 8500 9500 0.77
NN3013KTN1 65 100 26 1.1 - 91 76.5 116 8500 9500 0.71
NN3013KTN1/W33 65 100 26 1.1 - 91 76.5 116 8500 9500 0.71
　 　 　 　 　 　 　 　 　 　 　 　
NN3014 70 110 30 1.1 - 100 96.8 150 7500 8500 1.06
NN3014/W33 70 110 30 1.1 - 100 96.8 150 7500 8500 1.06
NN3014K 70 110 30 1.1 - 100 96.8 150 7500 8500 1
NN3014K/W33 70 110 30 1.1 - 100 96.8 150 7500 8500 1
NN3014TN1 70 110 30 1.1 - 100 96.8 150 7500 8500 1.06
NN3014TN1/W33 70 110 30 1.1 - 100 96.8 150 7500 8500 1.06
NN3014KTN1 70 110 30 1.1 - 100 96.8 150 7500 8500 1
NN3014KTN1/W33 70 110 30 1.1 - 100 96.8 150 7500 8500 1
　 　 　 　 　 　 　 　 　 　 　 　
NN3015 75 115 30 1.1 - 105 96.8 150 6000 7200 1.16
NN3015/W33 75 115 30 1.1 - 105 96.8 150 6000 7200 1.16
NN3015K 75 115 30 1.1 - 105 96.8 150 6000 7200 1.1
NN3015K/W33 75 115 30 1.1 - 105 96.8 150 6000 7200 1.1
NN3015TN1 75 115 30 1.1 - 105 96.8 150 6000 7200 1.16
NN3015TN1/W33 75 115 30 1.1 - 105 96.8 150 6000 7200 1.16
NN3015KTN1 75 115 30 1.1 - 105 96.8 150 6000 7200 1.1
NN3015KTN1/W33 75 115 30 1.1 - 105 96.8 150 6000 7200 1.1
　 　 　 　 　 　 　 　 　 　 　 　
NN3016 80 125 34 1.1 - 113 119 186 4800 6000 1.54
NN3016/W33 80 125 34 1.1 - 113 119 186 4800 6000 1.54
NN3016K 80 125 34 1.1 - 113 119 186 4800 6000 1.5
NN3016K/W33 80 125 34 1.1 - 113 119 186 4800 6000 1.5
NN3016TN1 80 125 34 1.1 - 113 119 186 4800 6000 1.54
NN3016TN1/W33 80 125 34 1.1 - 113 119 186 4800 6000 1.54
NN3016KTN1 80 125 34 1.1 - 113 119 186 4800 6000 1.5
NN3016KTN1/W33 80 125 34 1.1 - 113 119 186 4800 6000 1.5
　 　 　 　 　 　 　 　 　 　 　 　
NN3017 85 130 34 1.1 - 118 125 201 4500 5600 1.63
NN3017/W33 85 130 34 1.1 - 118 125 201 4500 5600 1.63
NN3017K 85 130 34 1.1 - 118 125 201 4500 5600 1.55
NN3017K/W33 85 130 34 1.1 - 118 125 201 4500 5600 1.55
NN3017TN1 85 130 34 1.1 - 118 125 201 4500 5600 1.63
NN3017TN1/W33 85 130 34 1.1 - 118 125 201 4500 5600 1.63
NN3017KTN1 85 130 34 1.1 - 118 125 201 4500 5600 1.55
NN3017KTN1/W33 85 130 34 1.1 - 118 125 201 4500 5600 1.55
　 　 　 　 　 　 　 　 　 　 　 　
NN3018 90 140 37 1.5 - 127 143 228 4300 5000 2.09
NN3018/W33 90 140 37 1.5 - 127 143 228 4300 5000 2.09
NN3018K 90 140 37 1.5 - 127 143 228 4300 5000 1.95
NN3018K/W33 90 140 37 1.5 - 127 143 228 4300 5000 1.95
NN3018TN1 90 140 37 1.5 - 127 143 228 4300 5000 2.09
NN3018TN1/W33 90 140 37 1.5 - 127 143 228 4300 5000 2.09
NN3018KTN1 90 140 37 1.5 - 127 143 228 4300 5000 1.95
NN3018KTN1/W33 90 140 37 1.5 - 127 143 228 4300 5000 1.95
　 　 　 　 　 　 　 　 　 　 　 　
NN3019 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019/W33 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019K 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019K/W33 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019TN1 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019TN1/W33 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019KTN1 95 145 37 1.5 - 132 150 246 4000 5000 2.19
NN3019KTN1/W33 95 145 37 1.5 - 132 150 246 4000 5000 2.19
　 　 　 　 　 　 　 　 　 　 　 　
NN3020 100 150 37 1.5 - 137 157 265 4000 4800 2.28
NN3020/W33 100 150 37 1.5 - 137 157 265 4000 4800 2.28
NN3020K 100 150 37 1.5 - 137 157 265 4000 4800 2.28
NN3020K/W33 100 150 37 1.5 - 137 157 265 4000 4800 2.28
NN3020TN1 100 150 37 1.5 - 137 157 265 4000 4800 2.1
NN3020TN1/W33 100 150 37 1.5 - 137 157 265 4000 4800 2.1
NN3020KTN1 100 150 37 1.5 - 137 157 265 4000 4800 2.1
NN3020KTN1/W33 100 150 37 1.5 - 137 157 265 4000 4800 2.1

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP

Super Precision Taper Bore Bearing Double Row Miniature Cylindrical Roller NN3010K SP
