Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll
Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll
Specifications
Brand Name :
JIMA
Model Number :
RACULP-S-B/G/R
Certification :
SGS, ISO,Reach, RoHS
Place of Origin :
china
MOQ :
100kg
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per month
Delivery Time :
5-15 days
Packaging Details :
wooden carton
Purity :
99.95%
Pinholes :
None
Anti oxidation :
180 degree 60 minutes, 180 days 23 degree
Thickness :
1/2 oz,3/4 oz,1 oz,2 oz,
Color :
red or black
Elongation :
≥ 1.5%
Tensile strength :
≥ 160 MPa
Peel strength :
≥ 1 N/mm
Foil profile :
RA≤0.15μm，Rz≤1.7μm
Application: :
FCCL,FPC
Length Per Roll :
500 - 5000 Meter
Inter Diameter :
76 Mm，152 Mm， 3 Inch，6 Inch
Description

GOOD RA double shiny Roll copper foil For lithium-ion batteries of power energy

Quickly details

single side side treatment low profile foil in back/red.

Thickness: 0.012-0.070 mm

Width: 5-520 mm

Length: 500-5000 M

ID: 76 mm,152 mm

Alloy: T2,C11000,C1100,C101,E-Cu58

Temper: H

Features:

1. double shiny side ,superior rupture endurance.

2. Stable properties suitable for high capacity rechargeable battery .

3. Eco-friendly products and processes.

4. Excellent uniformity and infiltration.

Application:

1. Lib: notebook PC, mobile phone.

2. Lip: mobile phone

3. XEV: hybrid-electric vehicle.(HEV)

4. Parallel hybrid electric vehicle(PHEV)

5. Electric vehicle(EV)

Compare between CA copper foil and ED copper foil

1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.

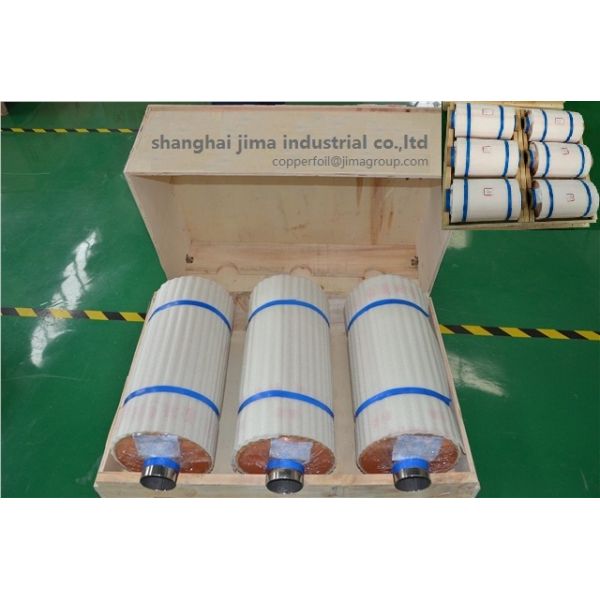

Package:wooden carton

Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll

FAQ:

Q1: What's your guarantee?

A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?


A: The MOQ is 150 kg.

Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.

Q6. what is your standard width?

A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.

Typical properties of RA rolled copper foil lithium-ion batteries

Thickness

9/10/12/15/20um

 Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade － C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) － Qualified Qualified Qualified Qualified Qualified

Remark:Standard Width,520(±1)mm,May according to the customer request tailor.
