Black Electrolytic Copper Foil , ISO High Tensile Strength PCB Foil Copper
Black Electrolytic Copper Foil , ISO High Tensile Strength PCB Foil Copper
Specifications
Brand Name :
JIMA
Model Number :
EDCU-HC
Certification :
SGS, ISO,Reach, RoHS
Place of Origin :
china
MOQ :
100kg
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per month
Delivery Time :
5-15 days
Packaging Details :
wooden carton
Purity :
99.95%
Pinholes :
None
Anti oxidation :
180 degree 60 minutes, 180 days 23 degree
Thickness :
1 oz
Color :
black
Elongation :
≥ 1.5%
Tensile strength :
≥ 160 MPa
Description

black 35um Standard electrolytic copper foil for PCB

Introduction

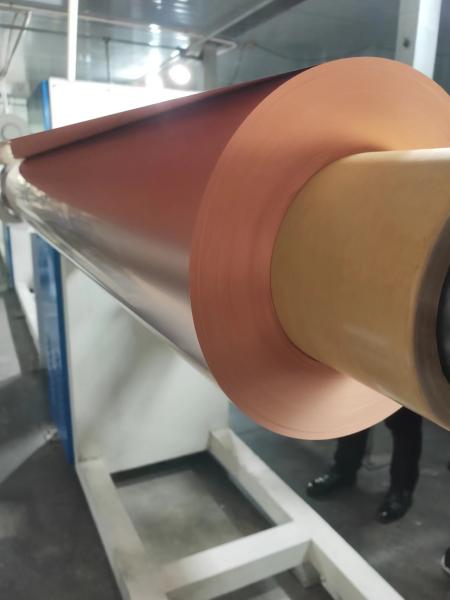

The roll shape (from 1/3oz to 2oz thickness)width. In usual, it is from 500mm to 1295mm, the max width could reach to 1370mm.

The normal sheet size is 1295mm*1295mm, 1295mm*1092mm, 1295mm*990mm. it also can be cut to the size as customer’s requirement.

1/3oz, 1/2oz, 1oz, 3oz, 12oz, 14oz are popular thickness, and we can also provide surface treatment service.

Feature

Perfect normal temperature storage performance

High temperature anti-oxidization performance

High temperature elongation performance

Being used in the production of the different double-face and multi-player printed circuit boards

Application:

Phenolic resin and Epoxy board

FAQ:

Q1. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q2. what is your standard width?

A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.

Typical properties of Standard copper foil for phenolic resin board and epoxy board.

Classification

 Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

 IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2
Purity ％ ≥99.8

IPC-TM-650

2.3.15
Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17
Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)

 Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18
Elongation

R.T.(23℃)

 ％ ≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18
Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14
Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8
Pinholes&porosity Number No

IPC-TM-650

2.1.2
Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1295(±1)mm,May according to the customer request tailor.

2. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
