0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate
0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate
Specifications
Brand Name :
JIMA
Model Number :
RCU001
Certification :
SGS, ISO,Reach, RoHS，CQC
Place of Origin :
China
MOQ :
500Kg
Price :
Negotiations
Supply Ability :
500 Ton per month
Delivery Time :
7-15 days
Packaging Details :
Wooden carton
thickness :
0.05mm
temper :
O，soft
inner diameter :
40mm，76m，152mm
width :
2mm-400mm
color :
red copper
Grade :
C1100/C1020/C1220
Cu（Min) :
99.95%
standard :
GB/T18813-2002，GB/T5231-2001
Surface :
mill finish
Description

0.05mm thickness C1100 SOFT O temper copper foil for battery production

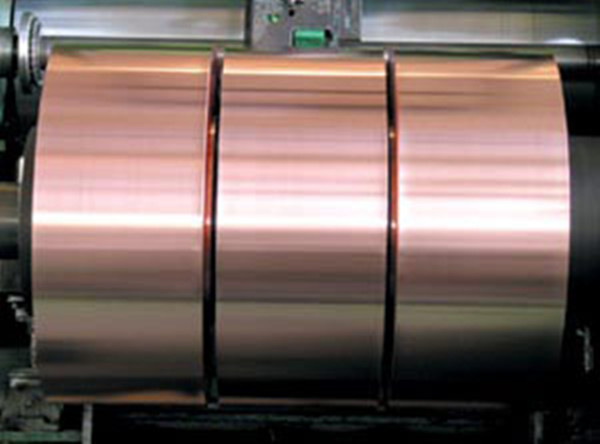

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate

Quick Details

applicatiom:C1100 SOFT copper foil for battery production
thickness:0.05mm
width:2mm-400mm
material:red copper
grade:C1100/C1020/C1220
Conductivity(20C):min98.20%IACS
Cu(Min):99.95%
Vickers hardness:45-65
shape:thin copper foil
temper:soft
standard:GB/T18813-2002,GB/T5231-2001
Pacakge:wooden pallets,corrugated paper,paper angle protector
MOQ:500KGS
Surface:mill finish

Copper Copper Foil Size And Tolerance (mm)

Thickness Thickness Tolerance Width Width Tolerance
0.01~0.015 ± 0.002 5 ~ 610 ± 0.1
0.018~0.10 ± 0.003 5 ~ 610
0.10~0.50 ± 0.005 5 ~ 610

Copper Copper Foil Physical Property

1. Density: 8.9g/cm3
2. Electrical conductivity (20°C): min 90%IACS for annealed to temper
3. min 80%IACS for rolled to temper
4. Thermal conductivity (20°C): 610W/(m°C)
5. Elastic modulus: 118000N/m
6. Softening temperature: ≥380°C

Chemical Composition

C1100 Copper foil Chemical composition(%)
Element Cu+Ag Sn Zn Pb Ni Fe As O
Standard Value ≥99.90 ≤0.002 ≤0.005 ≤0.005 ≤0.005 ≤0.005 ≤0.002 ≤0.06

Copper Copper Foil Applicantion

1. Widely used for copper foil for transformers,

2. digital cameras, cell phones, DVD, HVD precision electronic products,

3. computer communications, wires, cables,

4. high-frequency transmission, isolation, electromagnetic interference.

​5 Circuit turns the path,

6. because of excellent electrical conductivity of copper, used for low attenuation requirements, performance is better than copper foil mylar and other high-frequency attenuation: 10-25GHz.

Package :wooden pallet

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate

RFQ:

Q1. What's imformation do you need before quote?

A: yes,Temper,width,thickness, and order quantity

Q2: what is your minimum order quantity?

A: Yes,500kgs

Q3: what is your deliver time ?

A: 7-15days

Q4: what is your normal warranty period?

A:12months

Q5: are you manufacturer or trading company ?

A: manufacturer​,we have our own factory.welcome to visit us.
