Specifications
Brand Name :
JIMA
Model Number :
EDCU-HC
Certification :
SGS, ISO,Reach, RoHS
Place of Origin :
china
MOQ :
100kg
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000 Ton per month
Delivery Time :
5-15 days
Packaging Details :
wooden carton
Anti oxidation :
180 degree 60 minutes, 180 days 23 degree
Thickness :
3/4 oz
Color :
red or black
Application: :
FCCL,FPC
Description

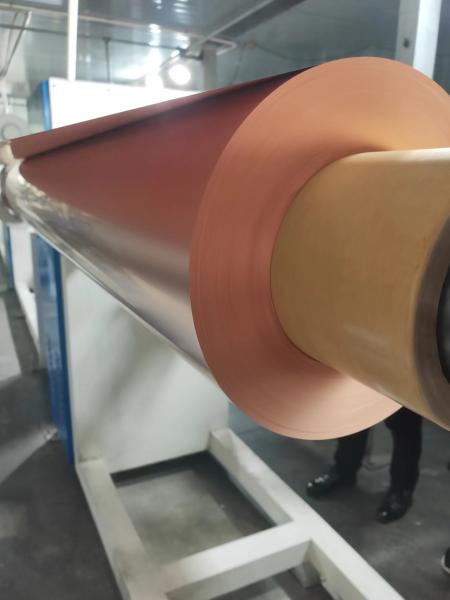

zinc-free 25 um electrolytic VLP copper foil for Flexible Copper Clad Laminate

Quickly Introduction.

1) Thickness Range: 25µm.

2) Width: 5-1380 mm,

3) Length: 500-5000 M.

VLP-THE-HF ED Copper Foil Characteristics.

1. High temperature resistance.

2. Good folding endurance.

3. High conductivity.

VLP ED copper foil application:

. Used for multilayer circuit boards.

. Flexible Copper Clad Laminate.

RFQ:

Q1. Length per roll?

500-5000meter

Q2. Are the package suitable For export ?

Yes , it is suitable for export.

Q3. Can you provide COA?

Yes , we can.

Difference between rolled copper foil and electrolytic copper foil.

Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.

ED copper foil standard width is 1295mm,max width is 1380mm

Packaging:

Typical properties of VLP ED copper foil(for FPC or inner layer of HDI).

Classification

 Unit Requirement Test Method
Foil Designation / 1 H M 1 IPC-4562A
Nominal thickness / 10um 12um 1/2 OZ (18um) 3/4 OZ(25um) 1 OZ(35um) IPC-4562A
Area Weight g/㎡ 98±4 107±4 153±5 228±8 285±10

IPC-TM-650

2.2.12.2
Purity ％ ≥99.8

IPC-TM-650

2.3.15
Foil Profile Shiny side(Ra) սm ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5

IPC-TM-650

2.3.17
Matte side(Rz) um ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5
Tensile Strength R.T.(23℃) Mpa ≥300 ≥300 ≥300 ≥300 ≥300

IPC-TM-650

2.3.18
H.T.(180℃) Mpa ≥200 ≥200 ≥200 ≥200 ≥200
Elongation R.T.(23℃) ％ ≥4 ≥5 ≥6 ≥8 ≥10

IPC-TM-650

2.3.18
H.T.(180℃) ％ ≥5 ≥6 ≥7 ≥8 ≥8
Peel Strength(FR-4) N/mm ≥0.8

IPC-TM-650

2.4.8
Ibs/in ≥4.6
Pinholes&porosity Number No

IPC-TM-650

2.1.2
Anti-oxidization R.T.(23℃) 180days /
H.T.(200℃) 60 Minutes /

Standard Width 1295mm,max width 1380(±1)mm,May according to the customer request tailor.We test the peel strength with PI ,please reconfirm with your pp.
