Graphene Thermal Conductive Film Rolled Copper Sheet , 12um 18um Copper Foil Roll
Graphene Thermal Conductive Film Rolled Copper Sheet , 12um 18um Copper Foil Roll
Specifications
Brand Name :
JIMA
Model Number :
RACU-HC
Certification :
SGS, ISO,Reach, RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1200 Ton per month
Delivery Time :
7-15 days
Packaging Details :
Wooden Box
Purity :
99.95%
Inter Diameter :
76 Mm，152 Mm， 3 Inch，6 Inch
Application :
Graphene
Standard :
IPC-TM-650
thickness :
12um 18um 25um 35um 50um​
Description

Rolled Copper Foil For Graphene thermal conductive film and Flexible graphene smartphone 12um 18um 25um 35um 50um

Detail :

>. Application :

1. Graphene,

2. Graphene thermal conductive film;

3. Flexible graphene smartphone

> thickness:12um 18um 25um 35um 50um

> width: can be customize

> Sample can be supply

> Lead time: 7～15days

Typical properties

Classification

Unit

12μm

18μm

25μm

35μm

50μm

1

Cu Purity(Grade: C1020)

%

Min.99.99

2

Thickness Tolerance

μm

±0.3

±0.4

±0.4

±0.5

±0.8

3

Tensile Strength

N/mm2

440-470

450-480

450-470

440-460

410-450

4

Elongation Rate

%

1.0-1.2

1.0-1.2

1.1-1.3

1.1-1.4

1.1-1.5

5

Surface Roughness

μm

Max.0.08

6

Surface Quality

No Wrinkle,No Color Difference,No Scratche,No Pit and Salient Point

7

Storage Condition

Temperature≤25°C, Relative Humidity≤60%, 180 days

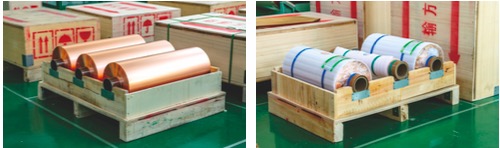

Products Photos & Package Photos

Graphene Thermal Conductive Film Rolled Copper Sheet , 12um 18um Copper Foil Roll

Graphene Thermal Conductive Film Rolled Copper Sheet , 12um 18um Copper Foil Roll
