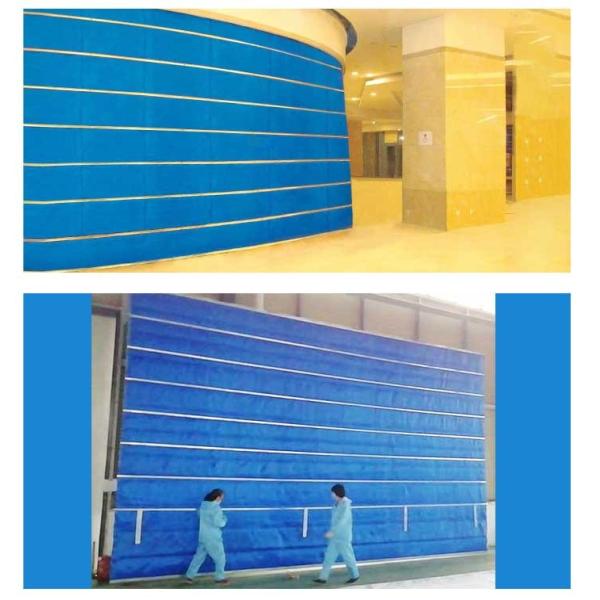

12m Double Curtain Roll Up Door Fire Rated Inorganic Cloth For Shopping Mall
12m Double Curtain Roll Up Door Fire Rated Inorganic Cloth For Shopping Mall
Specifications
Brand Name :
YUOU
Model Number :
Yuou-Inorganic fire roller shutter
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$200.00 - $1000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden case
Product name :
Double Curtain Fire Rated Safety Inorganic Cloth Roller Shutter Door For Shoppingmall
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Material :
PVC curtain
Curtain layer :
4 layers
Fire rated time :
180 minutes
Running speed :
2m/min-7.5m/min
Fire rating :
3 hours
Wind resistance :
50-66kp(30m/s)
Position :
Exterior
Hood cover box :
1.0mm galvanized steel
Warranty :
1 year
HS code :
85308000
Description

Double Curtain Fire Rated Safety Inorganic Cloth Roller Shutter Door For Shoppingmall

Application

Inorganic fabric fire shutter door's fire limit is greater than 3h. Widely used in shopping malls, hotels, office buildings,
underground garages and other public places divided into fire zones.It has better protection against fire, smoke and heat.

Technical Data
Model Inorganic cloth fire proof roller shutter door
Power supply AC380V, 50HZ, control power DC24V
Wind pressure 490-1177Pa (14m/s)
Max. door size

Roller type: 12m*12m or customized
Opening and closing speed 10-710m/min
Motor Chinese top brand
Fire rated time ≥3 hours
Surface finishing Finished
Opening way Electric/Manual chain
Smoke leakge ≤0.12M3/(SQM/MIN)
Certificate Chinese CCC
Warranty 1 year

Standard:

Comply with China National standard GB14102-2005 Fire Roller Shutter Door

Door curtain:

A. The curtain is made of four layers of fireproof material, that are glass fiber cloth, aluminum silicate cotton, ceramic fiber cloth and radiation protection cloth.
B. Double rail and double curtain structure, with better heat and smoke resistance performance.

Guide rail:

2.0mm thick galvanized steel. Surface is galvanized

Motor:

(Fireproof) Industrial grade motor specially used for Roller Shutter Door. The best brand of motor in China Power supply:380V/50HZ,Power: 0.3-1.5KW. Wore temperature:-25 ℃-55℃. Low noise.

Control panel:

Fireproof control box specially used for Roller Shutter Door. The best brand of control panel in China ALAND. Through it , user can control the door manually for UP,DOWN,STOP. And it can also be connected with Fire Control Center, or with smoke sensor or temperature sensor, to control the door movement automatically in case of fire accidents.

Hood cover box:
1mm power coated galvanized steel
Export Packing stadard:
Multi-layer plastic bubble film pack all the parts carefully.
Carton box to make all the little parts safe and clearly.
Put all the packaged parts into the Export wooden box, and seal the wooden box
