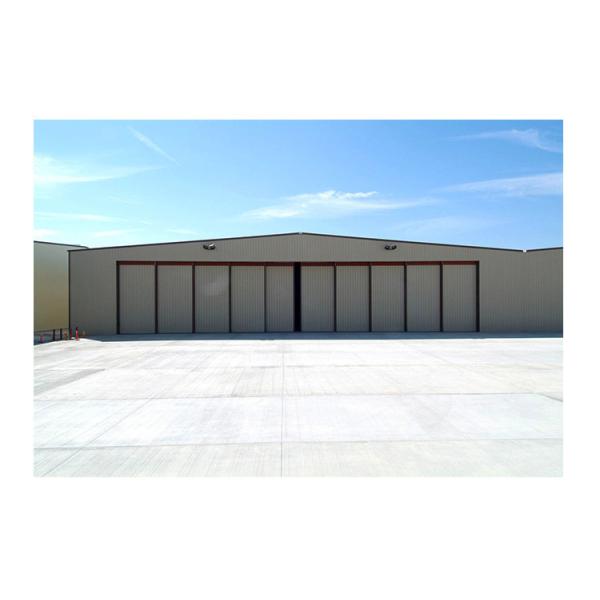

Horizontal Sliding Aircraft Hangar Door Heavy Duty Aluminum Alloy 22m Height Finished
Horizontal Sliding Aircraft Hangar Door Heavy Duty Aluminum Alloy 22m Height Finished
Specifications
Brand Name :
YUOU
Model Number :
Yuou-Hangar door
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$20000.00 - $80000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
15 work days
Packaging Details :
Standard export wooden case
Product name :
Horizontal Heavy Duty Aluminum Alloy Designs Sliding Airship Hangar Door
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Door materi0.5-0.8mmal :
Steel + PU foam
Max. Door Opening :
100(W)x22(H)m
Surface finishing :
Finished
Opening speed :
6-18 m/min
Working Temperature :
-40 to 50 degrees
Power Supply: :
3-Phase 380V/50HZ
Open style :
Sliding folding
Position :
Exterior
Package :
Standard wooden case
Application :
Steel workshop
Description

Horizontal Heavy Duty Aluminum Alloy Designs Sliding Airship Hangar Door

Shipment:

The door skeleton truss will be cut into two pieces. To make loading and unloading easier, a 40-foot Top-open container is suggested to use. The goods will be loaded and unloaded from the top of container, as shown in following photos. These doors take one or more 40-foot Top-open container and one or more 40-foot regular container for shipment.

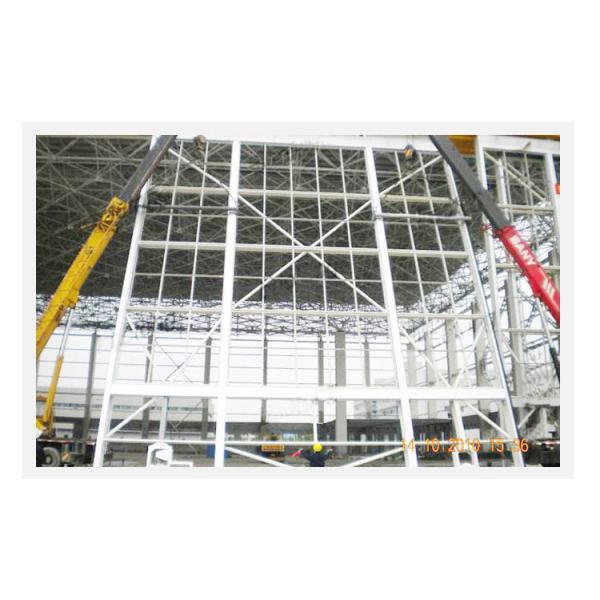

Installation:

The segments of truss will be assembled at site. Totally it takes 30 work days with 45 local workers to install this door. We will send four engineers to guide and install together with local workers.

Specifications(for reference only):

Door hole size Customized
Power supply 380V±10V 50HZ
QTY of door leaf 1 pcs or more
Door leaf size Customized
Cladding material

Corrugated steel plate of both sides.

(Optional: PU sandwich panel with surcharge)
Allowable error of steel skeleton

Height:0~+5 ；Width:±5；Diagonal:±8；Horizontal beam interval:±2；

Plane deflection:5mm
Power of motor(KW)of each door leaf 0.75-1.5KW
Moving speed(m/min) High speed 20m/min,Low speed 6m/min,Manual speed 3m/min
Interval between guide rails 100-556mm
Interval between door leafs 50-300mm
Weight of each door leaf 100Kg-5000KG
Weight of steel of each door leaf 100KG-2500Kg
Control system Master control+ Sub-control(PLC program)
Sound insulation 15-23dB
Heat transfer coefficient 1.623W/ m2℃
Work temperature -40℃～50℃
Air tight Class 3
Water tight Class 3
QTY of small man door 1 set(fire rated 90min)
Basic wind pressure (kN/m2) 0.65kN/m2(wind speed 30m/S)
Deflection of extreme wind pressure 1/365(<1/300)
Thickness of dry film coating 260um(75+125+60)
Seismic intensity Class 7
Wind resist 0.55KN/ ㎡-0.85KN/㎡

Horizontal Sliding Aircraft Hangar Door Heavy Duty Aluminum Alloy 22m Height FinishedHorizontal Sliding Aircraft Hangar Door Heavy Duty Aluminum Alloy 22m Height Finished
