Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
Specifications
Brand Name :
YUOU
Model Number :
Yuou-high speed-Spiral
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$2000.00 - $3000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden case
Product name :
Exterior Automatic Rigid Hard Material Aluminum Alloy Spiral Roller Shutter Door
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Max. door size :
8(W)x8(H)m
Slat material :
Aluminum alloy
Slat thickness :
43mm
Motor :
Servo type
Open style :
Rolling
Surface finishing :
Finished
Wind Resistence :
35m/S (Class 12)
Installation Area :
Garage, workshop
Color :
White, blue. yellow, red
Open way :
Automatic
Description

Exterior Automatic Rigid Hard Material Aluminum Alloy Spiral Roller Shutter Door

Installation area

Aluminum alloy high speed doors are applied for areas with high demand of both security, high-strength, thermal insulation and highrunning speed. Widely used in underground garages, factory exterior, warehouse exterior.

Technical Data
Max. dimension width * height 8000mm*8000mm
Power supply 220V/380V, 0.75-1.5KW, 50/60HZ
Max. opening speed 2.0m/s
Max. closing speed 1.0m/s
Control box IP55
Motor and controller Italy servo technology
Safety device Photo sensor, airbad sensor, light alarm
Wind resistance Beaufort scale 12 (35m/s)
Working Temperature -25 °C to 65 °C

1. Panels: thermal insulated and good wind resist performance

43mm double layer (0.7mm/layer) aluminum alloy sandwich panel, foaming density 40kg/m3, high quality nylon wheels and 2.5mm thickness aluminum alloy hinges.

2. Frame and rails

Frame material: 2.5mm powder coated galzanized steel or 304 Stainless steel.

Rails: circular rail for enough space condition or elliptical rail for limit space contion

3. Motor and Control system

Italy servo technology control system. With more accurate controlling of motor running than traditional encoder control. And Human-Machine Interface display is equipped, to make the daily operation and setting much easier and friendly. There is Fault Self-checking program and shows error codes when there is fault.

4. Emergency devices

It can be easily opened by hand with this device under emergency situations like power failure or electrical faults.

5. Operation methods

Vehicle loop detector, Radar sensor, Push button, Pull switch, Remote control.

6. Safety performance

A. Safety photo cell sensor.

When there is human or vehicle under the door, the door will stop closing and get up automatically. This will avoid accident collisions.

B. Safety bottom airbag sensor

When the bottom bar of the door touches something, it will stop closing immediately and get up automatically.

C. Alarm light

When the door opens or closes, the lamp will keep flashing to warn passing human or vehicles.

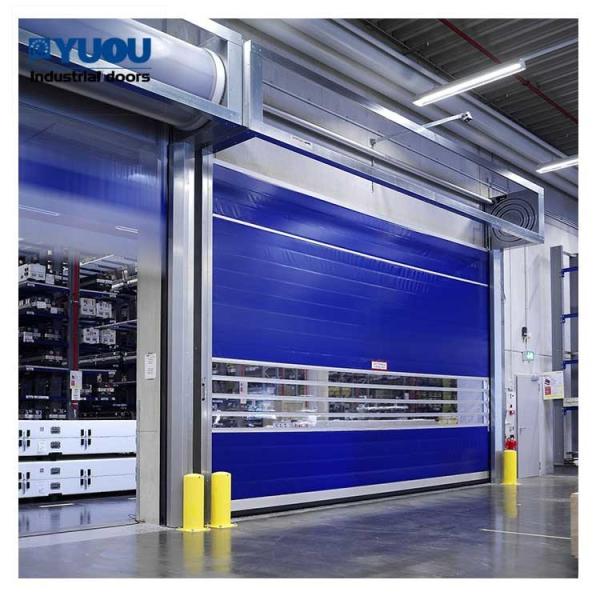

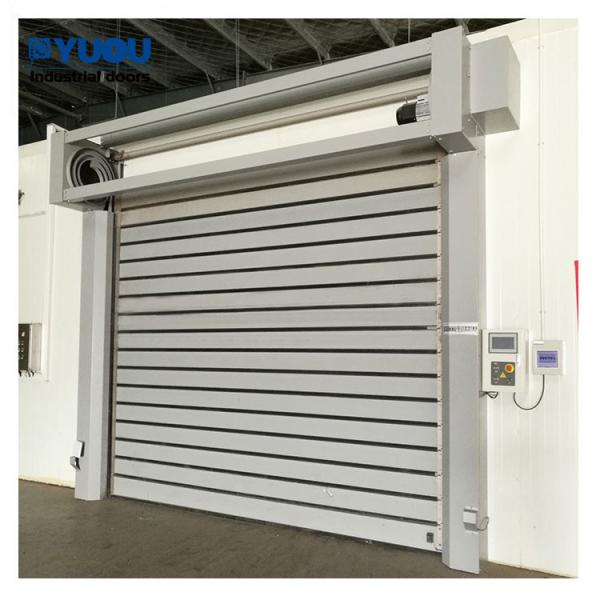

Product real photos

Exterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/sExterior Automatic Shutter Wind Resistant High Speed Door 8m Aluminum Alloy 35m/s
