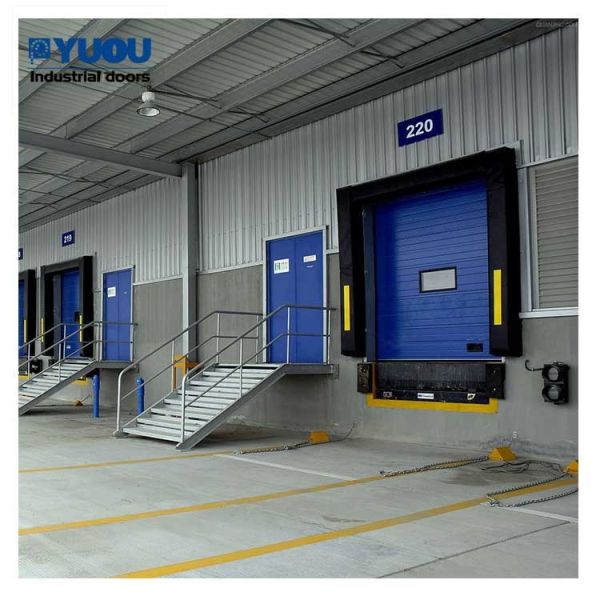

Industrial Sectional Overhead Door Thermal Insulation 75mm 100mm thickness
Industrial Sectional Overhead Door Thermal Insulation 75mm 100mm thickness
Industrial Sectional Overhead Door Thermal Insulation 75mm 100mm thickness
Industrial Sectional Overhead Door Thermal Insulation 75mm 100mm thickness
Specifications
Brand Name :
YUOU
Model Number :
Yuou-Sectional
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$500.00 - $1000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden case
Product name :
Industrial Thermal Insulation Sectional Overhead Garage Door For Loacking Dock
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Lifting method :
Standard, high, vertical
Panel thickness :
40mm/50mm/75mm/100mm
Panel material :
Steel plate + PU foam
Surface finishing :
Finished
Open style :
Electrical or manual
Color :
White, blue. yellow, red
Hardware :
Industrial class
Option :
Window, pedestrian door
Application :
Warehouse, workshop
Service life :
15 years
Description

Industrial Thermal Insulation Sectional Overhead Garage Door For Loacking Dock

Technical Data
Max. dimension width * height 12000mm*8000mm
Opening and closing speed 20-40cm/s
Panel material steel plate + PU foam
Lifting method Standard lifting, high lifting, vertical lifting
Wind resistance 28-35m/s (Class 10-12)
Operation method Control box, remote control
Trade Galvanized steel
Emergency operation Manual hoist chain if power failure
Trademark Yuou

1. Panel material construction

Steel-PU foam-steel, sandwich panel, double layer 0.4mm steel plate, total thickness 40mm standard

2. Section style

Finger-protection or non finger protection style are optional

3. Good seals

Sealing stripe built in around so can prvent wind, sand, rainwater to avoid accorosion

4. Accident-dropping safety device

Equipped with dropping avoiding steel cord at the bottom, to secure the accident dropping within 5cm

5. Track

Single track design: suitable for headroom distance ≧350mm

Double track design: suitable for lower headroom ≧200mm

6. Spring broken safety device

7. Spring axis

Industrial class 25.4mm steel bar

Description

Industrial Overhead Sectional Door is slide-running design. Door panels are connected end to end through C-type rails. Whole door body can bend flexibly and slide along guide rails with different bending shapes. It can be fit onto various kinds of door holes. Thus, it is very widely used in all kinds of factories, logistics warehouse, and garages. Industrial Sectional Overhead Door Thermal Insulation 75mm 100mm thicknessIndustrial Sectional Overhead Door Thermal Insulation 75mm 100mm thickness
