IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S
IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S
IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S
IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S
Specifications
Brand Name :
YUOU
Model Number :
YUOU-high speed door-8
Certification :
ISO9001
Place of Origin :
china
MOQ :
1PCS
Price :
USD3000-4000/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C,
Supply Ability :
1000set /per month
Delivery Time :
10-15days
Packaging Details :
Carton packing or export wooden box packing
Product name :
Industrial Automatic PVC Thermal Insulated Freezer Room High Speed Fast Acting Overhead Rapid Roll Up Door for Cold Storage
after-sales service :
Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other
Open style :
Automatic
Door material :
Steel,PVC
Application :
industrial
Surface treatment :
Powder Coating
Special door type :
automatic special rolling door
Production time :
10-15days
Description

Industrial Automatic PVC Thermal Insulated Freezer Room High Speed Fast Acting Overhead Rapid Roll Up Door for Cold Stor

Freezer High Speed Doors. The soft curtain anti-collision cold storage door represents the professional level of the world industrial door. It has high reliability and practicability. Its fast operation can save cooling power consumption and save users nearly 14000 USD of electricity every year. In today's cold chain industry. It has a unique position in the field, and a reasonable mechanism design reduces the failure rate by 99.99%.

Technical Data:

Max dimension: 8000mm wide*8000mm high
Max opening Speed: 2.0m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V,50/60HZ,
or 3-phase 380V±10%V,50/60HZ
Protection level of electric: IP55
Control system: Servo type
Driving system: Servo motor
Thermal conductivity factor: 1.9W/(m2·K)
K-VALUE 0.4W/M2K
Sound insulation factor: R=25dB
Available colors of slat: Grey, Blue, White, Aluminum, Golden

Door Details:

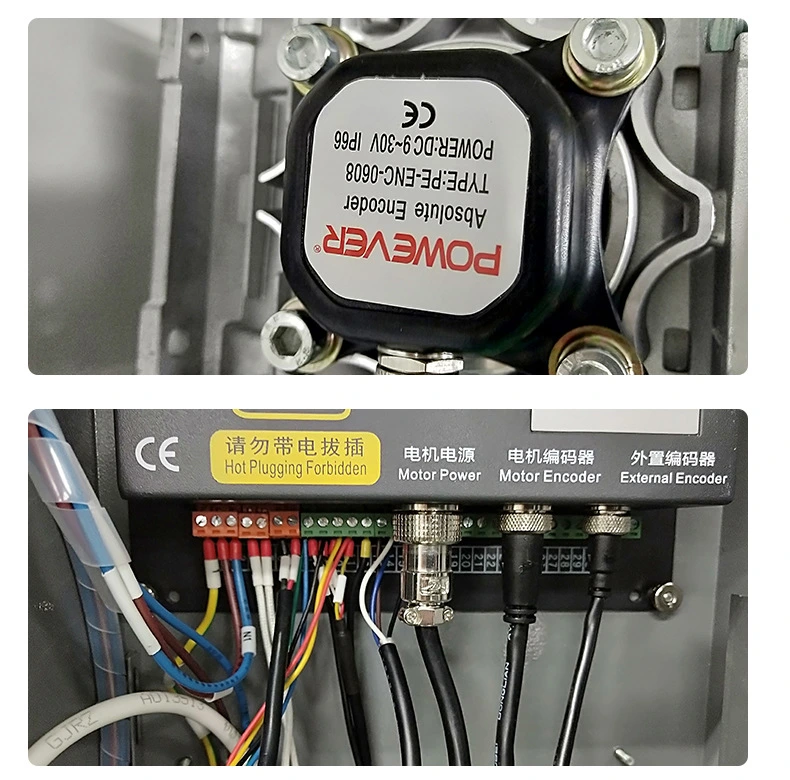

1. Driving system features:

Stable and easy to do the wire connection.

The motor and control box are perfectly compatible, its a complete whole set with the advanced Italian servo technology.
This new integrated design, Improve the electromagnetic interference existing in the complex wiring of the original PLC+ inverter + encoder, avoiding the fault caused by the wiring and plug.
Soft open and close, make the door have great work life.
IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S

Easy to operate

The interface control panel will make the door more easy to adjust ,it can realize all kinds of function by adjust it.
IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S

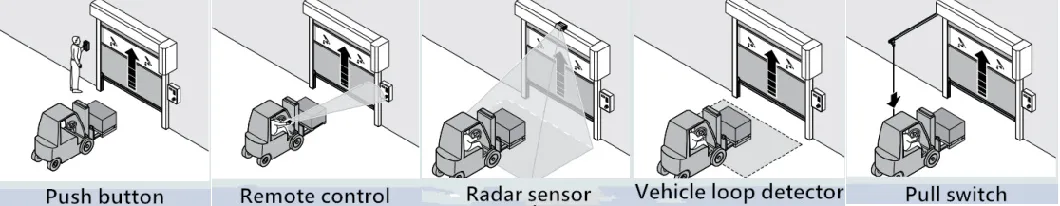

Different operation methods to meet different needs of the customer.

IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S

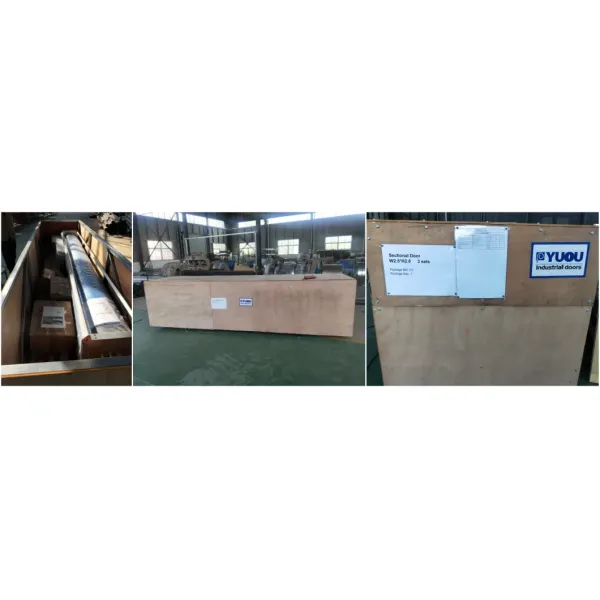

Export Packing stadard.

1. Multi-layer plastic bubble film pack all the parts carefully.
2. Carton box to make all the little parts safe and clearly.
3. Put all the packaged parts into the Export wooden box, and seal the wooden box.

IP55 Industrial Fast Acting Rapid Roll Up Doors PVC Thermal Insulated 2.0M/S
