Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
Specifications
Brand Name :
YUOU
Model Number :
YUOU-high speed door-8
Certification :
ISO9001
Place of Origin :
china
MOQ :
1PCS
Price :
USD2200-3000/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C,
Supply Ability :
1000set /per month
Delivery Time :
10-15days
Packaging Details :
Carton packing or export wooden box packing
Product name :
Fast Speed Fabric Soft Curtain Rolling Up zipper PVC Folding Doors
after-sales service :
Online Technical Support, Onsite Training, Onsite Inspection, Return And Replacement, Other
Open way :
remote control.
Motor :
SERVO
Size :
As customer's request
Application :
garage/commercial shop/factory/warehouse.
brand :
YUOU
Description

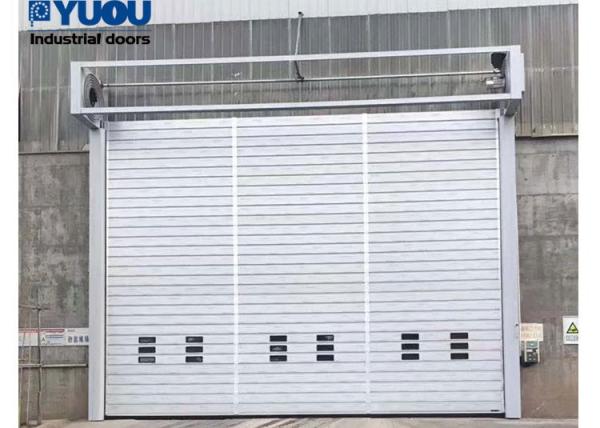

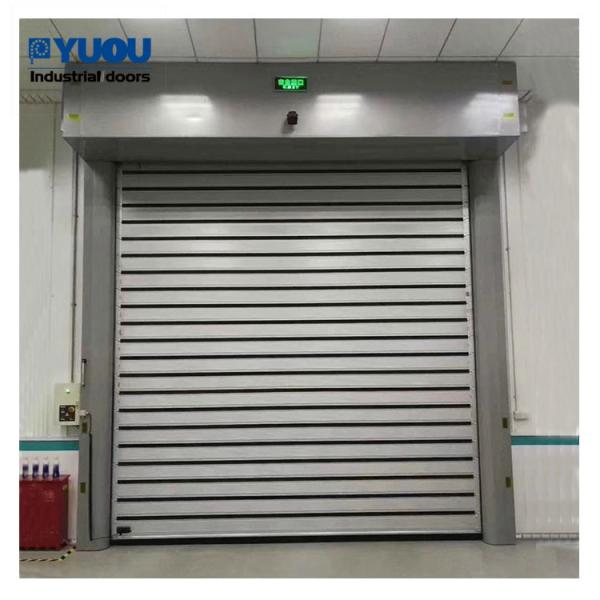

Eco Friendly Modern Industrial Auto Rapid Roll-up Door

Technical Data:

Max dimension: 8000mm wide*8000mm high
Max opening Speed: 2.0m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V,50/60HZ,or 3-phase 380V±10%V,50/60HZ
Protection level of electric: IP55
Control system: Servo type
Driving system: Servo motor
Thermal conductivity factor: 1.9W/(㎡·K)
K-VALUE 0.4W/M2K
Sound insulation factor: R=25dB
Available colors of slat: Grey, Blue, White, Aluminum, Golden

1. Burglarproof and excellent thermal instalation:

The aluminum alloy rapid door panel is made of a double-layered aluminum plate at a time, and the surface is fine pressed stripe, which is anodized and organic colored, and filled with intermediate polyurethane foam. The middle internal broken bridge design can increase the heat preservation effect, prevent the indoor and outdoor temperature loss, and save energy. The surface of the door panel is subjected to 5 layers of organic coloring treatment, which greatly improves the corrosion resistance.

2. Torsion spring balance system: inbuilt into the side guide rails. It counteracts the door weight and prolongs working life of motor by reducing its load.

3. Emergency release device. It can be easily opened by hand with this device, under emergency situations like power failure or electrical faults.

4. Different color can choose.

Full clear vision panel slats ,more beautiful.

Modern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m WidthModern Rapid High Speed Roller Shutter Door Auto 380V Eco Friendly IP55 8m Width
