Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
Specifications
Brand Name :
YUOU
Model Number :
Yuou-Hangar door
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$20000.00 - $80000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
15 work days
Packaging Details :
Standard export wooden case
Product name :
Industrial Large Structural Framework Buildings Electric Army Airplane Sliding Hangar Door
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Panel steel thickness: :
0.5-0.8mm
Max. Door Opening :
100(W)x22(H)m
Steel Structure :
Galvanized steel
Door Material :
Steel + PU foam
Opening speed :
6-18 m/min
Working Temperature :
-40 to 50 degrees
Power Supply: :
3-Phase 380V/50HZ
Open style :
Sliding folding
Installation :
Aircraft, shipyard, research base
Package :
Standard wooden case
Description

Industrial Large Structural Framework Buildings Electric Army Airplane Sliding Hangar Door

Description

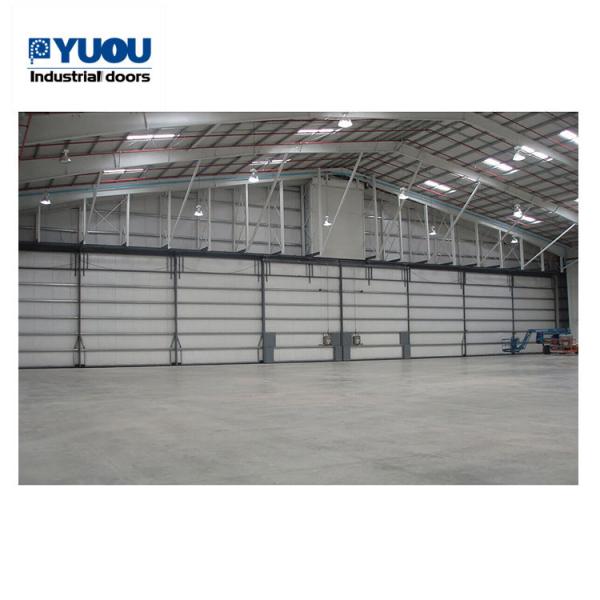

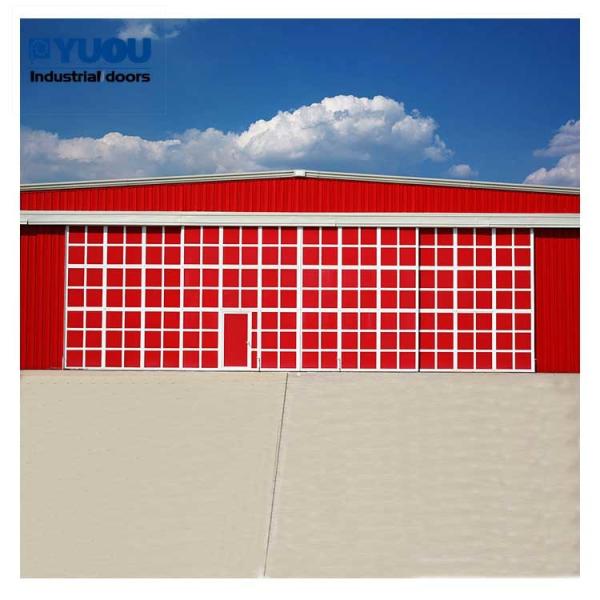

Sliding hangar Doors are specially designed for hangars of civil or military airports and aircraft factories. It can horizontally move between the top and bottom tracks. There are single, double and multi panels, which can be installed indoor or outdoor according to the actual surroundings. Hangar Door has various forms, specifications and panels.

Technical Data

Door hole size Customized
Motor power of each leaf 0.75-1.5KW, 380±10%V, 50HZ
Control system Master control + sub control (PLC program)
Sound insulation 15-23DB
Moving speed

Highest speed: 20m/min

lowest speed: 6m/min

speed by manual: 3m/min
Heat transfer coefficient 1.623W/ m2℃
Working temperature -40℃～50℃
Basic wind pressure 0.65kN/m2(wind speed 30m/S)
Packing details Plastic Film+ Foam Board + Bubble Pack + Strong Carton

1. Door panel:

A. Corrugated steel plate: 0.5-0.8 power coated galvanized steel.

B. PU sandwich panel: 0.4mm double layer steel with PU foam inside.

C. PC sunlight plate.

2. Steel structure

A. Professional mechanical analysis of steel structure

B. All materials are hot galvanized, with excellent corrosion resistance.

C. All joints are fully welded or bolted with high strength.

3. Guide rail

A. Ground rail: 18-24kg

B. Top guide rail: 150-250mm H shaped steel

4. Wheels

A. Bottom bearing rail: conical design, wheels will be adjusted position automatically.

B. Top guide rail: special cylindrical design, the wheels could be moved up and down to adapt the possible deformation of the door.

5. Motor and controller

A. SIEMENTS brand motor with clutch

B. Variable frequency driving system to realize slow start and stop

Large Industrial Hangar Doors 380V Electric Army 100m Width 23DB Soundproof
