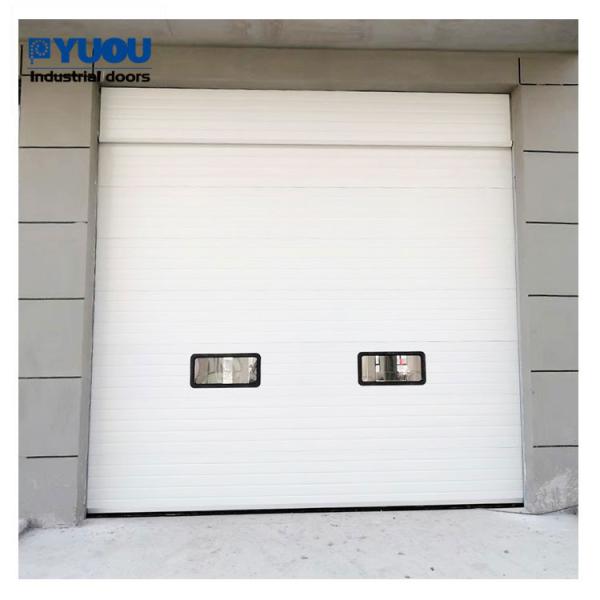

Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
Specifications
Brand Name :
YUOU
Model Number :
Yuou-Sectional
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$500.00 - $1000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden case
Product name :
Thermal Insulation Industrial Automatic Overhead Sectional Garage Door
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Max. door size :
12(W)x8(H)m
Opening speed :
20-40cm/s
Panel thickness :
40mm PU foaming
Plate material :
Steel plate
Surface finishing :
finished
Type :
Industrial doors
Color :
White, blue. yellow, red
Hardware :
Chinese top brand
Design Style :
Industrial
Open way :
Automatic or manual
Description

Thermal Insulation Industrial Automatic Overhead Sectional Garage Door

Technical Data
Max. dimension width * height 12000mm*8000mm
Motor and controller Chinese No.1 brand motor ''xianfeng''
Opening and closing speed 20-40cm/s
Available door panel thickness 40mm/50mm/75mm/100mm/back rib panel
Lifting method Standard lifting, high lifting, vertical lifting
Wind resistance 28-35m/s (Class 10-12)
Operation method Electrical/manual
Insulation level 0.38W/M°C
Water tightness 30Pa
K value 1.5W/M2.K
Thermal conducivity ≦ 0.033W/M.K

1. Door panel

A. Two layer 0.4mm powder coated galvanized steel plate, PU foaming density 48±2kg/m3
B. Surface printing layer: 30um
C. Total thickness: 40mm (standard), 50mm/75mm/100mm(optional)

2. Industrial class motor and controller

Power supply :380V/50Hz/3 phase or 220V/50HZ/1 phase

Output power:150W to 2500W ； inbuilt controlling program securing smooth movement . IP55.

Equipped with fast-action brake and accurate mechanical limit

Inbuilt with Thermal overload protector

With manual chain to open or close the door during power failures

With high-grade lubricate grease, no need daily maintenance

Controller with UP/STOP/DOWN/EMERGENCY BUTTONS and can be connected with safety sensor and remote control

3. Balance spring

Spring brake device :anti-broken

Service life:100 thousand opening and closing

Driving force:140N

Chosen according to door size and ,weight and lifting pattern.

4. Accident-dropping safety device

Equipped with dropping avoiding steel cord at the bottom, to secure the accident dropping within 5cm

5. Guide rail

Special design three angle wheel brace secure smooth rolling of wheel

Noise level ≤60db

6. Periphery sealing rubber

Sealing rubber is installed on to top, bottom and periphery, with features of cold resistant and anti-broken

7. Optional parts

Small door, windows and remote control can be optional

Product usage

Sectional doors are widely used in areas with high cleanliness requirements, such as factories, military, medicine, food, electronics, Printing, supermarkets, etc. The doors have a beautiful appearance, with features of high strength, low noise and insulation properties.Thermal Insulation Sectional Overhead Door High Lift 12m width 50mm thicknessThermal Insulation Sectional Overhead Door High Lift 12m width 50mm thickness
