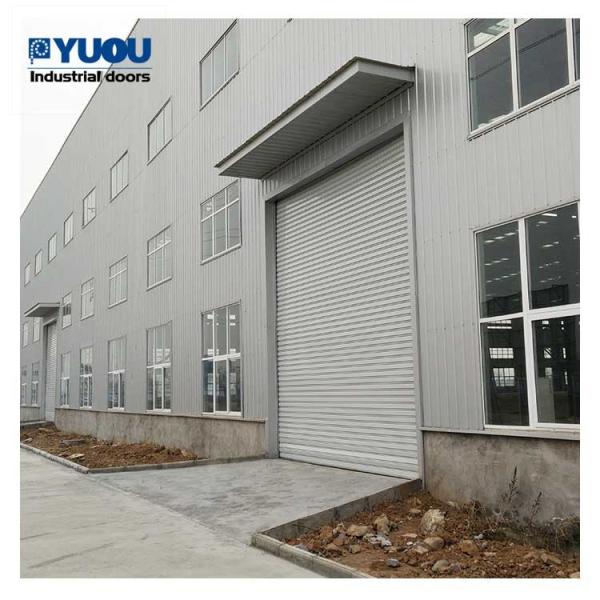

Stainless Steel Roller Shutter Door 12m Wind Resistant Galvanized 1.0KW
Stainless Steel Roller Shutter Door 12m Wind Resistant Galvanized 1.0KW
Specifications
Brand Name :
YUOU
Model Number :
Yuou-Steel roller shutter
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
$200.00 - $1000.00/Piece
Payment Terms :
D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden case
Product name :
Factory Gate Wind Resistance Galvanized Steel Roll Up Shutter Door
After-sale Service :
Online technical support, Onsite Training, Onsite Inspection, Return and Replacement, Other
Max. door size :
12m(W)x12m(H)
Slat material :
Galvanized steel
Slat thickness :
0.8-1.2mm
Power supply :
220V/380V
Pedestrian Door :
Available
Open style :
Rolling
Wind resistance :
8-12level (24.5-32.6m/s)
Opening speed :
5-12m/min
Feature :
Wind lock and side lock device
Position :
Factory gate external
Description

Factory Gate Wind Resistance Galvanized Steel Roll Up Shutter Door

Technical Data

Main features:

automatic, fast opening and closing,good strength, wind-resistant, guard against theft, beautiful and making little noise

Application scope:

outer and inner door of all kinds of factories, garage and commercial buildings

Technical instruction:

① Motor: Professional industrial grade rolling door driving system, power supply voltage: 220V/50HZ or 380V/50HZ, motor power: 0.37 to 1.0KW; work temperature: -25 º C - 55 º C; low noise, with inbuilt over-heat protection device;

② Operation device: Standard: stainless burglarproof control box; Optional: remote control,with additional cost of USD50 each door.

③ Slats: 0.8-1.2mm thick galvanized steel; Standard color: original galvanized steel or white; Customized color as RAL Color List with additional cost.

④ Guiding rail: 1.5-2.0mm thick galvanized sheet; Standard color: original galvanized steel or white; Customized color as RAL Color List with additional cost.

⑤ Sealing structure: There is EPDM weather seal rubber at both side guide rails and bottom beam. This improves the air-tightness of the door by 30% and also reduce the noise and friction when the door running up and down.

⑥ Manual chain: stainless chain from motor , for opening the door by hand in case of electricity power failure and other emergency situations.

⑦ Top cover box (optional with additional cost): 0.8mm thick galvanized sheet; Standard color: original galvanized steel white; Customized color as RAL Color List with additional cost.
