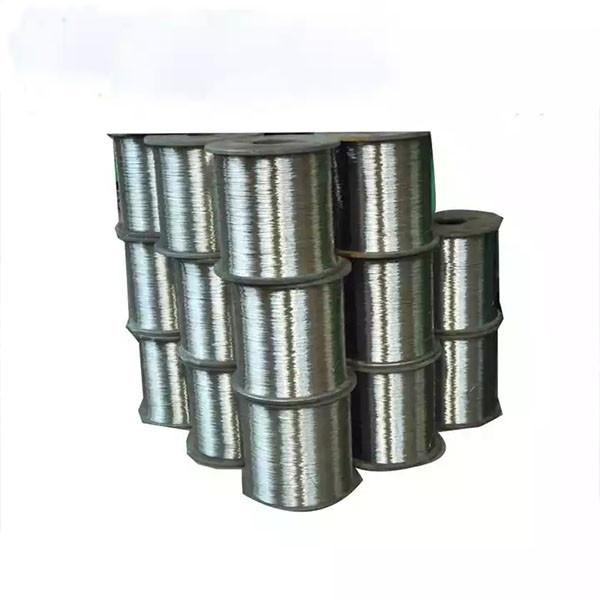

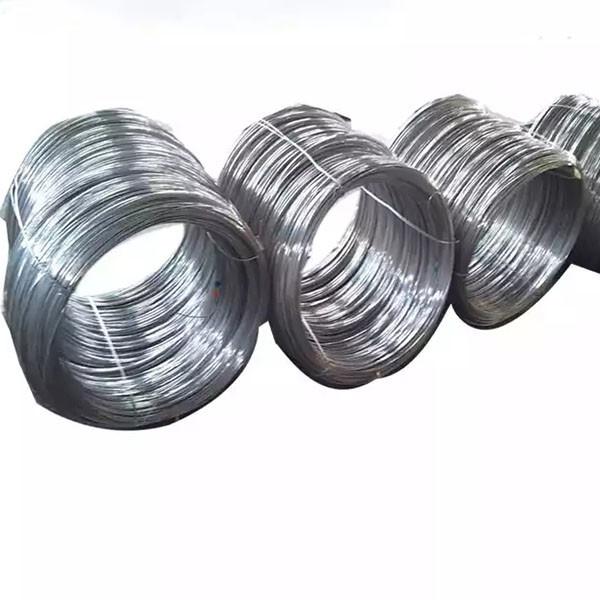

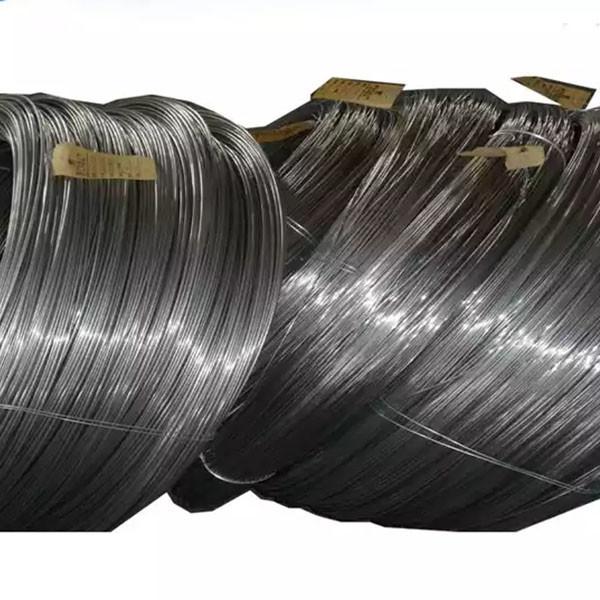

AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
Specifications
Brand Name :
XFT
Model Number :
ERNiFeCr-2
Certification :
SGS
Place of Origin :
Jiangsu ,China
MOQ :
15kg
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 kg per week
Delivery Time :
5- 8 working day
Packaging Details :
carton box
Customized :
OEM, ODM, OBM
Diameter :
0.8mm-5.0mm
Shape: :
Round Wire
Port: :
Shanghai,Ningbo,Shenzhen
Flux Content :
0.03%
Description

AWS A5.14 ERNiCrMo-3 Welding MIG Wire 1.0mm 2.0mm

ERNiCrMo-3 is used for welding nickel-chromium-molybdenum alloy (ASTM B 443, B 444, and B 446 having UNS number N06625) to itself, to steel, to other nickel-base alloys, for cladding steel with nickel-chromium molybdenum weld metal, and for welding the clad side of joints in steel with nickel-chromium-molybdenum alloy using the GTAW, GMAW, SAW, and PAW processes. This welding wire is recommended for applications where the operating temperature ranges from cryogenic to 1000°F [540°C].
A Military specification MIL-E-21562: Pb<0.010,“other elements”includes Pb, Sn, Zn
B B max 0.006% c similar as the EN82H或RH82H；
C content 0.03-0.10%
D Al and Ti max content 1.5%

More series:


ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCu-7,ERNi-1.

Standard: conform to AWS A514
Size: 0.8MM ,1.0MM ,1.2MM ,1.6MM ,2.4MM ,3.2MM ,3.8MM, 4.0MM ,5.0MM
Type: MIG(15KG/SPOOL) ,TIG(5KG/BOX) ,STRIPE

Usage:

used for welding the INCONEL ALLOY 600/825/25-6MO, and other stainless steel with Mo by the way of gas metal arc welding,tungstun-inert-gas arc welding.
Specification
Element
ERNi-1
ERNiCr-3
ERNiCrMo-2
ERNiCrMo-3
ERNiCrMo-4
ERNiCrFe-7
ERNiCu-7
ERNiFeCr-1
ERNiFeCr-2
C
0.15
0.1
0.1
0.1
0.02
0.04
0.15
0.01
0.08
Si
0.05
0.5
0.5
0.05
0.08
0.5
1.25
0.5
0.3
Mn
0.05
2.5-3.5
0.5
0.05
1
1
4
1
0.3
S
0.015
0.015
0.01
0.015
0.03
0.015
0.015
0.01
0.01
P
0.02
0.03
0.01
0.02
0.04
0.02
0.02
0.02
0.01
Cr
20-23
18-22
20-23
20-23
14.5-16.5
28.5-31
N/A
20-23.5
17-21
Ni
≥58
≥67
rest
≥58
rest
rest
62-69
38-46
50-55
Mo
8-10
N/A
8-10
8-10
15-17
0.5
N/A
2.5-3.5
2.8-3.3
V
N/A
N/A
N/A
N/A
0.35
N/A
N/A
N/A
N/A
Cu
0.5
0.5
N/A
0.5
0.5
0.3
rest
1.5-3
N/A
Co
N/A
N/A
0.5-2.5
N/A
2.5
N/A
N/A
N/A
N/A
Nb
3.5-4.15
2-3
N/A
3.5-4.15
N/A
0.01
N/A
N/A
4.75-5.5
Al
0.4
N/A
0.4
0.4
N/A
1.1
1.25
0.2
0.2-0.8
Ti
0.4
0.75
N/A
0.4
N/A
1
1.5-3
0.6-1.2
0.65-1.15
W
N/A
N/A
0.2-1
N/A
3-4.5
N/A
N/A
N/A
0.2-0.8
Fe
5
3
17-20
5
4-7
7-11
2.5
rest
rest
Rest
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5

ERNiCrMo-3 Size Range:
*Wire:
Dia 0.08-12mm
*Bar:
Dia1.0-300mm
*Strip(Coil):
0.2-20mm TCK x 10-300mm W
*Sheet:
min.0.7mm TCK x 1200mm W max.
*Tube & Forging & Machine Parts:
customized
*Welding wire:
0.8mm,1.0mm,1.2mm,2.0mm,2.4mm,3.2mm,3.8mm,4.0mm etc
*Welding Strip:
0.4-0.7mm TCK x 25-60mm W
AWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mmAWS A5.14 ERNiCrMo-3 Welding MIG Wire 0.8mm 1.0mm 2.0mm
company's business scope is: special alloy, non-ferrous metal processing, special welding wire, electric furnace accessories production, self-supporting and agent of various goods and technology import and export business. And mainly engaged in the R &D and production of special alloys such as high-temperature alloys, precision alloys, corrosion-resistant alloys and spraying alloys.
