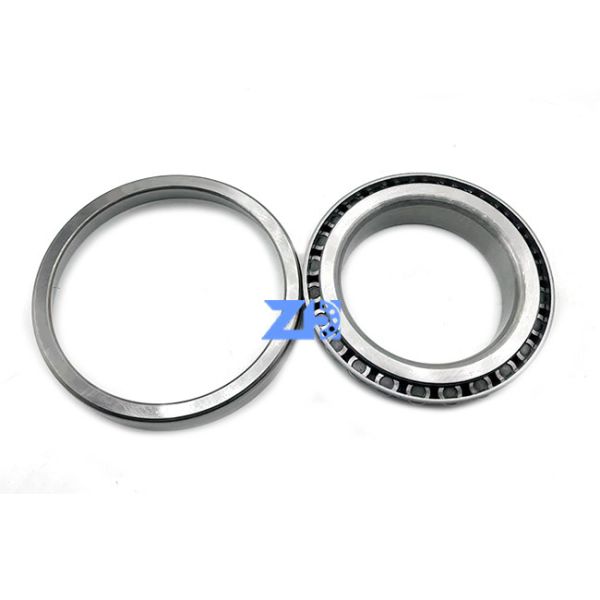

34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
Specifications
Brand Name :
ZH
Model Number :
34306/34478
Place of Origin :
China
MOQ :
1 pc
Price :
Based on your qty
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
1000 pcs per month
Packaging Details :
Neutral carton / wooden box
Product Name :
34306/34478
Quality :
Normal / High quality for your choice
Package :
1 pc/ ctn, neutral box
Design :
Standard
Structure :
Taper Roller Bearing
Material :
CHROME STEEL
Stock status :
Ready stock
Number Of Row :
single column
Description

34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes

Quick Details
Product Name 34306/34478
size 77.788*121.442*24.608mm
Number Of Row single column
MOQ 1 PC
Price terms FOB / EXW / CIF
Payment Terms T / T, L / C, Western Union, Paypal
Delivery Time About 5 - 8 working days after payment is received
Shipping methods By Sea, Air or DHL / FEDEX / TNT / EMS

SF2812VPX1 180BA-2256 SF4007PX1 SF4815VPX1
140BA-18 BA246-2 SF4007PX1 240BA32S1/SF4860
SF3240 R25/26 SF4019PX1 SF4852PX1
HS05154 R25/26 BA200-6A(SF4021) BA245-2
BA135-6(135BA170) SF3240 SF3227PX1/SF3215 245BA35
BD155-6 BA195-3 165BA210/AC3321 BA246-1SA

34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes

Dimensions

d - Bore

 3.0625 in77.788 mm

D - Cup Outer Diameter

 4.7812 in121.442 mm

B - Cone Width

 0.9060 in23.012 mm

C - Cup Width

 0.6875 in17.463 mm

T - Bearing Width

 0.9688 in24.608 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 0.14 in3.600 mm
r - Cup Backface "To Clear" Radius2 0.08 in2.03 mm

da - Cone Frontface Backing Diameter

 3.31 in84 mm

db - Cone Backface Backing Diameter

 3.58 in91 mm

Da - Cup Frontface Backing Diameter

 4.60 in116.10 mm

Db - Cup Backface Backing Diameter

 4.33 in109.98 mm

Ab - Cage-Cone Frontface Clearance

 0.1 in2.5 mm

Aa - Cage-Cone Backface Clearance

 0.09 in2.3 mm
a - Effective Center Location3 0.06 in1.5 mm

34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes

About us:

We have our own factory special for bearing, and also good supply of all other excavator parts.

ZhongHong bearing co., LTD. was established in 2004, with office in TianHe District Guangzhou city and factory in shandong province.
we are a company in combination of bearing Research & Development (R&D) ,Manufacturing and Import & Export. 70% of our products are exported to Europe, South America, Middle East, India and more than 10 countries in southeast Asia.
We adhere to the concepts of People-oriented and Quality first, focus on the standardization of production, and strict control of each process, striving to supply our clients with the best and most complete product lines, in preferential price and high efficiency, to meet all your demands.
In order to continuously improve the overall quality of staff and technical qualifiexcavatorions, we invested a lot in the technology and equipment modifiexcavatorion, purchased a large amount of high precision bearing manufacturing equipment and testing instruments. For example the high - precision machining production line, isothermal spherifiexcavatorion annealing furnace, salt bath quenching furnace and precision roll production line, all are equipped with complete inspection equipment.
Besides, we strictly follow the ISO/TS16949 quality management system.
Welcome friends from all over the world to visit and negotiate for cooperation.
34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes34306/34478 single row tapered roller bearings offer a low friction separable design during operation in metric sizes
