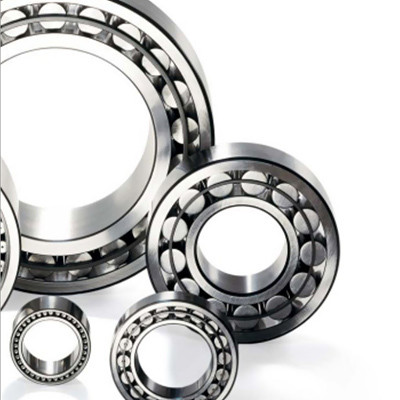

Wear Resistance Steel Ball Bearings , NTN C2218V Low Friction Bearings
Wear Resistance Steel Ball Bearings , NTN C2218V Low Friction Bearings
Wear Resistance Steel Ball Bearings , NTN C2218V Low Friction Bearings
Wear Resistance Steel Ball Bearings , NTN C2218V Low Friction Bearings
Specifications
Brand Name :
NTN
Model Number :
C2218V
Certifiexcavatorion :
ISO 16949
Place of Origin :
CHINA
MOQ :
1piece
Price :
negotiated
Payment Terms :
Western Union, T/T, D/P
Supply Ability :
500 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
ZH
product name :
Circle roller bearing
model :
C2218V
size :
155 mm *185 mm
Material :
High temperature bearing steel
Rolling element :
Steel ball
Sealing cover :
No seal
apply :
General purpose
cage :
Brass entity
Description

Circle roller bearing NTN C2218V

Part of the bearing specifiexcavatorion :

Principal dimensions( mm) Designation
d D B
85 120 35 C 4917 V
85 150 36 C 2217 KV
85 180 60 C 2317 K
85 150 36 C 2217
85 180 60 C 2317
85 120 35 C 4917 K30V
85 150 36 C 2217 K
85 150 36 C 2217 V
85 120 46 C 5917 V
90 125 35 C 4918 K30V
90 190 64 C 2318 K
90 125 35 C 4918 V
90 125 46 C 5918-2CS5V/GEM9
90 160 40 C 2218 KV
90 160 40 C 2218
90 125 46 C 5918 MB
90 190 64 C 2318
90 160 40 C 2218 V
90 160 40 C 2218 K
90 125 46 C 5918 V
95 200 67 C 2319 K
95 170 43 C 2219
95 200 67 C 2319
95 170 43 C 2219 K
100 140 40 C 4920 V
100 150 50 C 4020-2CS5V/GEM9
100 150 50 C 4020 V
100 180 46 C 2220 K
100 165 65 C 4120 K30V/VE240
100 140 40 C 4920 K30V
100 165 65 C 4120 V/VE240
100 165 65 C 4120-2CS5V/GEM9
100 165 52 C 3120 V
100 150 50 C 4020 K30V
100 180 46 C 2220
100 215 73 C 2320
100 150 67 C 5020 V
100 165 52 C 3120 KV
100 215 73 C 2320 K
110 170 60 C 4022 V
110 170 60 C 4022 K30MB
110 170 60 C 4022 MB
110 180 69 C 4122 K30V
110 200 53 C 2222 K
110 200 53 C 2222
110 180 69 C 4122-2CS5V/GEM9
110 170 45 C 3022 K
110 170 60 C 4022-2CS5V/GEM9
110 180 69 C 4122 V
110 170 60 C 4022 K30V
110 170 45 C 3022
120 180 60 C 4024 V
120 200 80 C 4124-2CS5V/GEM9
120 180 60 C 4024 V/VE240
120 180 60 C 4024 K30V
120 200 80 C 4124 K30V
120 180 60 C 4024 K30V/VE240
120 215 58 C 2224
120 215 76 C 3224 K
120 180 46 C 3024 V
120 180 46 C 3024 K
120 200 80 C 4124 V
120 180 46 C 3024 KV
120 215 58 C 2224 K
120 180 46 C 3024
120 180 60 C 4024-2CS5V/GEM9
120 215 76 C 3224
130 200 69 C 4026
130 210 80 C 4126 K30V/VE240
130 280 93 C 2326/VE240
130 210 80 C 4126 V/VE240
130 200 69 C 4026 V
130 200 52 C 3026 K
130 280 93 C 2326 K/VE240
130 200 69 C 4026 K30V
130 230 64 C 2226 K
130 200 69 C 4026-2CS5V/GEM9
130 230 64 C 2226
130 210 80 C 4126-2CS5V/GEM9
130 200 69 C 4026 K30
130 200 52 C 3026
140 210 69 C 4028-2CS5V/GEM9
140 250 68 C 2228 K
140 210 69 C 4028 K30V
140 225 85 C 4128 K30V/VE240
140 210 53 C 3028 K
140 250 68 C 2228
140 210 69 C 4028 V
140 225 85 C 4128 V/VE240
140 210 53 C 3028
140 225 85 C 4128-2CS5V/GEM9
150 225 56 C 3030 V
150 225 75 C 4030-2CS5V/GEM9
150 250 100 C 4130 V
150 225 75 C 4030 V
150 250 100 C 4130-2CS5V/GEM9
150 225 75 C 4030 K30V
150 250 100 C 4130 K30V
150 250 80 C 3130 K
150 225 56 C 3030 KMB
150 250 80 C 3130
150 225 56 C 3030 MB
150 270 73 C 2230 K
150 270 73 C 2230
150 225 56 C 3030 KV
160 270 86 C 3132 K
160 240 80 C 4032
160 270 109 C 4132-2CS5V/GEM9
160 270 109 C 4132 V
160 240 80 C 4032 K30V
160 270 109 C 4132 K30V
160 270 86 C 3132
160 240 80 C 4032 K30
160 240 80 C 4032-2CS5V/GEM9
160 240 60 C 3032 K
160 240 80 C 4032 V
160 290 104 C 3232 K
160 290 104 C 3232
160 240 60 C 3032
170 260 90 C 4034-2CS5V/GEM9
170 260 90 C 4034 K30V
170 280 109 C 4134 V
170 310 86 C 2234 K
170 260 90 C 4034 V
170 260 67 C 3034 K
170 280 88 C 3134
170 310 86 C 2234
170 280 109 C 4134-2CS5V/GEM9
170 280 109 C 4134 K30V
170 280 88 C 3134 K
170 260 67 C 3034
180 280 100 C 4036 V
180 300 96 C 3136 K
180 300 118 C 4136 K30V
180 300 96 C 3136
180 300 118 C 4136 V
180 300 118 C 4136-2CS5V/GEM9
180 280 74 C 3036 K
180 320 112 C 3236 K
180 320 112 C 3236
180 280 100 C 4036 K30V
180 280 74 C 3036
180 280 100 C 4036-2CS5V/GEM9
190 290 75 C 3038 K
190 320 128 C 4138 V
190 290 100 C 4038 K30V
190 320 104 C 3138 KV
190 290 100 C 4038-2CS5V/GEM9
190 340 92 C 2238 K
190 290 100 C 4038 V
190 320 104 C 3138 V
190 340 92 C 2238
190 320 128 C 4138-2CS5V/GEM9
190 290 75 C 3038
190 320 128 C 4138 K30V
1320 1600 280 C 48/1320 K30MB
1320 1600 280 C 48/1320 MB
1500 1950 335 C 39/1500 MB
1500 1950 335 C 39/1500 KMB

Cylindrical Roller bearing :

The roller and raceway surface of cylindrical roller bearing is line contact,so the bearing

has high carrying radial load capacity,applicable to carrying heavy load and shock load.

Besides,owing to its structure,it's easy to high accuracy processing,applicable to highrate

rotary.Inner ring and orter ring are separable,convenient for mounting and dismounting.

1 . Common type


Ring roller bearing is a new radial roller bearing.

This compact automatically self-aligning roller bearings s developed, the bearing design is unique, combined with the ability of the self-aligning spherical roller bearings and cylindrical roller bearing unlimited axial displacement ability, he can also have smaller cross-sectional area, and tend to have a needle roller bearing features .

CARB ring roller bearing is used in paper machine machinery, continuous casting machine, crushing machine machinery, grinding machine, conveyor belt, textile machinery, industrial transmission and other fields.

2. production range

Inner diameter :25 mm ~1250 mm

Outer diameter : 52 mm ~1750 mm

Height : 18 mm ~375 mm
