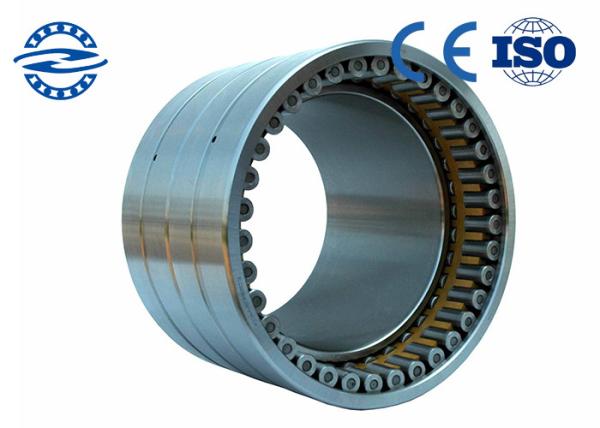

four-row cylindrical roller bearing 180 mm * 260 mm* 120 mm FC3652120
four-row cylindrical roller bearing 180 mm * 260 mm* 120 mm FC3652120
Specifications
Brand Name :
ZH NTN FAG
Model Number :
FC3652120
Certifiexcavatorion :
ISO9001，ISO14001
Place of Origin :
CHINA
MOQ :
1 piece
Price :
negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 PC per day
Delivery Time :
1-2 work day
Packaging Details :
carton package
product name :
Cylindrical Roller Bearing
weight :
20.2 KG
specifiexcavatorion :
180 mm * 260 mm* 120 mm
Cage :
Steel, Brass
Greese :
As you requirement
Row :
Four Row
Description

four-row cylindrical roller bearing 180 mm * 260 mm* 120 mm FC3652120

Four row cylindrical roller bearing is mainly used for cold and hot rolling mill , rolling mill machinery , and so on cogging mill bearings for separate structure , bearing ring and roller components can be separated easily , therefore , bearing cleaning , inspection or installation , dismantling are very convenient .

FC type

FC type bearings are made up of two outer rings and an inner ring . Each side of the outer ring has a middle side in the middle , and no side in the inner ring .

Product FC3652120 Four Row Cylindrical Roller Bearing 180x260x120 mm For Rolling Mill FC 3652120
Precision Rating ABEC1,ABEC3,ABEC5
Clearance C0,C2,C3,C4,C5 is available
Number of row Four row
Paypal Acceptable
OEM Accept
Vibration Level code V1,V2.V3
Material Gcr15
Seals Type Open
Mass 20.2 KG
Bore Size 180 mm
Outside Diameter 260mm
Thickness 120mm
Regular export packing Plastic drum+White box+ carton
industrial packaging or as your requiremen.
MOQ 1 pcs
Delivery Time 3-7 days after receiving your payment
Payment Terms L/C,T/T,Western Union, Paypal

other size

Size(mm) Limited Speed Bearing No. Mass(kg)
d D B Grease Oil Total Inner Ring
180 260 120 1800 2200 FC3652120 20.2 6.2
180 260 124 1800 2200 FC3652124 21 6.4
180 260 168 1800 2200 FC3652168 29.2 8.6
180 260 168 1800 2200 FCD3652168 29.2 4.26
180 265 180 1800 2200 FC3653180 34.2 10.1
180 265 180 1800 2200 FC3653180A 33.4 9.7
180 280 180 1700 2000 FC3656180 41 11
180 280 180 1700 2000 FC3645180A 40.9 10.5
190 260 124 1700 2000 FC3852124 19.1 6.61
190 260 124 1700 2000 FC3852124A 20.6 5.43
190 260 168 1700 2000 FC3852168 27.2 9.1
190 260 168 1700 2000 FC3852168A 25.7 7.5
190 265 124 1700 2000 FC3853124 20.8 7.1
190 270 168 1700 2000 FC3854168 30 9.1
190 270 170 1700 2000 FC3854170 30.5 9.1
190 270 170 1700 2000 FC3854170A 31.7 9.7
190 270 200 1700 2000 FC3854200 36.8 10.9
190 280 200 1700 2000 FC3856200 42.1 11.7
190 280 200 1700 2000 FC3856200A 42.1 16.2
190 290 190 1700 2000 FC3858190 44.9 11.6
200 250 200 1700 2000 FC4050200 22.3 7.5
200 270 170 1600 1900 FC4054170 28.3 9.6
200 280 152 1600 1900 FC4056152 29.5 8.6
200 280 170 1600 1900 FC4056170 32.7 9.6
200 280 170 1600 1900 FC4056170A 33.7 10.1
200 280 188 1600 1900 FC4056188 35.3 10.7


four-row cylindrical roller bearing 180 mm * 260 mm* 120 mm FC3652120
