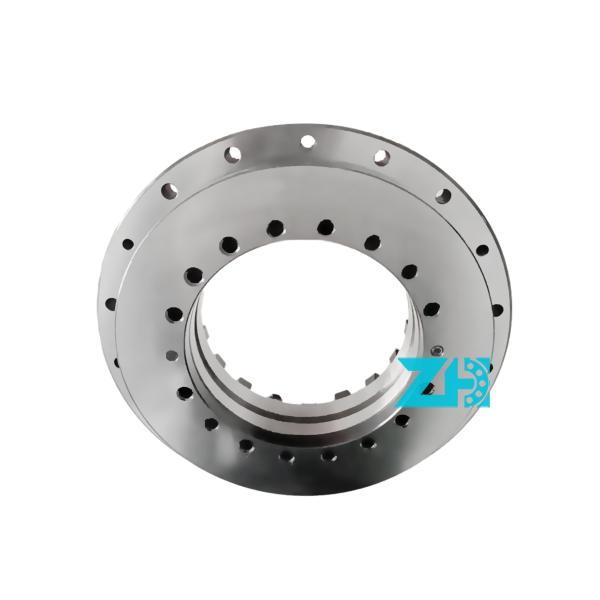

Crossed Roller Bearings YRT150 150*240*40mm
single-row crossed roller bearing slewing ring
Technical Parameters:
model | YRT150 |
Size(d*D*B) | 150*240*40mm |
Type | Crossed Roller Bearings |
Precision | P0/P6/P5/P4 |
Feature | Long Life,Stable Performance and Durable |
Material | GCR15 |
After-sales Service | Online Support Professional Service |
Stock | Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
Crossed roller bearings are manufactured to different accuracy classes, which define their dimensional and rotational accuracy. Common accuracy classes include P0, P6, P5, and P4, with P0 being the lowest and P4 being the highest. Higher accuracy classes are typically used in applications that require precise positioning and motion control.
The rotational speed at which a crossed roller bearing can operate effectively is known as the speed limitation. Factors such as bearing size, design, lubrication, and operating conditions determine the maximum allowable speed. Exceeding the speed limitation can lead to increased friction, heat generation, and premature wear.
Other bearing model catalog:
Type | Main dimensions | Basic load rating | |||
(Radial) | |||||
Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
d | D | H | C | C0 | |
mm | mm | mm | kN | kN | |
RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RB 11020 | 110 | 160 | 20 | 34 | 54 |
RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
RB 15030 | 150 | 230 | 30 | 100 | 156 |
RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
RB 18025 | 180 | 240 | 25 | 84 | 143 |
RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
RB 20030 | 200 | 280 | 30 | 114 | 200 |
RB 20035 | 200 | 295 | 35 | 151 | 252 |
RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
RB 25030 | 250 | 330 | 30 | 126 | 244 |
RB 25040 | 250 | 355 | 40 | 195 | 348 |
RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
RB 30035 | 300 | 395 | 35 | 183 | 367 |
RB 30040 | 300 | 405 | 40 | 212 | 409 |
