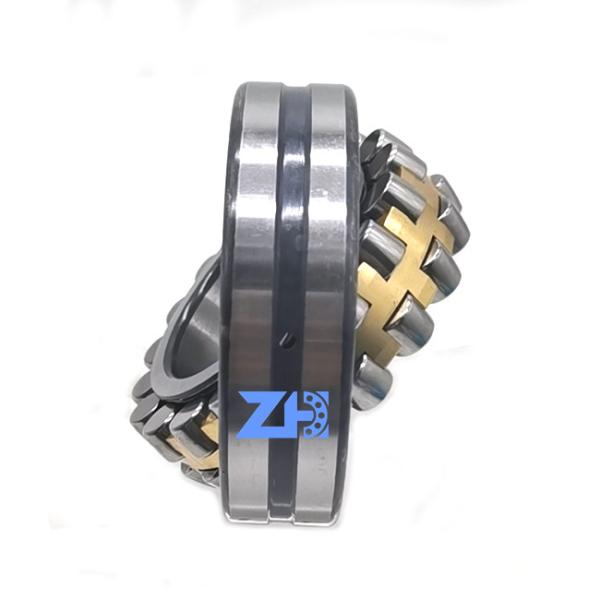

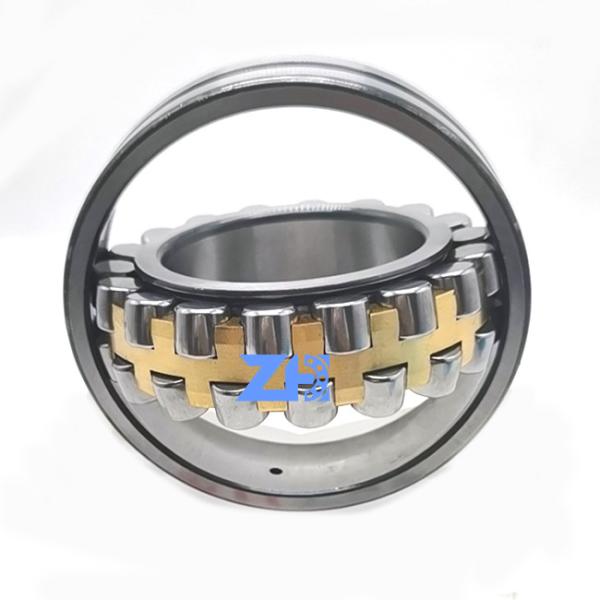

Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
Specifications
Brand Name :
ZH
Model Number :
22220CC
Certifiexcavatorion :
ISO9001:2008
Place of Origin :
China
MOQ :
1PC
Price :
interview
Payment Terms :
L/C,D/A,D/P,T/T, Western Union, Alibaba online payment,Paipal,etc.
Supply Ability :
30000 Set/Sets per Month
Delivery Time :
2-7 work days
Packaging Details :
Wooden case,By carton ,Customer Requirement
Certification :
IS09001
Product name :
Spherical Roller Bearing
Model :
22220CC
Material :
CHROME STEEL
Packaging :
standard sea-worthy packaging or as buyers' requirement.
MOQ :
1
Supply :
30000 Set/Sets per Month
Quality :
P0、P2、P4、p5、p6
Size :
100*180*46mm
Description

Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL

Product introduction(Find bearings to ZH, like a treasure knife with a hero, cast achievements to get more wealth)
22220CC Spherical roller bearing which made in our factory are inherently self-aligning and very robust. They have two rows of rollers which make the bearings able to carry heavy loads. So the spherical roller bearings can be used in many areas. Such as: Machine tools, electrical, railways, automotive, construction machinery and various kinds of professional machinery.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features


Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL

Dimensions

d
100 mm
 Bore diameter
D
180 mm
 Outside diameter
B
46 mm
 Width
d2
≈118 mm
 Shoulder diameter of inner ring
D1
≈159 mm
 Shoulder/recess diameter of outer ring
b
8.3 mm
 Width of lubrication groove
K
4.5 mm
 Diameter of lubrication hole
r1,2
min.2.1 mm
 Chamfer dimension



Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL

Abutment dimensions

da
min.112 mm
 Diameter of shaft abutment
Da
max.168 mm
 Diameter of housing abutment
ra
max.2 mm
 Radius of fillet

Calculation data

Basic dynamic load rating C
433 kN
Basic static load rating C0
490 kN
Fatigue load limit Pu
49 kN
Reference speed
3 400 r/min
Limiting speed
4 500 r/min
Limiting value e
0.24
Calculation factor Y1
2.8
Calculation factor Y2
4.2
Calculation factor Y0
2.8

Essential details
Type:
Roller
Structure:
Spherical
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Energy & Mining, Other
Brand Name:
gaobo
Model Number:
Spherical roller bearing
Precision Rating:
P0 P1 P2 P3 P4 P5 P6
Seals Type:
OPEN, Open
Number of Row:
Double row
Place of Origin:
Hebei, China
Product name:
Self-aligning Roller Bearing
Application:
Automotive.tractor.construction Machinery.rolling Mill
Size:
Normal Size
Package:
Customer's Request




















Our product range: Thin walled ball bearings, rotary bearings, deep groove ball bearings, micro ball bearings, flange
bearings, ceramic ball bearings, angular contact ball bearings, thrust ball bearings, thrust roller bearings, spherical sliding bearings, tapered roller bearings, linear motion guidance systems, ball screws, linear liners, non-standard bearings, stainless steel bearings, door and window rollers, purchased products needle roller bearings, hub bearings, spherical roller bearings, rod end bearings, A series of bearing products, including cylindrical roller bearings, pillow seat bearings, self-aligning ball bearings, customized plastic parts, copper bushings, bearing parts, etc.

We have a complete range of bearings and can provide customers with a safe and reliable one-stop procurement service.
22220CA Collection
KMF125-PC200-8 6213 NUP309=180 NUP2212=220 6305 NUP308 NUP308=140 30314D=250
KMF160-PC360-7 NUP308 NUP309 NUP206=100 NUP2211=250 30309D=110 T7FC055=300 NUP309
MSG-27P JMF29 NUP206 NUP2206=130 NUP207 NUP207/NUP306 NUP309 T7FC055
AP5S53 NUP307 6305M NUP309=180 NUP307 30309D JMF250 30312D
M5X130 NUP205E 4T-30307 NUP309=180 NUP307 M2X55 JMV-53/31 30314D
M5X180 NUP207=120 SG08 NUP310 NUP2208 M2X63 MAG85 30312D
32205 NUP2209=160 GM17VA MAG120 NUP2211 NUP2208=210 NUP206E 6008
T7FC060 NUP2207=140 JMV-44/22 MAG150 HMGC48 NUP307=110 15578 NUP307
M2X150 30312D KMF125-PC200-7 KMF90-PC200-6 NUP309 JMF195 NUP306 30311D
M2X170 NUP2209 NUP2310 NUP2206 NUP309 NUP2212 T7FC055
M2X210 NUP2209 30210 NUP2207 NUP2212 NUP2211 NIP2310 JMF23
HMGF57 NUP2209 30311D NUP2207 30312D=155 30312D=155 NUP208E JMF151
NUP306 NUP2212 SG04 GM35VA M2X96 M2X120 NUP308=14 11749/11710
NUP307 M2X146 SG025 GM35VL MCB172 32207 T7FC065 KMF41-PC60

Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.

Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.

Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.

Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.


Spherical Roller Bearing 22220CC 22220C3 22220W33 100*180*46mm CHROME STEEL
