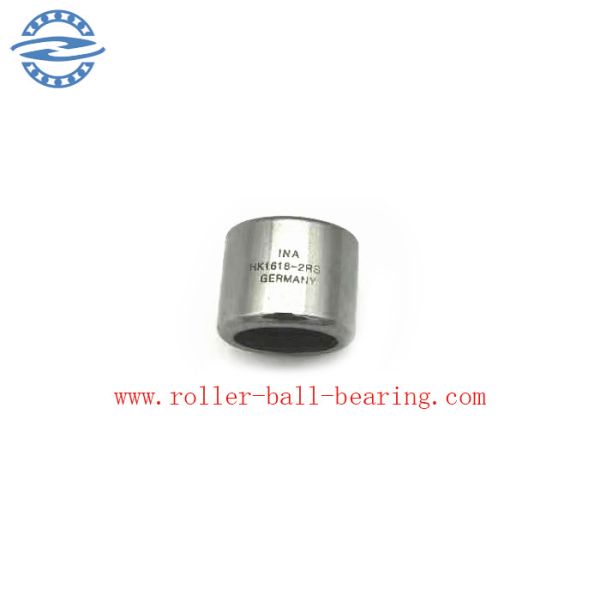

Drawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mm
Drawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mm
Drawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mm
Drawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mm
Specifications
Brand Name :
Z&H
Model Number :
HK1618
Certifiexcavatorion :
ISO9001:2008
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C,,D/P,T/T, Alibaba online payment,Paypal,etc.
Supply Ability :
Negotiation
Delivery Time :
2-7 work days
Packaging Details :
Wooden case,By carton or on request.
Product name :
Needle roller bearing
Model :
HK1618
Size :
16x22x18 mm
Weight :
14g
Packing :
Standard export package,Clients Requested
Transportation :
Express Delivery,follow clients
Description

Drawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mm

Model HK1618
Inside Ø (mm): 16
Outside Ø (mm): 22
Width (mm): 18
Tolerance for inside-Ø (mm): 0/-0,008
Tolerance for outside-Ø (mm): 0/-0,009
Tolerance for width (mm): 0/-0,12
Seal: open
Ring Material: Chrome Steel
Inner Ring: no
Rolling Element Material: Chrome Steel
Cage Material: Sheet Steel
Rows of Rolling Elements: single row
Magnetic: yes
Product weight: 14 g

Drawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mmDrawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mmDrawn Cup Needle Roller Bearing HK 1618 open HK1618 Size 16x22x18 mm

Other model

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Fw D C Cr Dynamic Cor Static Oil
mm g mm N rpm
8 HK0810 RS 2.9 8 12 10 2250 2100 19000
HK0812 2RS 3.5 8 12 12 2250 2100 19000
9 HK09*13*12 RS 4 9 13 12 3800 4300 19000
10 HK1012 RS 4.2 10 14 12 4100 5000 19000
HK1014 RS 5.2 10 14 14 4100 5000 15000
12 HK1214 RS 10.7 12 18 14 6100 7000 15000
HK1216 RS 11.5 12 18 16 6100 7000 12000
13 HK13*19*12 RS 8.9 13 19 12 6800 7580 12000
14 HK1414 RS 12 14 20 14 6100 7500 13000
HK1416 RS 14 14 20 16 6100 7500 11000
BK1414 RS 14.1 14 20 14 6100 7500 11000
15 HK1514 RS 12.6 15 21 14 6800 8800 11000
HK1516 RS 14.3 15 21 16 6800 8800 10000
BK1514 RS 14.4 15 21 14 6800 8800 10000
HK1518 RS 16 15 21 18 9500 11400 10000
HK1520 RS 18 15 21 20 9500 11400 10000
16 HK1614 RS 15.1 16 22 14 7200 9200 10000
HK1616 RS 15.1 16 22 16 7200 9200 10000
BK1614 RS 15.3 16 22 14 7200 9200 10000
HK1620 RS 16.8 16 22 20 9900 12300 10000
HK1625 RS 16 22 25 9900 12300 10000
17 HK17*25*14RS 17.7 17 25 14 8000 9800 10000
HK17*25*115.5RS 20 17 25 15.5 9320 10400 13000
HK17*25*18 RS 23.5 17 25 18 10500 12600 13000
HK17*25*20 RS 26.2 17 25 20 11600 13200 13000
18 HK1814 RS 15.1 18 24 14 7800 9900 13000
HK1816 2RS 17 18 24 16 7800 9900 9200
20 HK2012 RS 11.7 20 26 12 9500 11900 9200
HK2016 2RS 18.8 20 26 16 8000 10100 9000
HK2018 RS 21.4 20 26 18 12700 20100 8200
HK2020 2RS 23.5 20 26 20 12700 20100 7800
BK2018 RS 24.4 20 26 18 12700 20100 7800
HK20*29*18RS 28.8 20 29 18 8700 9980 7800
22 HK2212 RS 14 22 28 12 8310 10000 9000
HK2214 RS 18.3 22 28 14 9000 12400 7800
HK2216 RS 20.3 22 218 16 9000 12400 7800
HK2218 RS 23.5 22 28 18 10400 20100 7800
HK2220 2RS 25.5 22 28 20 10400 20100 7800
25 HK2516 2RS 27.3 25 32 16 9800 13200 6900
HK2518 RS 31 25 32 18 13600 20000 6900

Appliexcavatorion

FAQ

Q : Why choose us ?
A: a. With experiences over 10 years.

b. Strict inspection and high quality with reasonable price.

c. OEM service provided.

d. Delivery time is short.

Q: What kinds of bearing you supply?

A: main products are ball bearing, plastic bearing, ceramic bearing, needle bearings and

industrial tools, etc, as per customers' drawings or samples.

Q: When inspecting bearings, what should we need to consider?

A: The precision of the bearings (dimension tolerance, loading rate), internal

clearance and hardness under heat treatment, structure of cage and material.

Q:Your product certifiexcavatorions?
A: ISO 9001:2008, RoHS.

Q: What about the lead time?

A: 3-7 days for samples, 3-4 weeks for mass production.

Q:What is your payment method?

A: We accept T/T, PAYPAL or Western Union, credit card or via ALIBABA Assurance order.
