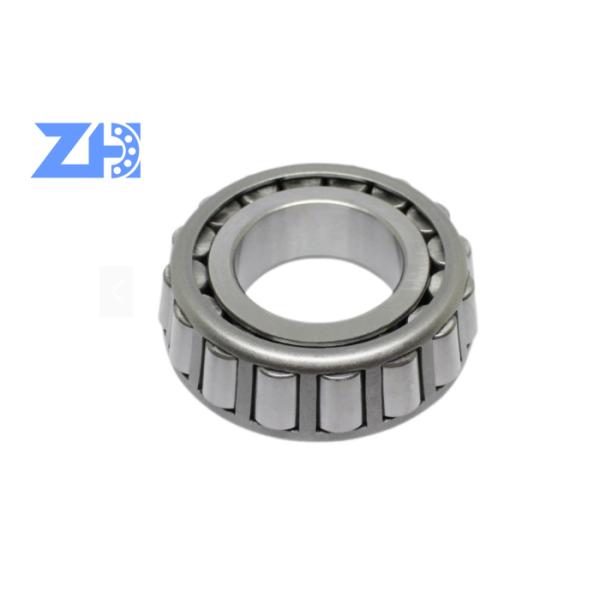

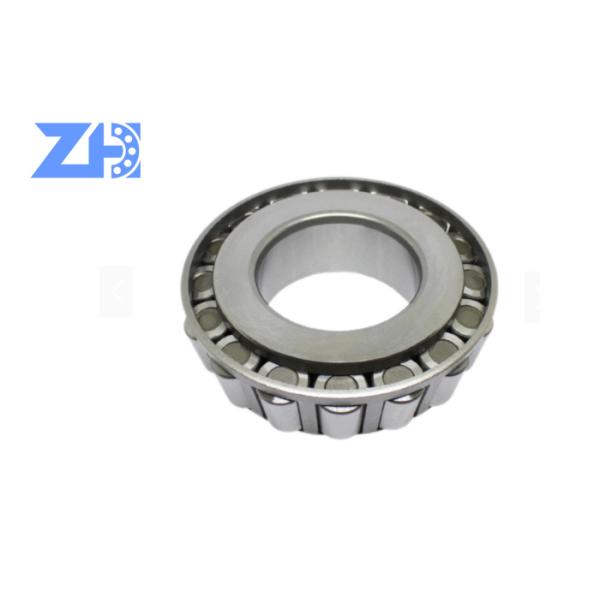

Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
Specifications
Brand Name :
QIEAL ZH
Model Number :
11BC
Certifiexcavatorion :
ISO-9001
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T, Western Union, Alibaba online payment,Paipal,etc.
Supply Ability :
100 per day
Delivery Time :
2-7 work days
Packaging Details :
Wooden case,or on request,By carton
Part name :
Travel Motor Assy
MOQ :
1 Pcs
Type :
Excavator Spare Parts
After-sales Service Provided :
Online support
Warranty :
6 Months
Showroom Loexcavatorion: :
None
Color :
as the photo
Packing :
Standard export package,on request.
Transportation :
Ship/Air Transportation,Express Delivery
Description
Product Descriptio

Tapered Roller Bearings 11BC Automotive Steering Column Bearings

Tapered roller bearings mainly burden the joint load from radial and shaft side. This kind of bearings has strong load capability. It belongs to separated bearing; its inner components and outer components can be equipped individually.On small and medium sized dimensions, our tapered roller bearings use P5 or equivalent techniques; and adopt entire convexity design.

Features
The inner and outer ring raceways and rollers of these bearings are made with a taper so that the surface planes of the raceways and roller axis meet at a point.The rollers are guided by a flange on the inner ring.Tapered roller bearings are separable, and have the following components: outer ring,inner ring and roller assembly. The non-separable inner ring and roller assembly is called the 'cone', and the outer ring is called the 'cup'. Internal clearanceis established during mounting by the axial position of the cone relative to the cup.

Appliexcavatorions
Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the

rolling mills.

Specifiexcavatorion
item
value
Usage
Tapered roller bearings 11BC Automotive steering column bearings
Size
11BC
Car Make
Tapered roller bearings 11BC Automotive steering column bearings
OE NO.
Brand Name
FBZC
Model Number
11BC
Warranty
Years

Tapered Roller Bearings 11BC Automotive Steering Column BearingsTapered Roller Bearings 11BC Automotive Steering Column BearingsTapered Roller Bearings 11BC Automotive Steering Column BearingsTapered Roller Bearings 11BC Automotive Steering Column Bearings

Other Model:

Specifiexcavatorion Boundarydimentions(mm)
d D B
5BC 28.313 0.0154
11BC 33.297 0.0275
09067/09195 19.050 49.225 18.034 0.1804
09081/091195 20.625 49.225 19.845 0.1555
LM11749/LM11710 17.462 39.878 13.843 0.0830
LM11949/LM11910 19.050 45.237 15.494 0.1250
M12649/M12610 21.430 50.005 17.526 0.1740
LM12748/LM12710 21.430 45.237 15.494 0.1180
LM12749/LM12710 22.000 45.237 15.494 0.1160
LM12749/LM12711 22.000 45.975 15.494 0.1210
14125A/14276 31.750 69.012 19.845 0.3540
14137A/14276 34.925 69.012 19.845 0.3310
14138A/14276 34.925 69.012 19.845 0.3290
25877/25821 34.925 73.025 23.812 0.4730
25880/25821 36.487 73.025 23.812 0.4580
2785/2720 33.338 76.200 23.812 0.5440
2788/2720 38.100 76.200 23.812 0.4990
2788/2729 38.100 76.200 23.812 0.5030
2790/2720 33.338 76.200 23.812 0.5490
2790/2729 33.338 76.200 23.812 0.5550
28580/28521 50.800 92.075 24.608 0.7070
28584/28521 52.388 92.075 24.608 0.6820

Related Products
Specifiexcavatorion
dimensions(mm)
d D B
Mass(kg)
30202
15
35
11.75
0.053
30203
17
40
13.25
0.079
30204
20
47
15.25
0.127
30205
25
52
16.25
0.157
30206
30
62
17.25
0.238
30207
35
72
18.25
0.34
30208
40
80
19.75
0.438
30209
45
85
20.75
0.488
30210
50
90
21.75
0.558
30211
55
100
22.75
0.736
30212
60
110
23.75
0.93
30213
65
120
24.75
1.18
30214
70
125
26.25
1.3
30215
75
130
27.25
1.43
30216
80
140
28.25
1.69
30217
85
150
30.5
2.12
30218
90
160
32.5
2.6
30219
95
170
34.5
3.13
30220
100
180
37
3.78
30221
105
190
39
4.52
30222
110
200
41
5.28
30224
120
215
43.5
6.28
30226
130
230
43.75
6.83
30302
15
42
14.25
0.098
30303
17
47
15.25
0.134
30304
20
52
16.25
0.172
30305
25
62
18.25
0.27
30306
30
72
20.75
0.403
30307
35
80
22.75
0.538
30308
40
90
25.25
0.758
30309
45
100
27.25
1.01
30310
50
110
29.25
1.28
30311
55
120
31.5
1.63
30312
60
130
33.5
2.03
30313
65
140
36
2.51
30314
70
150
38
3.03
30315
75
160
40
3.63
30316
80
170
42.5
4.27
30317
85
180
44.5
5.08
30318
90
190
46.5
5.67
30319
95
200
49.5
6.55
30320
100
215
51.5
7.94

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Tapered Roller Bearings 11BC Automotive Steering Column Bearings
