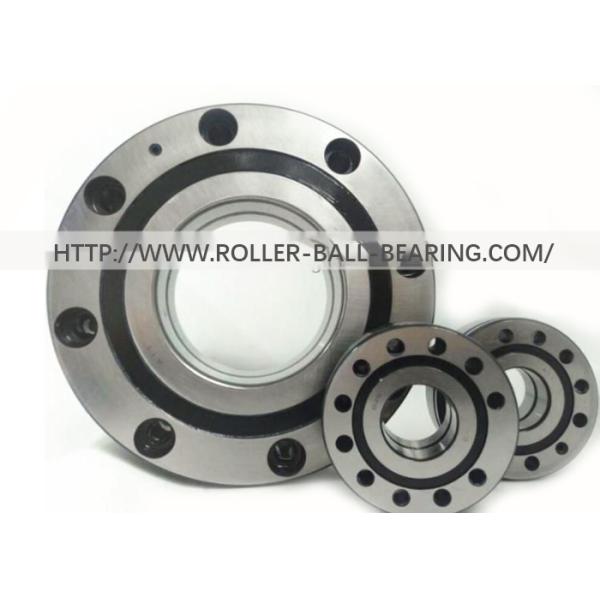

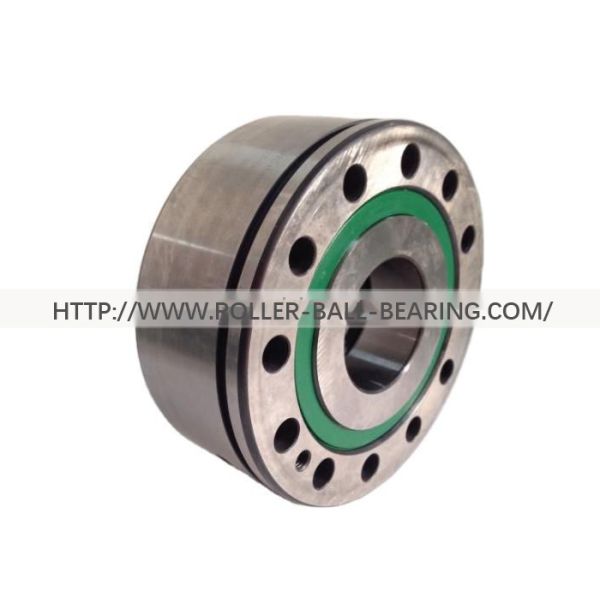

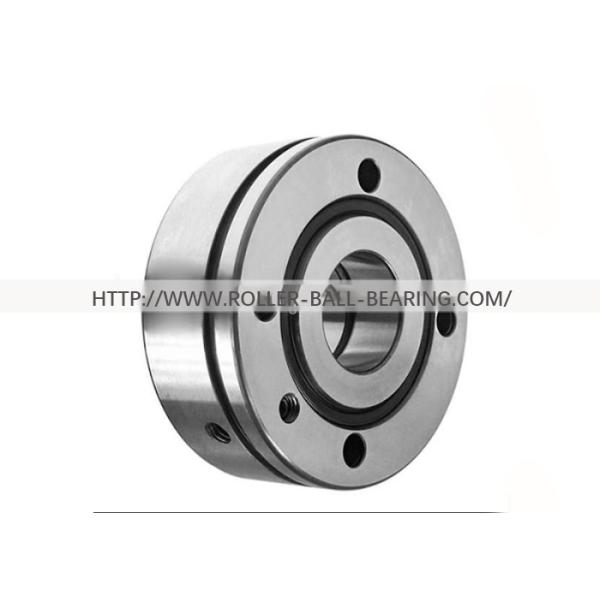

ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS
ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS
ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS
ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS
ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS
ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS
Specifications
Brand Name :
QIEAL ZH
Model Number :
ZKLF3080-2RS
Certifiexcavatorion :
ISO-9001
Place of Origin :
CHINA JAPAN
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300pieces per day
Delivery Time :
3-7work days
Packaging Details :
Packaging according to customer requirements
name :
bearing ZKLF3080-2RS Axial angular contact ball bearings ZKLF3080-2RS
ID :
30MM
OD :
80MM
B :
26MM
size :
30x80x26mm
Goods number :
ZKLF3080-2RS
Description

Bearing ZKLF3080-2RS Axial Angular Contact Ball Bearings ZKLF3080-2RS

Product Description

Axial angular contact ball bearings for screw drives

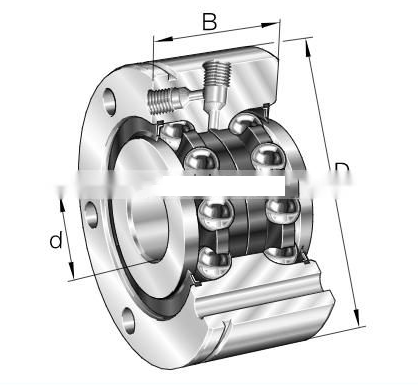

ZKLF bearing is a bearing unit composed of an integral outer ring, a group of sectile inner rings, steel balls, cage assemblies and sealing. ZKLF bearing features compact structure, small size and high rotating accuracy, enduring force in two directions and bearing certain axial load while holding very high radial load, and multiple structure styles, broad adaptability and easy installation. ZKLF bearing is widely used in combination lathe or the spiral-rod drive in machining center.

Precision bearings for screw drive bearing arrangements
Axial angular contact ball bearings are precision bearings for screw drive bearing arrangements. Depending on the series, they can support radial forces as well as axial forces in one or both directions. Contact seals protect the rolling element system against contamination and moisture. For higher speeds, non-contact minimal gap seals can be used.


With and without fixing holes
The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. This solution is particularly economical since there is then no need for the loexcavatoring bore that would otherwise be required or for the bearing cover with the associated matching work.

Available with less stringent tolerances
For some areas of appliexcavatorion, a bearing arrangement of lower precision is often sufficient. For this purpose, bearings with lessstringent tolerances are available.

ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS

name bearing ZKLF3080-2RS Axial angular contact ball bearings ZKLF3080-2RS
ID 30MM
OD 80MM
B 26MM
mail qireal220929@163.com
Tel +86-18620602705

ZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RSZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RSZKLF3080-2RS Axial Angular Contact Ball Bearing ZKLF3080-2RS

mm
Kg
-0.25
12 ZKLF 1255.2RS 0.37 12 55 25 3×120° M6 3
ZKLF 1255.2Z 0.37 12 55 25 3×120° M6 3
15 ZKLF 1560.2RS 0.43 15 60 25 3×120° M6 3
ZKLF 1560.2Z 0.43 15 60 25 3×120° M6 3
17 ZKLF 1762.2RS 0.45 17 62 25 3×120° M6 3
ZKLF 1762.2Z 0.45 17 62 25 3×120° M6 3
20 ZKLF 2068.2RS 0.61 20 68 28 4×90° M6 4
ZKLF 2068.2Z 0.61 20 68 28 4×90° M6 4
25 ZKLF 2575.2RS 0.72 25 75 28 4×90° M6 4
ZKLF 2575.2Z 0.72 25 75 28 4×90° M6 4
30 ZKLF 3080.2RS 0.78 30 80 28 6×60° M6 6
ZKLF 3080.2Z 0.78 30 80 28 6×60° M6 6
35 ZKLF 3590.2RS 1.13 35 90 34 4×90° M8 4
ZKLF 3590.2Z 1.13 35 90 34 4×90° M8 4
40 ZKLF 40100.2RS 1.46 40 100 34 4×90° M8 4
ZKLF 40100.2Z 1.46 40 100 34 4×90° M8 4
50 ZKLF 50115.2RS 1.86 50 115 34 6×60° M8 6
ZKLF 50115.2Z 1.86 50 115 34 6×60° M8 6
60 ZKLF 60145.2Z 4.30 60 145 45 6×60° M8 8
ZKLF 70155.2Z 4.90 70 155 45 8×45° M8 8
80 ZKLF 80165.2Z 5.30 80 165 45 8×45° M8 8
90 ZKLF 90190.2Z 8.70 90 190 55 8×45° M10 8
100 ZKLF 100200.2Z 9.30 100 200 55 8×45° M10 8

Packing&Shipping
1. single box +carton +pallet
2. delivery time : after payment 3 days

Our Services & Strength

delivery1. high-quality

2. best price

3. fast delivery time

FAQ

Have any question , pls contact to us !!
