SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material
Specifications
Model Number :
SL 308 MR 3L
Certifiexcavatorion :
ISO-9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Money Gram
Delivery Time :
2-5 work days
Packaging Details :
Packaging Details: carton;
Brand Name :
QIEAL ZH
Weight :
0,90 KGS

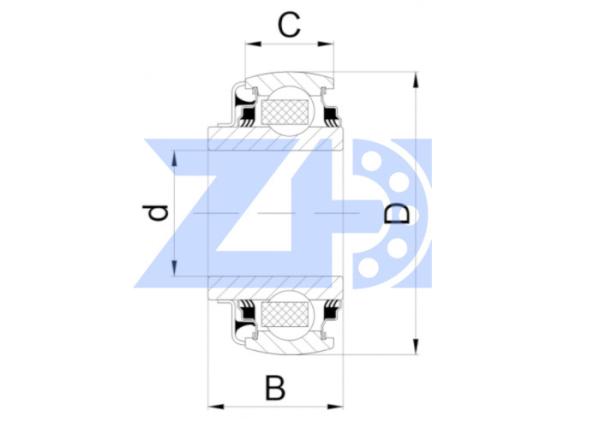

Inner diameter [d :
8
Outer diameter [D :
8
Inner ring width [B :
8
Outer ring width [C :
8
Bore type :
Cylindrical
Outer ring shape :
Spherical
Material :
Chrome Steel GCR15
Description

Insert Ball Bearing SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing

Product Description

are single deep groove ball bearings which have an inner ring that is extended on one or both sides. And this type bearings are basically sealed deep groove ball bearings with a convex sphered outer surface. The insert bearings are mounted in appropriate housings to form bearing units. The various bearing series differ in the way the bearing is loexcavatored onto the shaft. These bearings are suitable for appliexcavatorions where insert bearings are exposed to heavy dust and water contamnation.

Insert Ball Bearing Details:
Brand: QIEAL ZH
Model No.: Insert Ball Bearing SL 308 MR 3L
Quality Standard: ISO-9001
1)Minimum quantity: 1 sets
Features: 2)Precision: P0,P4,P5,P6
Outer ring width [C]:28 mm
Inner ring width [B]:42,9 mm
5)Weight: 0,90 KGS
6)Precision Rating: P0,P6,P5,P4
7)Noise level: Z1, Z2, Z3, Z4
8)Vibration Level: V1, V2, V3, V4
9)Hardness: 60-65 HRC
10)Seals Type: sealed type oe Triple lip shroud seales
10)Material: Chrome Steel GCR15 ,Carbon steel, Stainless steel 304,420,440,
Appliexcavatorion: agricultural machinery, construction machinery, textile machinery, foodstuff machinery and conveying devices, food and beverage processing equipment, chemical, rubber equipment, packaging machines, car washing machine, etc.
Packaging Details: 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the customers' requirement
Samples Policy : sample lead time:5-7 working day. Sample cost needed and freight collected. We will reduct this part expense from the total value when place order.
Delivery : 4-9 days if have stock, 9-30 days after order confirmed(depend on the total amount)
Service: We are a 100% manufacturer and can supply fast delivery, competitive price and high quality. We can supply technical support. We will follow up on our customers' feedback and suggestions after every delivery and we make every effort to solve their problems in order to ensure their satisfaction.
We may supply other brand bearings and offer buyer labels
We can manufacture these bearings according to customer's drawings and samples

Bearing No. Shaft Dia Dimensions(mm)/(in.) Basic load ratings(N) weight(kg)
d D C B B1 S h B3 d1 Dynamic Cr Static Cor
(in.) (mm)
SA201 12 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.14
SA201-8 1/2 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.14
SA202 15 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
SA202-10 5/8 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
SA203 17 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
SA203-11 11/16 40 12 19.1 28.6 6.5 3.6 13.5 28.6 9550 4780 0.13
CSA104-12 3/4 42 12 16.14 26.42 6 13.2 33 9380 5000 0.12
SA204-12 3/4 47 14 21.4 30.9 7.5 4 13.5 33.3 12800 6650 0.18
SA204 20 47 14 21.4 30.9 7.5 7 13.5 33.3 12800 6650 0.15
SA205-14 7/8 52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.21
SA205-15 15/16 52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.19
SA205 25 52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.19
SA205-16 1 52 15 21.4 30.9 7.5 4.3 13.5 38.1 14000 7880 0.18
SA206-18 1-1/8 62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.35
SA206 30 62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.33
206-19 1-3/16 62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.31
SA206-20 1-1/4 62 16 23.8 35.7 9 5 15.9 44.5 19500 11200 0.29
SA207-20 1-1/4 72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.56
SA207-21 1-5/16 72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.53
SA207-22 1-3/8 72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.51
SA207 35 72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.5
SA207-23 1-7/16 72 17 25.4 38.9 9.5 5.7 17.5 55.6 25700 15200 0.48
SA208-24 1-1/2 80 18 30.2 43.7 11 6.2 18.3 60.3 29600 18200 0.68
SA208-25 1-9/16 80 18 30.2 43.7 11 6.2 18.3 60.3 29600 18200 0.67
SA208 40 80 18 30.2 43.7 11 6.2 18.3 60.3 29600 18200 0.65
SA209-26 1-5/8 85 19 30.2 43.7 11 6.5 18.3 63.5 31850 20800 0.76
SA209-27 1-11/16 85 19 30.2 43.7 11 6.8 18.3 63.5 31850 20800 0.73
SA209-28 1-3/4 85 19 30.2 43.7 11 6.8 18.3 63.5 31850 20800 0.69
SA209 45 85 19 30.2 43.7 11 6.5 18.3 63.5 31850 20800 0.69
SA210-30 1-7/8 90 20 30.2 43.6 11 6.5 18.3 69.9 35100 23200 0.83
SA210-31 1-15/16 90 20 30.2 43.6 11 6.5 18.3 69.9 35100 23200 0.79
SA210 50 90 20 30.2 43.6 11 6.5 18.3 69.9 35100 23200 0.79
SA211-32 2 100 24 32.5 48.4 12 7.2 20.7 76.2 43550 29200 1.17
SA211-34 2-1/8 100 24 32.5 48.4 12 7.2 20.7 76.2 43550 29200 1.07
SA211 55 100 24 32.4 48.4 12 7.2 20.7 76.2 43550 29200 1.04
SA211-35 2-3/16 100 24 32.4 48.4 12 7.2 20.7 76.2 43550 29200 1.01
SA212-36 2-1/4 110 24 33.4 49.3 12 8 22.3 84.2 47800 32800 1.3
SA212 60 110 24 33.4 49.3 12 8 22.3 84.2 47800 32800 1.2
SA212-38 2-3/8 110 24 33.4 49.3 12 8 22.3 84.2 47800 32800 1.09
SA212-39 2-7/16 110 24 33.4 49.3 12 8 22.3 84.2 47800 32800

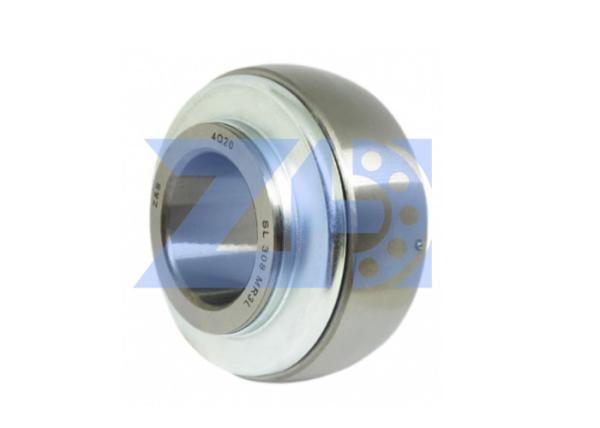

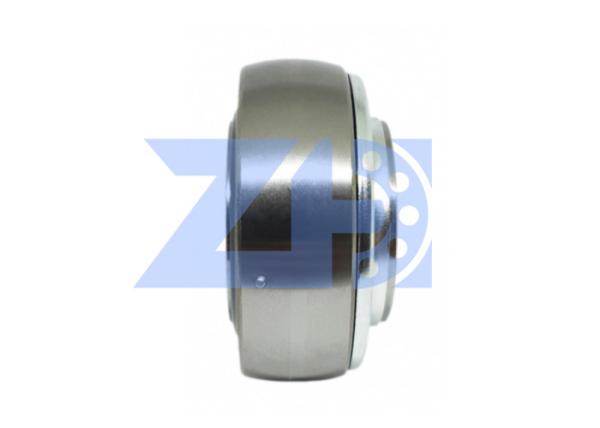

Picture Show

SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 MaterialSL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 MaterialSL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 MaterialSL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material

SL 308 MR 3L Insert Ball Bearing Pillow Ball Bearing Chrome Steel GCR15 Material

Remark:

1) Less than 45 KGS, We will send by express. ( Door to Door, Convenient )

2) Between 45 - 200 KGS, We will send by air transport. ( Fastest and safest, but a little expensive )

3) More than 200 KGS, We will send by sea. ( Cheapest, but need long time maybe 25-45 days).
