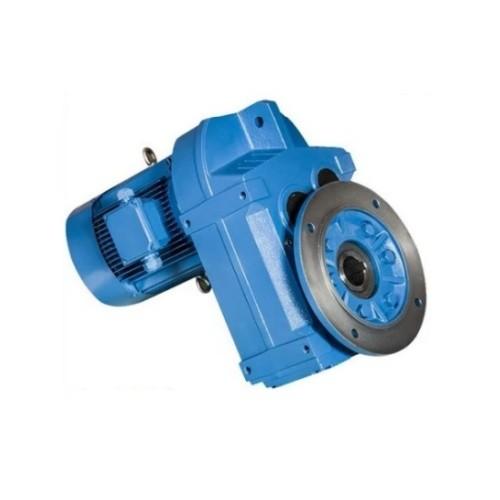

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors
F Series Gearbox Shaft Mount Gear Units For Screw Conveyors
F Series Gearbox Shaft Mount Gear Units For Screw Conveyors
F Series Gearbox Shaft Mount Gear Units For Screw Conveyors
Specifications
Brand Name :
HUATAO
Model Number :
HT
Certification :
CE, ISO, TUV
Place of Origin :
China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000PCS/Per Month
Delivery Time :
25 days
Packaging Details :
Plywood Case
Product Name :
F Series Shaft Mount Gear Units For Screw Conveyors
Key Words :
F Series Shaft Mount Gear Units For Screw Press
Application :
Industrial Machinery
Color :
Basis on customer request
Customized :
Available
Package :
Plywood Case
HS Code :
8483409000
Production Capacity :
5000PCS/Per Month
Description

F Series Shaft Mount Gear Units For Screw Conveyors

The F Series Shaft Mount Gear Units For Screw Conveyors provide a robust and efficient solution for screw conveyors, ensuring high performance and reliability in various industrial applications. It is Ideal for various industries, including agriculture, food processing, and mining.

Technical Data of F Series Shaft Mount Gear Units For Screw Conveyors:

  • Size: F37~F157

  • Technical Data(N·m): 200~18000

  • Gear Ratio: 3.77~267.43 (imax:18510)

  • Input Power(kW):0.12~160

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors

Material of F Series Shaft Mount Gear Units For Screw Conveyors:

1. Box body: HT250 high-strength cast iron, injection-shaped inner cavity, effectively reduces parts wear；

2. Gear: 20CrMo alloy steel, carbon-nitrogen co-infiltration treatment (maintain tooth surface hardness HRC60 after fine grinding)；

3. Flat key: 45 steel, surface hardness HRC50.

Key Attributes Of F Series Shaft Mount Gear Units For Screw Conveyors

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors

Ratio 3.77-276.77
Input power 0.12-200KW
Output torque 3.5-21700N.m
Output speed 5-352rpm
Mounting type Foot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm.
Input Method Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake Release HF-manual release(lock in the brake release position), HR-manual release(automatic braking position)
Thermistor TF(Thermistor protection PTC thermistor)
TH(Thermistor protection Bimetal swotch)
Mounting Position M1, M2, M3, M4, M5, M6
Type FAF37-FAF157
Output shaft dis. 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing material HT200 high-strength cast iron from R37,47,57,67,77,87
Housing material HT250 High strength cast iron from R97 107,137,147,
157,167,187
Heat treatment technology carbonitriding and hardening treatment
Efficiency 92%-94%
Lubricant VG220
Protection Class IP55, F class

Model of F Series Gearmotor:

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors

Solid shaft output type F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 reducer
Solid shaft with flange output type FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 reducer
Hollow shaft output type FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 reducer
Hollow shaft with flange output type FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127 reducer, FAF157 reducer.

Applications of F Series Shaft Mount Gear Units:

The F Series Right Angle Parallel Shaft Helical Gearmotor Reducer is widely applied to the light industry,

food, beer & beverage, chemistry, escalator, automatic storage equipment, construction machinery, steel metallurgy, environmental protection, powerplant, coal, mining, paper, board, stage equipment, automobile, ports (airport and dock), and tobacco machinery, etc, winning perfect praise around the globe.

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors

Packaging:

F Series Gearbox Shaft Mount Gear Units For Screw Conveyors

FAQ:


1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
