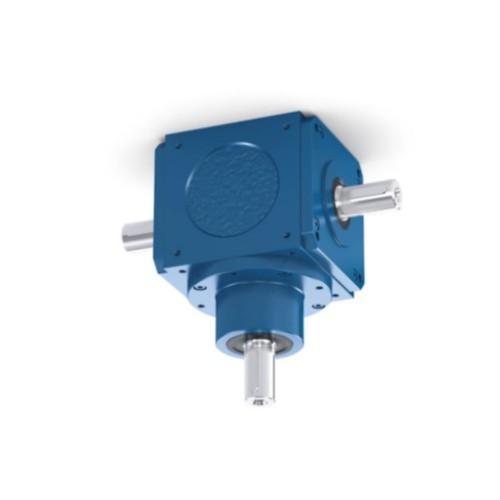

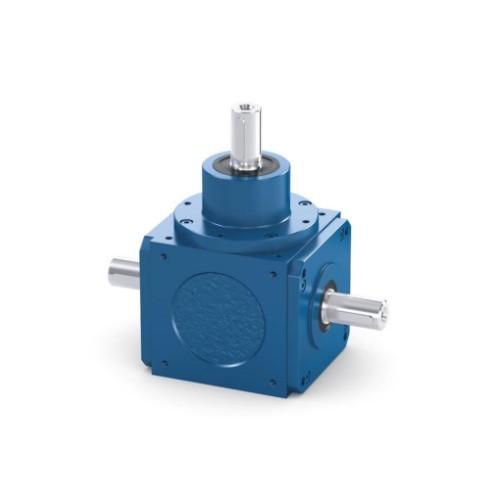

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key
L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key are more efficient and faster than traditional worm-driven screw jacks, making them ideal for applications requiring quick and reliable lifting or positioning.
Features of L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key
Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
Drive shaft available: 1 way, 2 way, 3 way, 4 way.
Max. Permissible Speed 1500rpm, Max input torque 5713N.m.
Working temperature: -40ºC~+80ºC, customized special temperature.
Function: 90 degree angle changes transmission directions
Hollow shaft, solid shaft, fand lange input are available
| Ratios: | i | [-] | 1.0 – 6.0 |
| Max. acceleration torque: | T2maxzul | [Nm] | 27 – 15300 |
| Nominal torque on output shaft: | T2Nzul | [Nm] | 10 – 5700 |
| Max. backlash: | j | [arcmin] | 10, 7, [4] |
| Max. input speed: | N1maxzul | [min-1] | up to 4500 |
Main Application of L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key
Packaging:
FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.
2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher
3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
