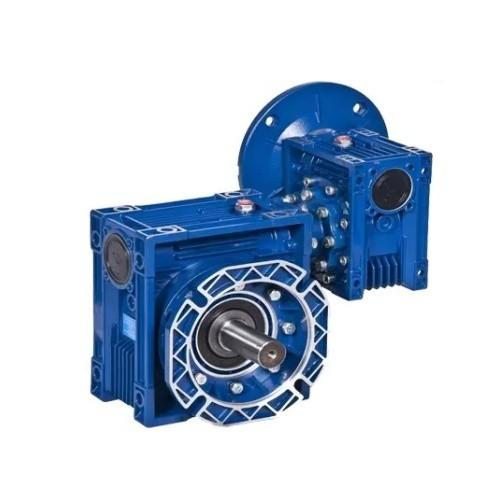

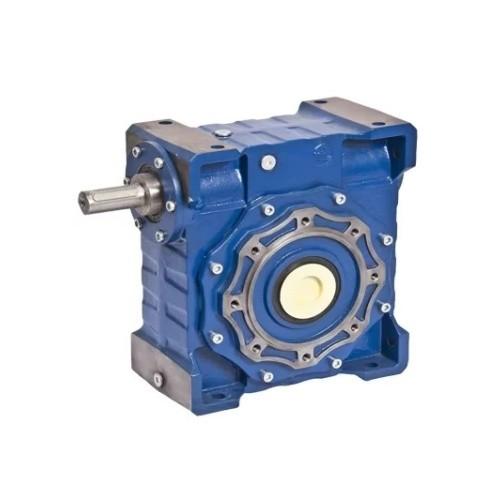

90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series
90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series
90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series
90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series
Specifications
Brand Name :
HUATAO
Model Number :
HT
Certification :
CE, ISO, TUV
Place of Origin :
China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000PCS/Per Month
Delivery Time :
25 days
Packaging Details :
Plywood Case
Product Name :
RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor
Key Words :
RV Series Worm Gearmotor Gearbox for Belt Conveyor
Application :
Industrial Machinery
Color :
Basis on customer request
Customized :
Available
Package :
Plywood Case
HS Code :
8483409000
Production Capacity :
5000PCS/Per Month
Description

RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor with the 90-degree configuration allows for efficient use of space, making it ideal for tight installations in conveyor systems.

Characteristics of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

(1)Large output torque
(2) Safe, reliable, economical, and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in sectors, like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing, and plastics

Technical data of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor
SPEED RATIO 7.5~100
OUTPUT TORQUE <1050NM
IN POWER 0.09-11KW
MOUNTING TYPE FOOT-MOUNTED FLANGE-MOUNTED
Type RV025 RV030 RV040 RV050 RV063 RV075 RV090
Weight 0.7kg 1.3kg 2.3kg 3.5kg 6.2kg 9kg 13kg
Type RV110 RV130 RV150
Weight 35kg 60kg 84kg
Mounting Methods Foot Installation Flange Installation
For various motor or double input/output, shafts can be equipped
Product picture:

Materials of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

(1) RV025-RV090: Aluminium alloy housing
(2) RV110-150: Cast iron housing
(3) Bearing: NSK bearing & Homemade bearing
(4) Lubricant: Synthetic & Mineral
(5) The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6) With high-quality homemade bearings, assembled NAK oil seals & filled with high-quality lubricant.

Operation & maintenance of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

(1)When worm speed reducer starts to work up to 200-400 hours, its lubricant should be replaced.
(2)The gearbox needs to replace the oil after 4000 hours.
(3) The worm reduction gearbox is filled with lubricant oil after the assembly is finished.
(4) Lubricating oil should be kept enough in the casing and checked at a fixed time.
Colour:
(1) Blue / Light blue
(2) Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending

90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series

Packaging:

90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series

FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
