Description

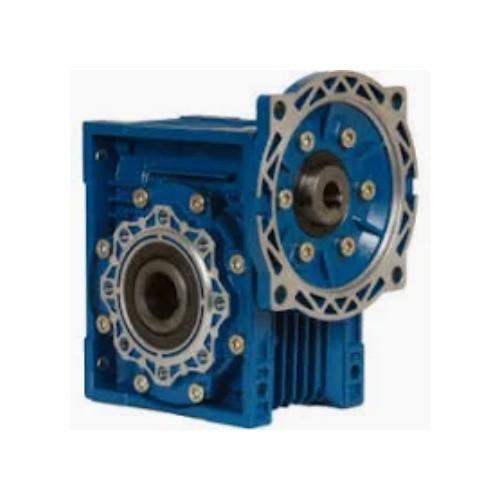

NMRV Series Worm Gear Reducer Gearboxes

NMRV Series Worm Gear Reducer Gearboxes are widely used in various industrial applications due to their compact design, high efficiency, and versatility.

Characteristics of NMRV Series Worm Gear Reducer Gearboxes:

(1) Large output torque
(2) Safe, reliable, economical, and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in sectors, like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing, and plastics

Technical data of NMRV Series Worm Gear Reducer Gearboxes::
(1) Motor input power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio of worm gear speed reducer: 5/10/15/20/25/30/40/50/60/80/100
(4) With IEC motor input flange: 56B14/71B14/80B5/90B5…

Materials of NMRV Series Worm Gear Reducer Gearboxes::
(1) NMRV025-NMRV090: Aluminium alloy housing
(2) NMRV110-150: Cast iron housing
(3) Bearing: NSK bearing & Homemade bearing
(4) Lubricant: Synthetic & Mineral
(5) The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6) With high-quality homemade bearings, assembled NAK oil seals & filled with high-quality lubricant.


Operation & mantenance of NMRV Series Worm Gear Reducer Gearboxes:
(1)When worm speed reducer starts to work up to 200-400 hours, its lubricant should be replaced.
(2)The gearbox needs to replace the oil after 4000 hours.
(3)Worm reduction gearbox is filled with lubricant oil after finished assembly.
(4) Lubricating oil should be kept enough in the casing and checked at a fixed time.
Color:
(1) Blue / Light blue
(2) Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending

NMRV Series Worm Gear Reducer Gearbox For Industrial Machinery

NMRV Series Worm Gear Reducer Gearbox For Industrial Machinery

Packaging:

NMRV Series Worm Gear Reducer Gearbox For Industrial Machinery

FAQ:
1. Can you customize it according to our requirements?
Yes, we can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. Reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineer team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
