Specifications
Brand Name :
KNNJOO
Model Number :
15GN
Certification :
CE/ISO9001
Place of Origin :
QINGDAO,CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
45 work days
Packaging Details :
Naked,Winding with stretch film
Blast wheel wear parts material :
High chromium casting Cr27%
Blast wheel impeller :
Abrasive-resistant alloy carburizing parts
Bearing of blast wheel :
Swenden SKF
Motor of blast wheel :
Siemens Company product
Reducer :
Jiangsu Guomao group(Chinese famous brand)
Contactor :
Schneider
PLC :
Siemens
Pneumatic components :
Yadeke series
Description

Automatic High Quality Steel Plate Pretreatment Roller Conveyor Type Shot Blasting Machine for Castings Parts Cleaning

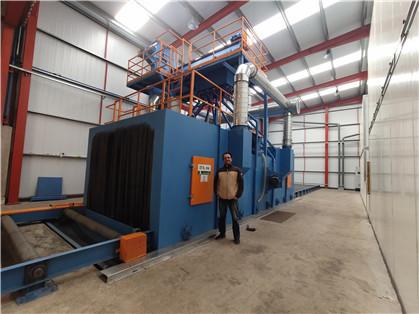

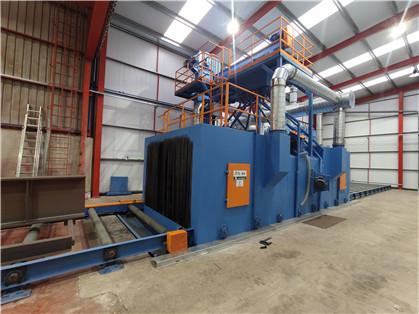

Steel plate shot blasting pretreatment line workshop site

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

Features:

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

1.Compact,fully assembled roller conveyor type automatic shot blasting machine:

This equipment is mainly used for shot blasting of structural parts and casting
parts,and the handening of dynammically stresses parts.
2.Material and technology:Long working life of wearing parts:
Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning
The wear-resistant parts of this blast wheel are precision-casted with
Cr27% high-chromium molten film, and their service life is more than
3 times that of moist film sand castings.

3.Shot blasting room was welded by durable steel frame and steel plate.

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

In order to prevent the abrasive directly hit the blasting chamber: The main

blasting area of shot blasting chamber lining with imported Swedish high

wear-resistant protective plate, which has a long service life.

4.The blast wheel is a key component in various shot blasting equipment,

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

and is widely used in the surface cleaning and pretreatment of castings,forgings,

welding parts,heat treatment parts,and surface strengthening processes of gears,

springs and other mechanical parts.

This shot blasting machine has a very high production efficiency and a wide range of flexibility.
It is an ideal cleaning and strengthening equipment and is easy to operate.

This design has the advantages of compact structure, convenient maintenance, low noise,
low consumption, high efficiency.
Delivery and payment method:
Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

We support different shipping methods and paymant methods,
including FOB,EXW,CIF,etc.
The payment term is 30% deposit by T/T,the balance paid before delivery.
MOQ 1 SET

Settlement Currency

 USD,RMB,EUR
Trade mode FOB,CIF,EXW
Payment term 30% deposit by T/T,the balance paid before delivery
Delivery time Within 20-60 days according to different type equipment.

Advantage

1.Wide application,easy to install and use.

2.Customized.Meet your needs.
3.Good stability.Low failure rate(technical maturity,technical precipitation,skill workers)

4.Exquisite appearance(mature craft)

5.Large factories.Prompt delivery.
6.Strict quality inspection department.
7.Factory direct selling with competitive price.
8.Over 10 years' production experience.

9.Professional design team to serve you.
10.Main electrical control sysytem adopts international brand.
11.CE certificate assure you our quality.

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

Advanced technological innovation

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

In the aspect of the core part of the machine - blast wheel, our company has
invested millions yuan to proceed the technological innovation, production
research and development.

Push the techniques of optimizations and upgrade

The company try to push the techniques of optimizations and upgrade of the
whole casting machine industry, continue to inject new elements in brand planning
and product introduction,

Upholding the quality first

The area which our company involved is including the shot blasting machine,
core shooter, sand mixer, environmental protection equipment, fan, wear-resistant
material and steel shot,etc

This production line is mainly used for steel plate shot blasting, rust removal and

painting, cleaning of structural parts and cleaning of oxide scale. In addition, the production

line is also used to clean the oxide scale and residual coating of other metal parts.

The equipment is a complete brand new equipment (including all parts, components and

accessories) produced by our company. It has the characteristics of advanced technology,

durable, reasonable structure design, easy to operate, easy to maintenance and low

operating cost.

The whole equipment includes shot blasting room, front and rear auxiliary room, spray

paint and drying system, abrasive control unit, shot blasting system, abrasive recycling,

sorting and storage system, abrasive blowing unit, ventilation and dust removal system,

roller conveying system, electrical control system, maintenance platform, safety system,

etc.

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

Mechanical and electrical systems shall be equipped with reliable safety protection

devices. Shot blasting equipment meets the relevant standards, certification and

requirements of European Union CE.

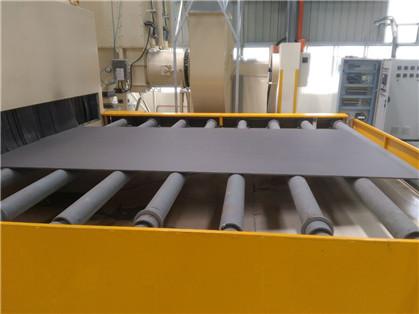

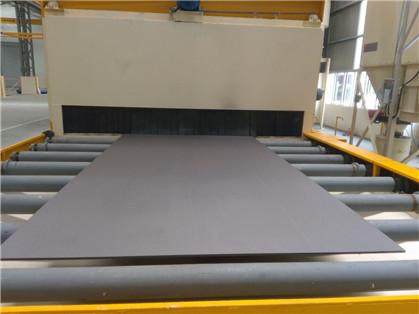

The roller of the shot blasting room is equipped with a special material wear-resistant

sheath to prevent damage from being shot blasting.

The plate chain in the drying room adopts a "V" structure. After spray painting, the steel

plate is in short-term contact to avoid the damage to the paint film as much as possible.

The lower supporting roller of the chain is 10mm wider than the conventional supporting

roller to prevent the plate chain from falling during the running of the towline.

This machine is composed of shot blasting room, blast wheel assembly, abrasive recycling

system, automatic loading system, steel belt system, dust removal system and electrical

control part.

Using 8 sets of KNNJOO patented direct coupling technology blast wheel, shot blasting

volume 350kg/min, the blast wheel is arranged in a diamond shape, and after computer

three-dimensional(3D) simulation, the upper and lower blasting area correspond to reduce

the deformation of the steel plate. And the shot blasting avoid roller track, the shot blasting

coverage is well-distributed and uniform.

Abrasive cleaning and blowing

Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning Roller Conveyor 350kg/min Automated Blasting Systems Castings Parts Cleaning

First level scraper: "<" type plow scraper, special scraper material.

Second level cleaning: high-strength nylon roller brush + screw conveyor

Third level wind blowing: high-pressure fan blows steel shot and dust in the shot blasting

room.

Adopting German AGTOS technology full curtain multi-stage winnowing separator, Special

polyester core elevator transmission belt, elevator upper and lower drum adopts chamfered

squirrel cage structure, which not only increases friction and avoids slippage, but also

prevents belt scratches. Adopts Germany AGTOS company pull-out type shot feeding

technology, remote pneumatic control, And is equipped with abrasive supplement to

facilitate adding abrasive.

Abrasive dust removal system

Adopts two-stage dust removal method of the settling chamber + the main dust collector

,and the dust emission is less than 50mg/m3.

Painting room

Use high pressure airless paint spray pump

It adopts a special rack and pinion, driven by a servo motor. The workpiece detection is

set outside the painting room (during use, the detection device
