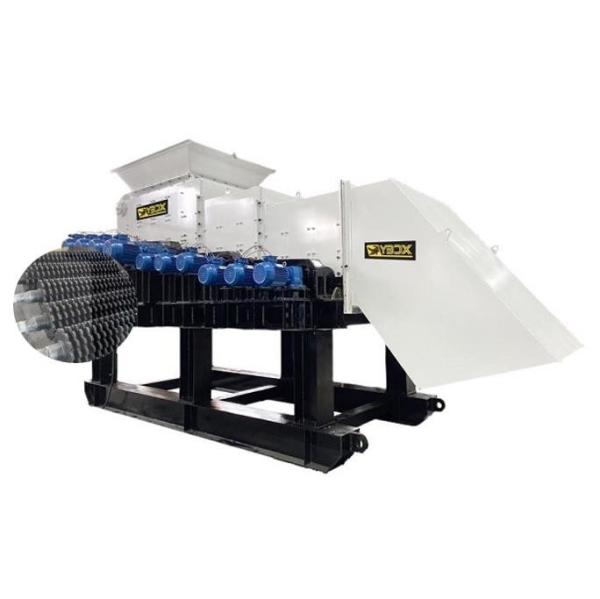

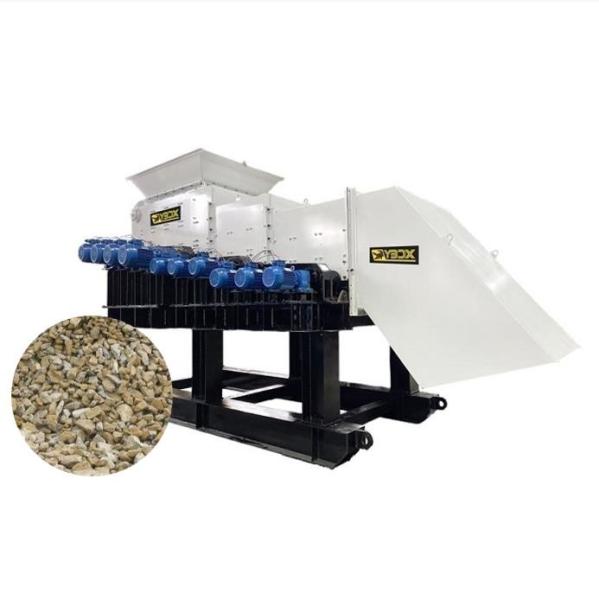

Large Throughput Roller Screening Machine Rustproof 35 To 120mm Adjustable Clearance
Large Throughput Roller Screening Machine Rustproof 35 To 120mm Adjustable Clearance
Large Throughput Roller Screening Machine Rustproof 35 To 120mm Adjustable Clearance
Large Throughput Roller Screening Machine Rustproof 35 To 120mm Adjustable Clearance
Specifications
Brand Name :
BENO
Model Number :
XCDRS1410
Certification :
CE, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 89,041.09-104,838.71 one set
Payment Terms :
L/C, T/T
Supply Ability :
200 sets / year
Delivery Time :
30 days
Packaging Details :
Simple Package
Throughput :
364-896 TPH
Feed Side Length :
Less Than 700 mm
Roll Surface Width :
1400 mm
Number Of Axes :
10
Number Of Motors :
10
Power :
3-7.5 KW Each
Description

Large Throughput Roller Screening Machine 35-120 Mm Adjustable Clearance

Equipment Principle

The Roller Screening Machine developed by our company is composed of quincunx discs staggered on solid circular steel shafts. Rotate the roller to screen ore materials, muddy and other wastes. Wastes such as muddy smaller than the gap fall through the gap between the rollers, while the required materials continue to rotate forward and roll to the ore discharge port with the help of the disk quincunx contact point.

Equipment Advantages

1. The Roller Screening Machine has simple structure and uniform accessories, which is conducive to the replacement and maintenance of the equipment.

2. This Roller Screening Machine is equipped with an electric drive bypass discharge device, which is convenient for cleaning materials.

3. The tooth piece of roller shaft of this Roller Screening Machine is made of wear-resistant and corrosion-resistant alloy material, which is very strong and durable.

4. Roller Screening Machine has strong adaptability to minerals and is not easy to jam.

Technical Reference Data

Model Roll surface width (mm) Number of axes Throughput (t/h) Feed side length (mm) Roll shaft clearance (mm) Screening efficiency (%) Installed power Flap drive push rod (optional for for electro hydraulic users)
Power (kw) Number Model Thrust (kgf) Power (w)
XCDRS1008 1000 8 140-385 ≤500 25-100 80 2-4 8 DT or DTY 300 370
XCDRS1010 10 168-490 85 3-3.5 10
XCDRS1012 12 210-595 90 12
XCDRS1408 1400 8 294-700 ≤700 35-120 80 8 DT or DTY 500 750
XCDRS1410 10 364-896 85 3-7.5 10
XCDRS1412 12 455-1050 90 12
