Limestone Crushing Roll Crusher Machine 50-100 TPH Output For Small Mines
Limestone Crushing Roll Crusher Machine 50-100 TPH Output For Small Mines
Limestone Crushing Roll Crusher Machine 50-100 TPH Output For Small Mines
Limestone Crushing Roll Crusher Machine 50-100 TPH Output For Small Mines
Specifications
Brand Name :
BENO
Model Number :
XCMD650 * 1500(Z)
Certification :
CE, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 98,630.14-116,129.03 one set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets / year
Delivery Time :
30-90 days
Packaging Details :
Simple Package
Feed Size :
Less Than 60 mm
Discharging Size :
Less Than 10-25 mm
Application :
Limestone Crushing
Product Capacity :
50-100TPH
Power :
55*2 KW
Weight :
16 t
Description

Limestone Crushing Roll Crusher Machine 50-100 TPH Output For Small Mines

Product Description

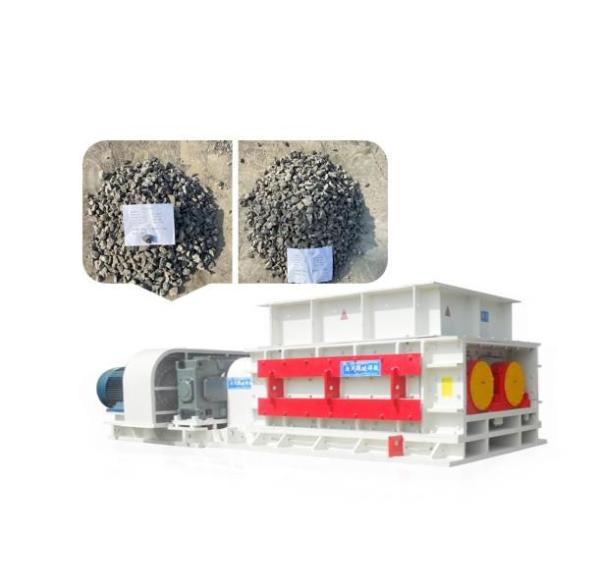

This is a small mine crushing equipment, called Roll Crusher Machine, model XCMD650 * 1500. The production capacity of this equipment is small, and it often forms a small material production line with feeder, jaw crusher, cone crusher and other equipment. Since its research and development, the Roll Crusher Machine has continuously introduced and absorbed the advanced technology from Europe, and continuously innovated and produced the tooth shape more suitable for broken rock. In addition to the basic function of crushing materials, this equipment can also reshape and reshape the crushed materials.

Technical Reference Data

Model Diameter of roller (mm) Length of roller (mm) Maximum side length of feeding material (mm) Grain size of discharging material(mm) Production capacity (t/h) Power (kw) Soft connection weight (t) Direct connection weight (t)
XCMD500 500 1000 ≤50 ≤10-25 20-50 15*2 9.5 8.2
1500 30-60 18.5*2 11.8 10.5
2000 40-70 22*2 14.5 12.8
2500 50-80 30*2 18 16.3
XCMD650 650 1000 ≤60 ≤10-25 30-80 45*2 12.3 10.5
1500 50-100 55*2 18.5 16
2000 60-160 75*2 23 21
2500 75-220 90*2 28 25
XCMD750 750 1000 ≤70 ≤10-30 50-150 55*2 23 21
1500 80-180 75*2 26.5 24.5
2000 100-200 90*2 30 27.2
2500 120-250 110*2 33.8 30.8
XCMD850 850 1000 ≤75 ≤10-30 100-220 75*2 26 23.5
1500 200-400 90*2 31.5 28.5
2000 300-500 110*2 36 33
2500 350-650 132*2 39 36
XCMD1000 1000 1000 ≤100 ≤10-30 250-450 90*2 46.8 41
1500 350-550 110*2 52 46.2
2000 500-700 132*2 58 52.5
2500 650-800 160*2 65 60
XCMD1200 1200 1500 ≤120 ≤10-30 350-900 160*2 81 73
2000 450-1000 185*2 93 85
2500 600-1200 220*2 106 98

Case Presentation
1.Yihua Chemical Industry (limestone crushing)
Purchase of equipment: XCBW1860+XCE1215+XCMD1225.
Yihua is working in limestone chemical industry with a processing capacity of 1000 tons per hour. Yihua purchased our products in 2018, and purchased a pair of crushing tooth rollers in 2021, which are in good use.
Finished material specifications: 40mm-80mm.
2.Yellow River Group (limestone/coal crushing)
Purchase of equipment for production line No. 4: XCBW2080+XCE1215+XCDRS1008+XCMD1225.
Production line No. 4, managed by a subsidiary of Yellow River Group, has a processing capacity of 1,000 tons per hour. The production line started production in 2016 with the purchase of equipment XCBW2080+XCE1215+XCMD1225 and later added XCDRS1008 for screening finished material.
Since 2008, we have successfully supplied 8 sets of XCMD series products, 6 sets of XCE series products, 6 sets of XCBW series products and 2 sets of XCDRS series products to 6 limestone/coal production lines of Yellow River Group.
Finished material specifications: 40mm-80mm/30mm-80mm/50mm-80mm.
3.Shuyu Group (quartz rock crushing)
Purchase of equipment: XCBW1560+XCE1215+XCZK1860+XCMD1025+XCMD9012(fine crushing).
The group is engaged in calcium powder industry, and the quartz rock crushing capacity of the project is 800 tons per hour. The production line was put into operation in 2020, and the equipment is now running smoothly with high output, fully meeting the customer's requirements.
Finished material specifications: 40mm-70mm/5mm-20mm.
