600-1200 TPH Output 220*2KW Smooth Roll Crushers For Large Crushing Production Line
600-1200 TPH Output 220*2KW Smooth Roll Crushers For Large Crushing Production Line
600-1200 TPH Output 220*2KW Smooth Roll Crushers For Large Crushing Production Line
600-1200 TPH Output 220*2KW Smooth Roll Crushers For Large Crushing Production Line
Specifications
Brand Name :
BENO
Model Number :
XCMD1200 * 2500(R)
Certification :
CE, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 653,424.66-769,354.84 one set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets / year
Delivery Time :
30-90 days
Packaging Details :
Simple Package
Output :
600-1200 TPH
Weight :
106 t
Power :
220*2 KW
Feed Size :
Less Than 120 mm
Discharging Size :
Less Than 10-30 mm
Application :
Stone Crushing
Description

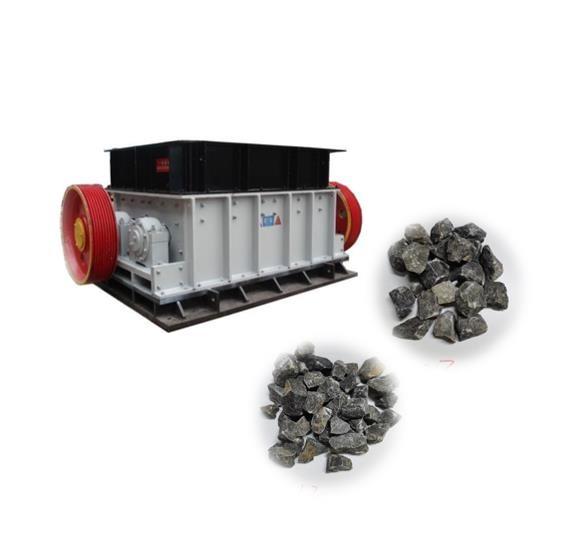

600-1200 TPH Output Roll Crusher Machine For Large Crushing Production Line

Product Description

The model XCMD1200 * 2500 of this Roll Crusher Machine is the largest in this series of equipment, and it is also the highest in output at that time. Its output is stable in the range of 600-1200 tons per hour. This Roll Crusher Machinet is often used at the crushing site of medium and large mines, and often works with large production lines. It has good quality, large output and stable operation.

Case Presentation

Shuyu Group (quartz rock crushing)

Equipment procurement: XCMD1225 (R)(fine crushing).

Shuyu Group is engaged in calcium powder industry, and the quartz rock crushing capacity of the project is 1000 tons per hour.The production line was put into operation in 2020, and the equipment is now running smoothly with high output, fully meeting the customer's requirements.

Finished material specification: 5mm-20mm.

Technical Reference Data

Model Diameter of roller (mm) Length of roller (mm) Maximum side length of feeding material (mm) Grain size of discharging material(mm) Production capacity (t/h) Power (kw) Soft connection weight (t) Direct connection weight (t)
XCMD500 500 1000 ≤50 ≤10-25 20-50 15*2 9.5 8.2
1500 30-60 18.5*2 11.8 10.5
2000 40-70 22*2 14.5 12.8
2500 50-80 30*2 18 16.3
XCMD650 650 1000 ≤60 ≤10-25 30-80 45*2 12.3 10.5
1500 50-100 55*2 18.5 16
2000 60-160 75*2 23 21
2500 75-220 90*2 28 25
XCMD750 750 1000 ≤70 ≤10-30 50-150 55*2 23 21
1500 80-180 75*2 26.5 24.5
2000 100-200 90*2 30 27.2
2500 120-250 110*2 33.8 30.8
XCMD850 850 1000 ≤75 ≤10-30 100-220 75*2 26 23.5
1500 200-400 90*2 31.5 28.5
2000 300-500 110*2 36 33
2500 350-650 132*2 39 36
XCMD1000 1000 1000 ≤100 ≤10-30 250-450 90*2 46.8 41
1500 350-550 110*2 52 46.2
2000 500-700 132*2 58 52.5
2500 650-800 160*2 65 60
XCMD1200 1200 1500 ≤120 ≤10-30 350-900 160*2 81 73
2000 450-1000 185*2 93 85
2500 600-1200 220*2 106 98
