10-25mm Discharging Size Aggregate And Concrete Production Equipment Crushers High Efficiency
10-25mm Discharging Size Aggregate And Concrete Production Equipment Crushers High Efficiency
10-25mm Discharging Size Aggregate And Concrete Production Equipment Crushers High Efficiency
10-25mm Discharging Size Aggregate And Concrete Production Equipment Crushers High Efficiency
Specifications
Brand Name :
BENO
Model Number :
XCMD500 * 2500(R)
Certification :
CE, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 110,958.90-130,645.16 one set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets / year
Delivery Time :
30-90 days
Packaging Details :
Simple Package
Weight :
18 t
Output :
50-80 TPH
Feed Size :
Less than 50 mm
Discharging Size :
10-25 mm
Application :
Mining
Description

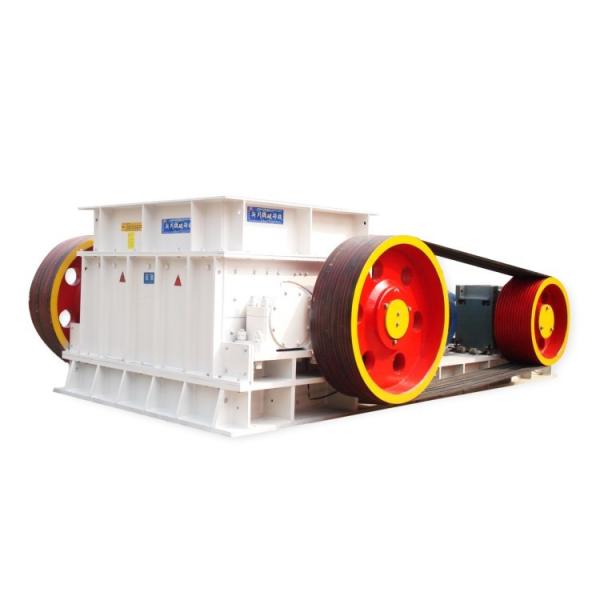

High Efficiency Roll Crusher Machine 50-80 TPH Output 10-25mm Discharging Size

Product Description

This Roll Crusher Machine can replace the foreign powerful screening crusher and is a special screening crusher for the production of materials calcined in domestic shaft kiln and rotary kiln. The equipment has the advantages of high yield, good shape of finished products, high crushing rate, long service life and easy maintenance.

The model of this Roll Crusher Machine is XCMD500 * 2500, and the diameter and length of its toothed roller are 500 mm and 2500 mm respectively. The feeding granularity of the equipment is less than 50mm, and the discharging granularity is between 10-25mm. The weight of the equipment of this model is 18 tons, the hourly output is 50-80 tons, and the power of the motor used is 60 kW (30 * 2).

Equipment Advantages

1. The Roll Crusher Machine has double functions of screening and crushing, and automatic cleaning function.

2. The Roll Crusher Machine has good crushing effect and low probability of over-crushing.

3. The Roll Crusher Machine is made of high-strength and wear-resistant materials, which greatly increases the service life of the equipment.

Technical Reference Data

Model Diameter of roller (mm) Length of roller (mm) Maximum side length of feeding material (mm) Grain size of discharging material(mm) Production capacity (t/h) Power (kw) Soft connection weight (t) Direct connection weight (t)
XCMD500 500 1000 ≤50 ≤10-25 20-50 15*2 9.5 8.2
1500 30-60 18.5*2 11.8 10.5
2000 40-70 22*2 14.5 12.8
2500 50-80 30*2 18 16.3
XCMD650 650 1000 ≤60 ≤10-25 30-80 45*2 12.3 10.5
1500 50-100 55*2 18.5 16
2000 60-160 75*2 23 21
2500 75-220 90*2 28 25
XCMD750 750 1000 ≤70 ≤10-30 50-150 55*2 23 21
1500 80-180 75*2 26.5 24.5
2000 100-200 90*2 30 27.2
2500 120-250 110*2 33.8 30.8
XCMD850 850 1000 ≤75 ≤10-30 100-220 75*2 26 23.5
1500 200-400 90*2 31.5 28.5
2000 300-500 110*2 36 33
2500 350-650 132*2 39 36
XCMD1000 1000 1000 ≤100 ≤10-30 250-450 90*2 46.8 41
1500 350-550 110*2 52 46.2
2000 500-700 132*2 58 52.5
2500 650-800 160*2 65 60
XCMD1200 1200 1500 ≤120 ≤10-30 350-900 160*2 81 73
2000 450-1000 185*2 93 85
2500 600-1200 220*2 106 98
