CE ISO9001 Granite Quarry Stone Crushing Machine Low Energy Consumption
CE ISO9001 Granite Quarry Stone Crushing Machine Low Energy Consumption
CE ISO9001 Granite Quarry Stone Crushing Machine Low Energy Consumption
CE ISO9001 Granite Quarry Stone Crushing Machine Low Energy Consumption
Specifications
Brand Name :
BENO
Model Number :
XCMD500 * 2000(R)
Certification :
CE, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 89,383.56-105,241.93 one set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets / year
Delivery Time :
30-90 days
Packaging Details :
Simple Package
Output :
40-70 TPH
Weight :
14.5 t
Power :
22 KW * 2
Feed size :
Less Than 50 mm
Discharging Size :
10-25 mm
Application :
Coal, electricity, environmental protection, chemical industry, etc
Description

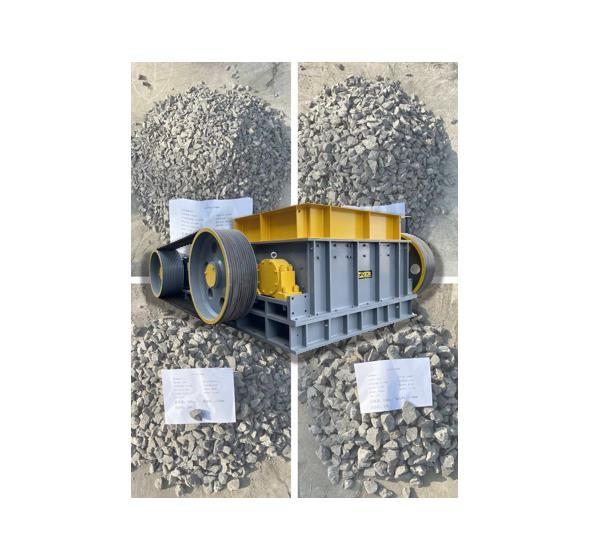

Stone Crushing Roll Crusher Machine 40-70 TPH Output Low Energy Consumption

Product Description

This equipment is called Roll Crusher Machine and its model is XCMD500 * 2000. It is mainly used for fine crushing of brittle block materials in coal, chemical and other industries, including but not limited to coal gangue, coke, gypsum and granite.

Since the research and development of this series of equipment, we have constantly absorbed and introduced advanced foreign technology, and then improved it according to the different characteristics of the broken materials, and finally achieved a good breaking effect. It is a very leading equipment in the industry.

Equipment Advantages

1. The transmission mode of the Roll Crusher Machine is relatively simple and convenient, with convenient centralized lubrication system.

2. The structure and performance of the Roll Crusher Machine have international advanced technology and reach the international level.

3. The the Roll Crusher Machine has simple operation, stable operation and long service life.

Technical Reference Data

Model Diameter of roller (mm) Length of roller (mm) Maximum side length of feeding material (mm) Grain size of discharging material(mm) Production capacity (t/h) Power (kw) Soft connection weight (t) Direct connection weight (t)
XCMD500 500 1000 ≤50 ≤10-25 20-50 15*2 9.5 8.2
1500 30-60 18.5*2 11.8 10.5
2000 40-70 22*2 14.5 12.8
2500 50-80 30*2 18 16.3
XCMD650 650 1000 ≤60 ≤10-25 30-80 45*2 12.3 10.5
1500 50-100 55*2 18.5 16
2000 60-160 75*2 23 21
2500 75-220 90*2 28 25
XCMD750 750 1000 ≤70 ≤10-30 50-150 55*2 23 21
1500 80-180 75*2 26.5 24.5
2000 100-200 90*2 30 27.2
2500 120-250 110*2 33.8 30.8
XCMD850 850 1000 ≤75 ≤10-30 100-220 75*2 26 23.5
1500 200-400 90*2 31.5 28.5
2000 300-500 110*2 36 33
2500 350-650 132*2 39 36
XCMD1000 1000 1000 ≤100 ≤10-30 250-450 90*2 46.8 41
1500 350-550 110*2 52 46.2
2000 500-700 132*2 58 52.5
2500 650-800 160*2 65 60
XCMD1200 1200 1500 ≤120 ≤10-30 350-900 160*2 81 73
2000 450-1000 185*2 93 85
2500 600-1200 220*2 106 98
