Mining Vibrating Screen Stainless Steel Vibrating Screens Reliable Capacity 100-255 T/H
Mining Vibrating Screen Stainless Steel Vibrating Screens Reliable Capacity 100-255 T/H
Mining Vibrating Screen Stainless Steel Vibrating Screens Reliable Capacity 100-255 T/H
Mining Vibrating Screen Stainless Steel Vibrating Screens Reliable Capacity 100-255 T/H
Specifications
Brand Name :
BENO
Model Number :
XCYK1860
Place of Origin :
Sichuan, China
Certification :
CE, ISO9001
MOQ :
1 set
Price :
USD 21,739.73-30,419.35 one set
Packaging Details :
Simple package
Delivery Time :
30-90 days
Payment Terms :
T/T, L/C
Supply Ability :
800 sets/year
Screen Mesh :
1800*6000 Mm
Screen Layer :
2-4
Screen Angle :
20°
Noise Level :
Low
Type :
Vibrating Screens
Material :
Stainless Steel
Screen Area :
0-10.8㎡
Motor Power :
18.5 or 22kw
Description

Mining Vibrating Screen Stainless Steel Vibrating Screens Reliable Capacity 100-255 T/H

Product Description:

Vibrating Screens are highly efficient screening equipment, widely used for the processing of granular materials. Featuring an oscillating motion, these screens work on the principle of the greater the vibration frequency, the higher the screening efficiency. Our Vibrating Screens have a vibration frequency of 740-800 R/min, and are made of robust stainless steel material for a long lifespan. The motor power of these screens is 18.5-22kw, with a screen area of 0-10.8㎡. They are great for various applications and can effectively separate particles of different sizes, shapes and weights. With our Vibrating Screens, you can rest assured that you will be getting high-performance screening equipment that can be used for a variety of applications.

Features:

  • Product Name: Vibrating Screens
  • Vibration Frequency: 740-800 R/min
  • Type: Vibrating Screens
  • Capacity: 100-255 T/h
  • Noise Level: Low
  • Material: Stainless Steel
  • Specialities: Aggregate screening, Sizing, Scalping, De-watering, Desliming, etc

Technical Parameters:

Parameter Value
Noise Level Low
Screen Angle 20°
Material Stainless Steel
Motor Power 18.5-22kw
Type Vibrating Screens
Double Amplitude 0-8 Mm
Screen Mesh 1800*6000 Mm
Screen Area 0-10.8㎡
Lifespan Long
Vibration Frequency 740-800 R/min

Applications:

BENO XCYK1230 Oscillating Screen is a vibrating screen machine from Sichuan, China. It is equipped with CE and ISO9001 certification, and comes with minimal order quantity of 1 set. The price range is from USD 21,739.73-30,419.35 one set. The package is simple and delivery time is within 30-90 days. Payment terms are available for T/T and L/C. The supply ability is up to 800 sets per year. The double amplitude of the screen is 0-8 Mm and the area of the screen is 0-10.8㎡. The motor power is 18.5-22kw and the material is stainless steel. The capacity of the screen is 100-255 T/h.

Mining Vibrating Screen Stainless Steel Vibrating Screens Reliable Capacity 100-255 T/H

Support and Services:

Vibrating Screens Technical Support and Service

We provide technical support and service for vibrating screens for optimal performance and efficiency. Our services include:

  • Installation and maintenance
  • Troubleshooting
  • Inspection and testing
  • Calibration and repair
  • Replacement part supply
  • On-site and remote monitoring
  • Technical training
The actual services provided shall be subject to the specific contract.

FAQ:

Q&A for Vibrating Screens

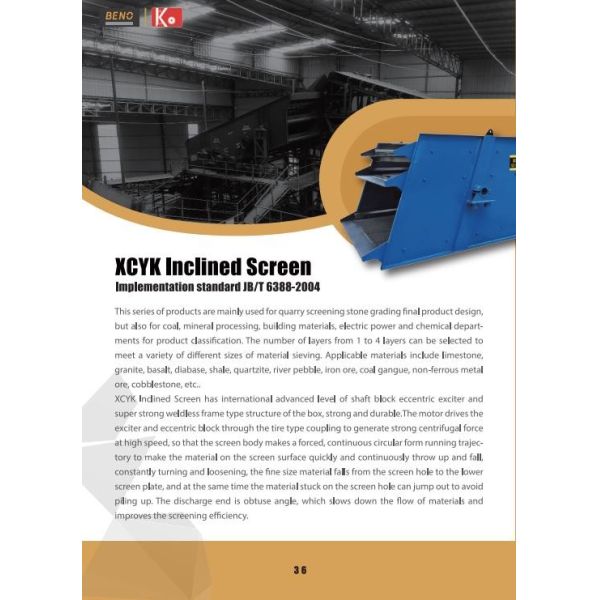

Q1: What type of vibrating screen does this vibrating screen belong to?
A1: Circular vibrating screen.
Q2: What is the working principle of this vibrating screen?
A2: A circular vibrating screen is a device that uses a regular motor through a soft connection to drive the vibration force generated by the exciter to achieve the purpose of screening. The circular vibrating screen causes the material to move in a parabolic circular trajectory on the screen surface, dispersing the material as much as possible, thereby improving the material's bouncing force and reducing hole blockage. The circular vibrating screen mainly screens materials with large ratios, large particles, and high hardness, and is widely used in mining industries such as mines, coal, and quarries.
Q3: What is the model and throughput of this vibrating screen?
A3: Its model is XCYK1860, with a throughput of 100-255 tons per hour, suitable for medium-sized crushing and screening production lines.
Q4: What are the advantages of this vibrating screen?
A4: High screening efficiency, good screening effect, multiple materials screened at once, stable operation, low dust and low noise.
