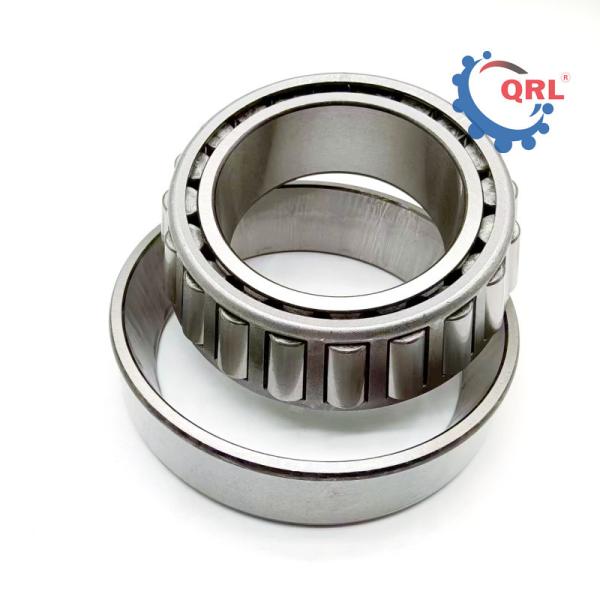

567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm
567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm
567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm
567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm
Specifications
Brand Name :
QRL
Model Number :
567/563
Certification :
ISO2000/9002
Place of Origin :
CHINA
MOQ :
35
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P
Supply Ability :
10000 PCS
Delivery Time :
time by quantity
Packaging Details :
Carton/woven bag
Type :
Taper Roller Bearing
Dimensions :
567-563
Number of row :
In Stock
Roller Bearing Type :
Auto bearings.
Brand Name: :
OEM-QRL
Service: :
OEM Customized Services
Weight :
2.5 kg
Application: :
Engineering Machinery
Description

567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm

Tapered Roller Bearing Specification

Alternative Product Codes :567/563, 567/63

Dimensions (Metric): 73.025x127.000x36.512mm
(Inch): 2.8750X5.0000X1.4375

Inside Diameter (d): 73.025mm / 2.8750"
Outside Diameter (D): 127.000mm /5.0000"
Width (T): 36.512mm / 1.4375"
Cup Width (C): 28.575mm / 1.1250"
Width (B): 36.170mm / 1.4240"

Taper Roller Bearing Description

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.

Tapered Roller Bearing Product number

TOYOTA 90366-40016 KOYO 33008 JR
TOYOTA 90366-40016 KOYO TRA 080702
TOYOTA 90366-40059 KOYO ST4090-N
TOYOTA 90366-40064 NACHI 40KB681A1
TOYOTA 90366-40064 KOYO 33008 JR
TOYOTA 90366-40077 NSK R 40-24SB
TOYOTA 90366-40088 KOYO 30308 DJR
TOYOTA 90366-40094 NACHI 40KB722
TOYOTA 90366-40094 TIMKEN NP014119/NP419902
TOYOTA 90366-40097 NACHI 40KC683
TOYOTA 90366-44001 NACHI 44KB721
TOYOTA 90366-45001 KOYO 30309DJR
TOYOTA 90366-45016 KOYO 32211JR
TOYOTA 90366-45035 NSK R45-33g
TOYOTA 90366-48001 KOYO ST4890
TOYOTA 90366-48002 KOYO ST4870
TOYOTA 90366-50001 NACHI 50 KB8301
TOYOTA 90366-50007 KOYO TR100802-2
TOYOTA 90366-50054 NACHI 32010 JA1
TOYOTA 90366-50087 KOYO 32010JA1/50KB102
TOYOTA 90366-51001 KOYO ST5186LFT
TOYOTA 90366-54011 KOYO ST5487-N


Taper Roller Bearings Applications

Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.

567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm567-563 Tapered Roller Bearing Dimensions Metric 73.025x127.000x36.512mm
