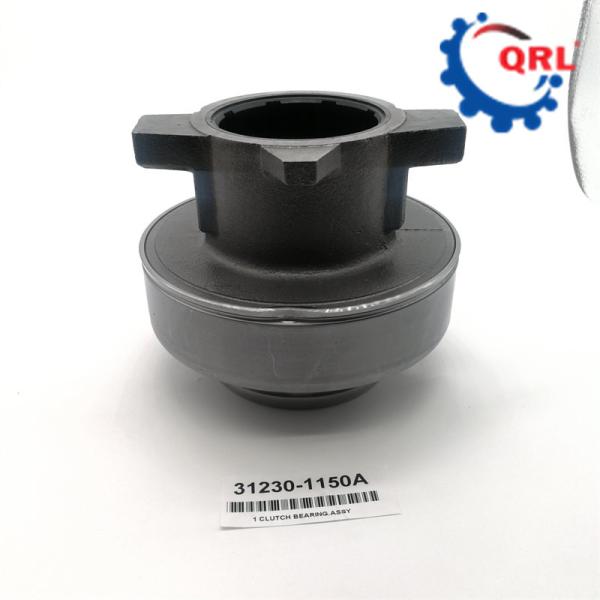

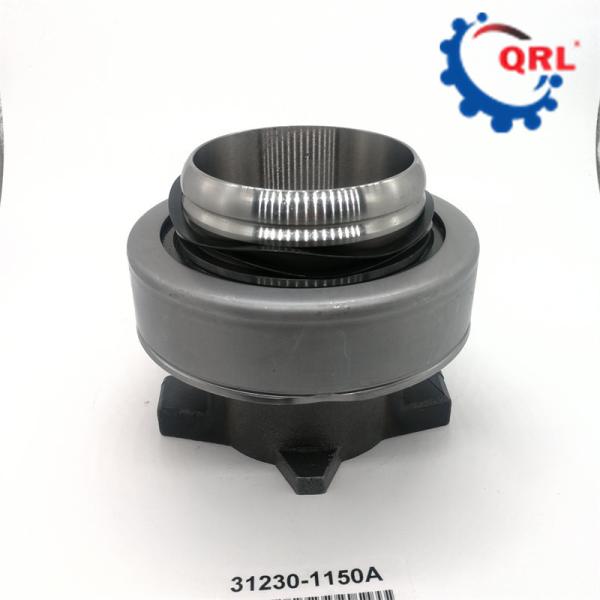

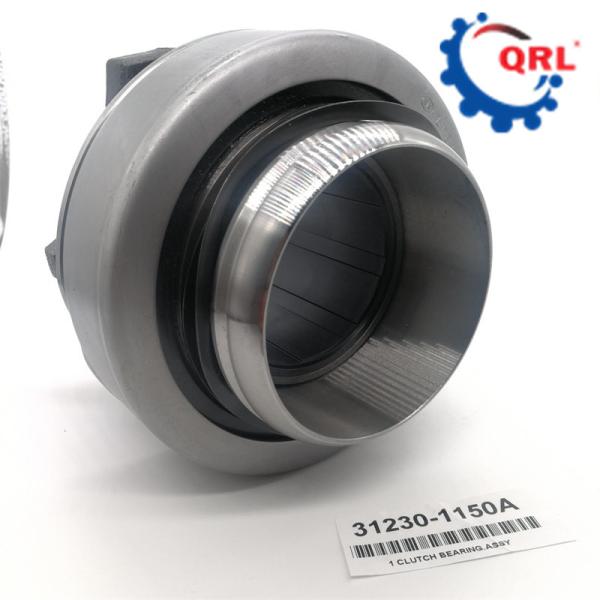

Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
Specifications
Brand Name :
QRL
Model Number :
31230-1150A
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
40
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P,
Supply Ability :
10000
Delivery Time :
10-15 Working
Packaging Details :
Carton/woven bag
Product name :
31230-E0030
Type :
Clutch Release Bearing
Applicable models :
For HINO 700
Number :
31230-1150A
Size :
Standard Size
Weight :
2.1 kg/pcs
Brand :
Oem/Neutral
Description

Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105

Clutch Release Bearing Specification

Type 3151000034 truck clutch release bearing 31230-1150A for DAF
Size Inner Diameter: 60.8 mm
Contact Dia. D0: /
Contact Outer Dia. D1: /
Contact Inner Dia D2: /
Assemble Height T0: 88.5 mm
Total Height T1: 110 mm
Shift fork length L: 77.8 mm
Weight : 2.85 kgs
Brand SI, PPB
Place of Origin Zhejiang, China
Certification ISO9001, TS16949
Warranty 12 months or 30,000 Kms
Application DAF, HINO, MAN, VAN, HOOL

Clutch Release Bearing Description

Step on the clutch master cylinder - the hydraulic oil is escorted from the master cylinder cylinder to the clutch wheel pump - the wheel pump pushes the push rod forward when it is under pressure - resists the shift fork - the shift fork pushes the clutch pressure plate - (note that at this time, if the shift fork is different from If the clutch pressure plate that is rotating at high speed is combined, a bearing must be needed to eliminate the heat and resistance generated by direct friction, so the bearing installed in this position is called a release bearing) - The release bearing pushes the pressure plate to separate it from the friction plate and then cuts off power from the crankshaft.


Clutch Release Bearing Product number

QRL-1044 09269-33001 SKF=VKC3564
09269-33002 BCA=614056
09269-33003 LUK=500032960
09269-35004 NTN=FCR50-30-2
23265-77D00
23265-77500
QRL-1066 09269-35003 SKF=VKC3509
09269-35005 BCA=613001
09269-53003 LUK=500030260
NSK=35TMK29B2
QRL-1081 09269-28004 SKF=VKC3567
09269-28005 BCA=614050
09269-53004 LUK=500032560
KOYO=RCT283SAF


Clutch Release Bearing Delivery

Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.

Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105

Clutch Release Bearing 31230-1150A 31230-E0030 For HINO 700 For DAF XF105
