29590/20 Auto Tapered Roller Bearing Size 66.6*107.5*25.4mm
29590/20 Auto Tapered Roller Bearing Size 66.6*107.5*25.4mm
29590/20 Auto Tapered Roller Bearing Size 66.6*107.5*25.4mm
29590/20 Auto Tapered Roller Bearing Size 66.6*107.5*25.4mm
Specifications
Brand Name :
QRL
Model Number :
29590/20
Certification :
ISO2000/9002
Place of Origin :
CHINA
MOQ :
12
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P
Supply Ability :
10000 PCS
Delivery Time :
time by quantity
Packaging Details :
Carton/woven bag
Type :
Taper Roller Bearing
Inch :
Dia 60.325mm, Outer Dia 100mm, Width 25.4mm
Number of row :
28985-28921
Roller Bearing Type :
inch bearing
Brand Name: :
0EM-QRL
Number of Row: :
Single row
Weight :
1.75 kg
Seals Type: :
Open
Description

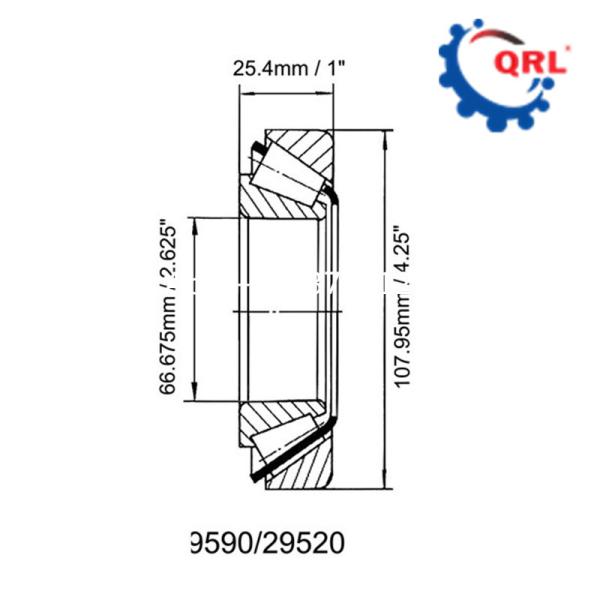

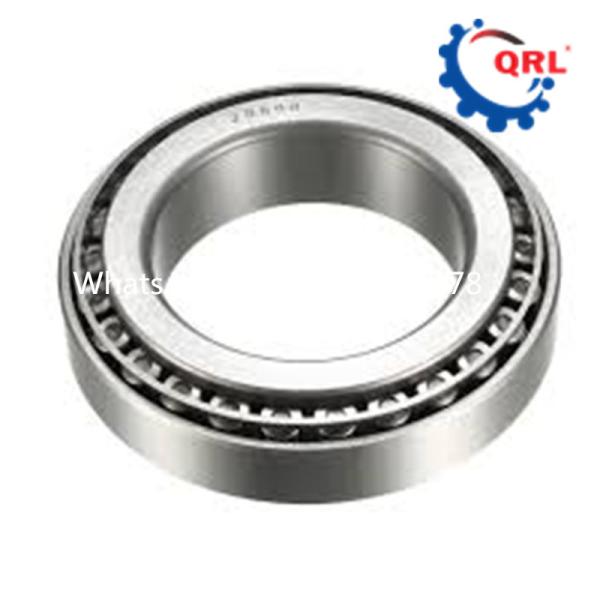

29590/20 Size 66.6*107.5*25.4mm Tapered Roller Bearings Auto

Tapered Roller Bearing Specification

New code 29590 29522
Bearing type taper roller bearing
Brand oem or QRL
Business type Manufacturer
Id (mm) 66.675
OD (mm) 107.95
B (mm) 25.4
Cr(KN) 78.2
Cor(KN) 125
Speed for grease lubrication (r/min) 3400
Oil lubrication speed (r/min) 4300
Weight(kg) 0.853
Material Chrome steel or Stainless steel
Delivery time 2-3 days of stock, 15-30 days for OEM
Packing industrial packing or commercial packing
Payment terms T/T, Western Union, Paypal
Gurantee 1 years

Taper Roller Bearing Description

Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer). The cone, cup and rollers carry the load while the cage spaces and retains the rollers on the cone. The cone, rollers and cage components of our tapered roller bearings are referred to as the cone assembly. Individual cup and cone components of our tapered roller bearings are available as well as the complete assembly. In addition, We offers a variety of configurations to our tapered roller bearings such as single-row, double-row

Tapered Roller Bearing Product number

Part No. BOUNDARY DIMENSIONS (in m.m.) LOAD RATING LIMITING SPEED (R.P.M.) MASS
d D B C T STATIC (Co) KN DYNAMIC (C) KN Grease Oil (~ Kg.)
HM 204049 / HM 204010 45.987 90.975 32 26.5 32 150.5 119.1 4300 5600 0.94
359-S/354X 46.038 85 21.692 17.462 20.635 89.5 76.1 4400 5800 0.49
369 - S / 362 A 47.625 88.9 22.225 16.153 20.638 91 76.5 4300 5600 0.55
HM 804846 / HM 804810 47.625 95.25 29.37 23.02 30.162 140 104.3 4000 5300 0.98
528/522 47.625 101.6 36.068 26.988 34.925 169 137.3 3800 5000 1.29
CK 50 K / 3720 50 93.264 30.302 23.812 30.162 148.9 110.9 4000 5300 0.87
JW 5049 / JW 5010 50 105 29 22 32 145.5 114.3 3400 4500 1.23
370A / 362A 50.8 88.9 22.225 16.513 20.638 91 76.5 4300 5600 0.51
28580 / 25821 50.8 92.075 25.4 19.845 24.607 116.1 84.2 4000 5300 0.7
455/452 50.8 107.95 29.317 27 32.557 148 115 3500 4700 1.34
3780 / 3720 50.8 93.264 30.302 23.812 30.162 148.9 110.9 4000 5300 0.84


Taper Roller Bearings Applications

1.Most Competitive Price.

2.Help you to choose the best freight.

3.Provide all document for your Customs Clearance.

4.We will undertake the responsibility if there is any problems.

Trustworthiness is the basis of great bussiness.And we have the powerful ability to support your business!
