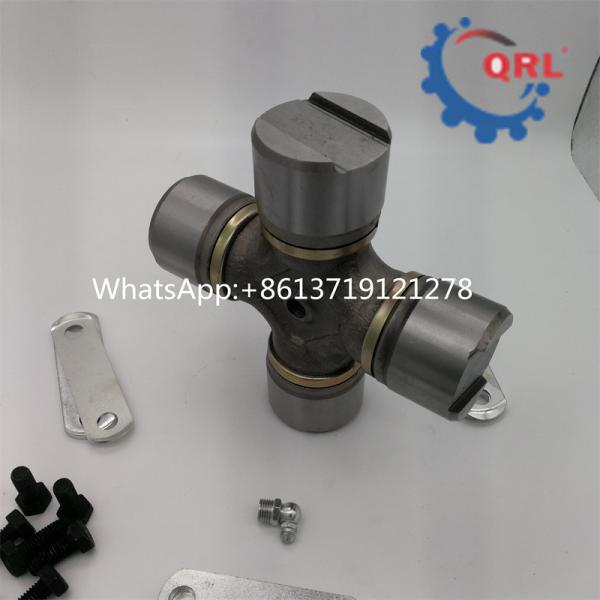

Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Specifications
Brand Name :
QRL
Model Number :
GUIS-66
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2000pcs
Delivery Time :
12 days
Packaging Details :
Oem/Neutral
Type: :
Universal Joint Beairng
NO: :
37401-1080
Oem :
GUH-72
Size :
47X144MM
Certification: :
ISO9001/2008
Place of Origin: :
Zhejiang, China
Application :
for HINO
Weight :
3.2KG
Description
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MM
Universal Joint Bearing Specification

Place of Origin Guangdong, China Brand Name QRL/GMG
Model Number GUH-72 Applicable models HINO
Universal Joint Bearing Description
Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
Universal Joint Bearing Product number
ISUZU
NO. FIG ORIGINAL NO. GMB NO. ASSY SIZE SNAP NET GROSS

φ(D) (O) (L) RINGS WEIGHT WEIGHT
m/m m/m m/m
1 C 1-37300-069-0 GUIS-72 42 115 2.0×46 1650 1700
2 B 9-37300-017 GUIS-51 28.82 61.3 1.5×27.4 300 310
3 F 9-37300-065 GUIS-52 29 53 1.5×31.0 540 550
4 K 9-37300-150 GUIS-55 42 125 PLATE 2000 2050
5 B 9-37300-609 GUIS-56 23.82 61.3 1.5×27.4 300 310
6 K 9-37300-163 GUIS-57 48 145 PLATE 3500 3600
7 K 9-37300-112 GUIS-58 36 97 PLATE 1270 1310
8 B 44135-060 GUIS-59 20.5 56.5 1.2×23.0 200 210
9 M 9-37300-139-0 GUIS-60 49.22 148.38 3200 3300
10 B 9-37300-031 GUIS-61 23.82 61.3 1.5×27.4 300 310
11 C 1-37300-0130 GUIS-62 35 103.92 2.0×40.5 1150 1190
12 P 94207232-1 GUIS-63 22.06 59 270 280
13 C 1-37300-047-0 GUIS-64 40 115 2.0×43.3 1510 1560
14 K 1-37300-004-0 GUIS-65 45.98 136 PLATE 2800 2900
15 C 5-37300-032-0 GUIS-66 33 93 2.1×35.5 850 890
16 M 1-37300-049-0 GUIS-67 56 174 3900 4000
17 K 1-37300-082-0 GUIS-68 50 155 PLATE 3500 3600
18 B 8-94376-373-0 GUIS-69 27 81.75 1.5×30.0 500 520
19 F 8-97071-811-0 GUIS-70 29 53 1.5×31.0 540 550
20 F 8-94238-930-1 GUIS-71 29 53 1.5×31.0 540 580
21 C 1-37300-102-0 GUIS-72 42 115 2.0×46.0 1650 1700
Universal Joint Bearing Delivery
Before the contract is placed, the Payment, LASER MARK, plastic bag, box, sticker, carton, carton mark, pallet should be discussed into details. After the order is placed, the products must be manufactured as description. Best quality with acceptable price is our service for all customers. as the deadline is coming, after the payment, the packed goods would be sent to the right place.
Auto parts universal joint for HINO GUH-72 37401-1080 47X144MMAuto parts universal joint for HINO GUH-72 37401-1080 47X144MM
