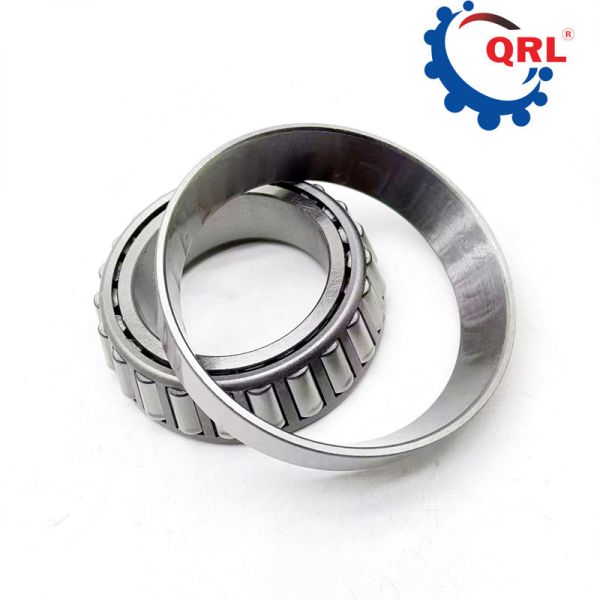

32209 JR 32209 Taper Roller Bearings Metric 45x85x24.75(mm)
32209 JR 32209 Taper Roller Bearings Metric 45x85x24.75(mm)
32209 JR 32209 Taper Roller Bearings Metric 45x85x24.75(mm)
32209 JR 32209 Taper Roller Bearings Metric 45x85x24.75(mm)
Specifications
Brand Name :
QRL
Model Number :
32209 JR 32209
Certification :
ISO2000/9002
Place of Origin :
CHINA
MOQ :
30
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P
Supply Ability :
4000 PCS
Delivery Time :
time by quantity
Packaging Details :
Carton/woven bag
Type :
Taper Roller Bearing
Dimensions :
32209 JR
Size :
45x85x24.75(mm)
Brand Name: :
OEM-QRL
Weight :
0.75 kg.
Service: :
OEM Customized Services
Application: :
Engineering Machinery
Product name :
High Quality SDVV Tapered Roller Bearing T7FC085-XL
Description

32209 JR 32209 Taper Roller Bearings Metric 45x85x24.75(mm)

Tapered Roller Bearing Specification

Dimensions
d - Bore: 45.000 mm
D - Cup outer diameter: 85.000 mm
B - Cone width: 23.000 mm
C - Cup width: 19.000 mm
T - Bearing width: 24.750 mm

Basic load ratings
C90 - Dynamic Radial Rating (90 million revolutions)4: 26900 N
C1 - Dynamic Radial Rating (1 million revolutions)5: 104000 N
C0 - Static Radial Rating: 98700 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)6: 18700 N

Taper Roller Bearing Description

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.

Tapered Roller Bearing Product number

Model No. Model No. Model No. Model No. Model No. Model No. Model No. Model No.
30202 30302 32204 32304 32004 33005 31303 30303D
30203 30303 32205 32305 32005 33006 31304 30304D
30204 30304 32206 32306 32006 33007 31305 30305D
30205 30305 32207 32307 32007 33008 31306 30306D
30206 30306 32208 32308 32008 33009 31307 30307D
30207 30307 32209 32309 32009 33010 31308 30308D
30208 30308 32210 32310 32010 33011 31309 30309D
30209 30309 32211 32311 32011 33012 31310 30310D
30210 30310 32212 32312 32012 33013 31311 30311D
30211 30311 32213 32313 32013 33014 31312 30312D
30212 30312 32214 32314 32014 33015 31313 30313D
30213 30313 32215 32315 32015 33016 31314 30314D
30214 30314 32216 32316 32016 33017 31315 30315D
30215 30315 32217 32317 32017 33018 31316 30316D
30216 30316 32218 32318 32018 33019 31317 30317D
30217 30317 32219 32319 32019 33020 31318 30318D
30218 30318 32220 32320 32020 33021 31319 30319D
30219 30319 32221 32321 32021 33022 31320 30320D
30220 30320 32222 32322 32022 33024 31322 30322D


Taper Roller Bearings Applications

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.
