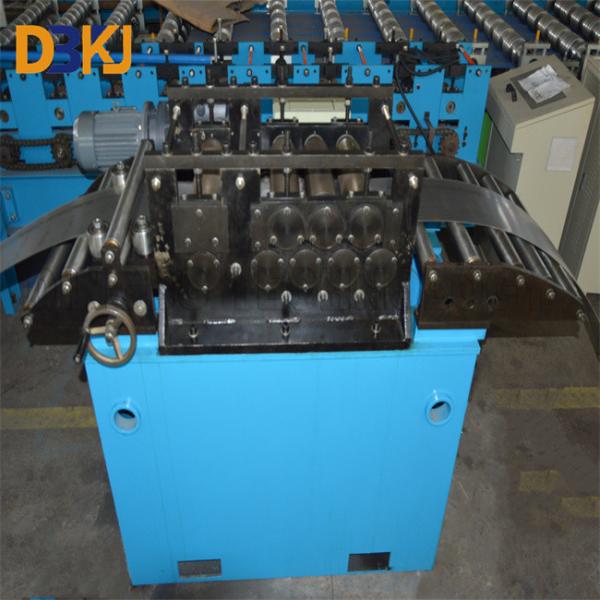

Steel Profiles Step beam Roll Forming Machine with Servo cutting high speed 0-20m/min

Product Description:

1. Feature:

2. Material Loading:

   The process begins with loading a coil of metal strip, typically steel or aluminum, onto the uncoiler of the roll forming machine.

3. Uncoiling:

   The metal strip is gradually unwound from the coil, and its flat form is fed into the roll forming machine.

4. Leveling and Pre-Cutting:

   Some roll forming machines include leveling and pre-cutting stations to ensure the material is flat and to cut it to the desired length before entering the forming section.

5. Roll Forming:

   The heart of the roll forming machine is the series of forming rolls. These rolls are strategically positioned to gradually shape the flat metal strip into the profile of a step beam. Each set of rolls performs a specific bending or forming operation.

6. Servo Cutting:

   After the metal strip has been formed into the step beam profile, a cutting mechanism is employed to cut the beam to the required length. This may involve flying cutoff presses or other cutting methods.

7. Stacking or Packaging:

   The finished step beams are either stacked or packaged for transportation and further processing. Some roll forming lines may include automated stacking or packaging systems.
8. Technical Data

Applications:

Brand Name: Dingbo

Model Number: DBKJ

Place of Origin: China

Certification: CE ISO

Minimum Order Quantity: 1SET

Payment Terms: TT,LC

Roller Material: Cr12

Forming Speed: 10-15m/min

Frequency: 50Hz/60Hz

Power Source: Electric

Cutting Type: Hydraulic Cutting

Customization Service:

• Customized design according to client's specific requirements
• Customized production process to ensure high efficiency and precision
• Customized color options for machine and finished products
• Customized packaging and shipping solutions to meet client's needs
• Customized after-sales service to ensure customer satisfaction

This Rack Upright Roll Forming Machine, also known as a Pallet Rack storage roll forming machine, is designed and manufactured by Dingbo in China. It is a highly efficient and durable machine, made with galvanized steel and equipped with a high-quality Cr12 roller. With a forming speed of 10-15m/min and a frequency of 50Hz/60Hz, this machine is able to produce high-quality box beams at a rapid pace. The cutting type is hydraulic, ensuring precise and clean cuts. Our machine is also certified with CE and ISO, guaranteeing its reliability and safety.

At Dingbo, we offer customization services to meet the unique needs of our clients. We understand that every customer has different requirements and we strive to provide tailored solutions. With our high-speed and efficient production process, we are able to deliver customized machines with high precision and quality. Trust Dingbo for all your roll forming needs and experience our reliable and efficient customization service.

Packing and Shipping:

Our Step beam Roll Forming Machine is carefully packaged to ensure safe and secure transportation to its destination.

• The machine is first wrapped in a layer of protective plastic to prevent any scratches or damage during shipping.
• It is then placed in a sturdy wooden crate to provide additional protection during transit.
• The crate is sealed and labeled with the necessary shipping information.

We offer a variety of shipping options to accommodate our customers' needs. These include:

• Sea freight: Our machine can be shipped via sea freight for larger orders and longer distance shipments.
• Air freight: For urgent orders, we also offer air freight services to ensure timely delivery.
• Land transportation: We can arrange for the machine to be transported by land for customers located in nearby countries.

Our team will work closely with our customers to determine the most suitable shipping method based on their specific requirements.

Upon shipment, we will provide our customers with a tracking number to monitor the status of their order.

We take great care in packaging and shipping our machine to ensure it arrives in perfect condition. Thank you for choosing our product!

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to visit your factory?

We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

Pudong Airport, about 3 hours.

It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

It is very convenient.Please let me know if you have booked the tickets

so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

9. Q: What certificate do you have ?

We have CE and ISO certificate.

10. Q: What are your terms of payment ?

First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

11. Q: What can you do if the machine breaks down?

We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
