Specifications
Brand Name :
Dingbo
Model Number :
DBKJ
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
USD 45000-55000 per set
Payment Terms :
T/T, L/C
Supply Ability :
20 sets per month
Delivery Time :
40-50 working days
Packaging Details :
Naked and fixed in the container using steel wire
Material :
Galvanized steel
Thickness :
1.5-2mm
Main motor Power :
15KW
Rolling Speed :
10-15 m/min
Transmission :
Chain
PLC :
Panasonic
Warranty :
1 Year
Color :
blue
Description

1.5-2mm Vineyard Post roll forming machine Fence post machine hydraulic punching and cutting

Product Descriptions

Vineyard post roll forming machine is used for vineyard and orchard to produce the stakes and posts.
Normally grape post has 1.5-2mm thickness. So we adopted gearbox driving system to make sure our machine working stably and with long working life. At our machine, you can see each electronic material we use famous brands like YASKAWA, SIEMENS and SCHNIERDER.
If you want to make a economic machine line, we can make two grape post profiles in one line. But one time produce one profile.

Profile drawing to design

1.5-2mm Post Roll Forming Machine Galvanized steel 10-15 m/min

Working Flow

Manual uncoiler–Feeding and Levelling--Punching--Roll-forming -- Hydraulic-cutting -- Output table

Product Parameters

Items Specifications
Material of coil Material GI
Material Thickness 1.5-2mm
Uncoiler 3 tons manual
Hydraulic punching & cutting Hydraulic Power 5.5KW
Mould and Blade Material Cr12Mov
Tolerance +-1.5mm

Forming system

 Rolling Speed 10-15m/min
Roller Material Gcr15, quench treatment hardness 55-58
Shaft diameter 76mm
Shaft material 45# steel, quenched
Main Motor Power 15kw
Way of Drive Chain
Frame structure Wall plate
Electrical control system Electric Source 380V, 50HZ,3 phase
PLC Control System Panasonic
Encoder Omron

Main Components

No. Name Qty
1 Manual uncoiler 1
2 Punching machine 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic pump station 1
5 Output table 2

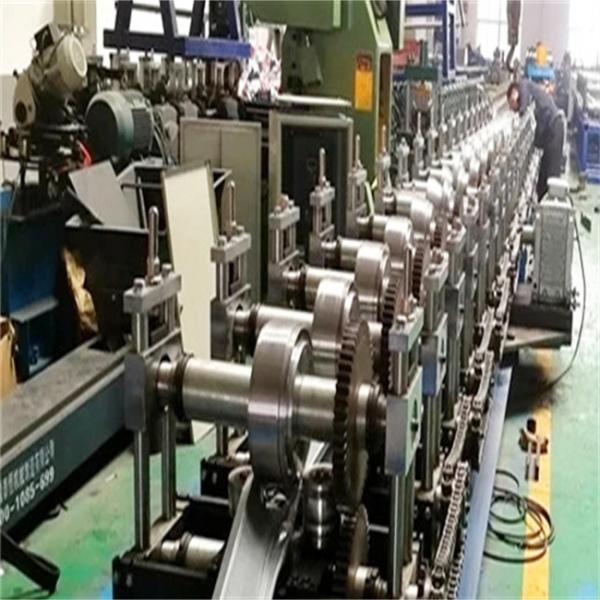

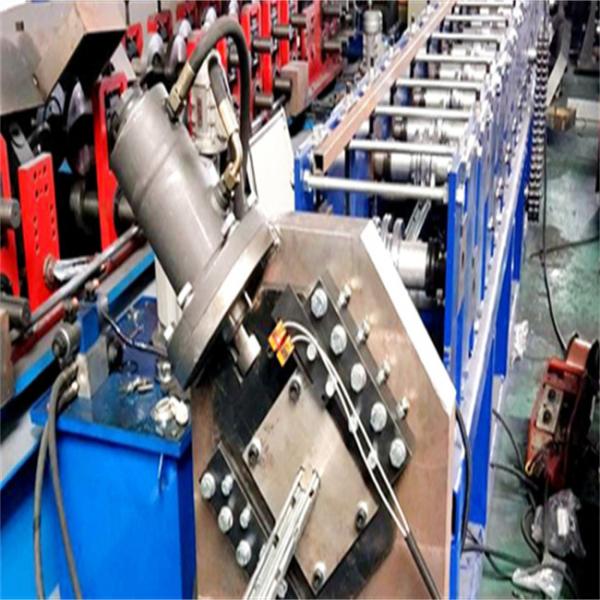

Pictures

1.5-2mm Post Roll Forming Machine Galvanized steel 10-15 m/min

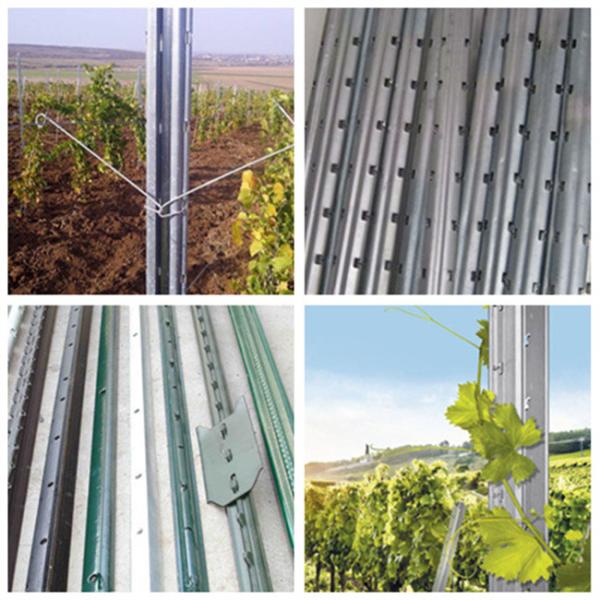

Application

Vineyard posts, or vineyard posts as they are known locally, are posts used in viticulture for the production of wine. Grape trellis columns facilitate grape growers to systematically control and manage them. Vineyards supported and structured by grape trellis columns can form neat layers and receive more light, making grapes or other crops more vigorous, neat and strong, and improving Orchard yields and extended orchard life. The grape trellis columns are designed to be durable, easy to install, and have a long lifespan, reducing installation and placement costs. The hanging trough design allows the steel wire to be completely controlled in the trough, maximizing the growth potential of the plants and allowing them to receive more light.

1.5-2mm Post Roll Forming Machine Galvanized steel 10-15 m/min

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to visit your factory?

We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

Pudong Airport, about 3 hours.

It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

It is very convenient.Please let me know if you have booked the tickets

so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

9. Q: What certificate do you have ?

We have CE and ISO certificate.

10. Q: What are your terms of payment ?

First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

11. Q: What can you do if the machine breaks down?

We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
