Specifications
Brand Name :
Dingbo
Model Number :
DBKJ
Place of Origin :
China
Certification :
CE ISO
MOQ :
1 Set
Price :
USD 68000-85000per set
Payment Terms :
T/T, L/C
Supply Ability :
20 sets per month
Delivery Time :
50-60 working days
Packaging Details :
Naked and fixed in the container using steel wire
Dimension :
12m*1.5m*1.2m
Hydraulic Station Power :
5.5kw
Machine Type :
Scaffold Plank Roll Forming Machine
Cutting Blade Material :
Cr12Mov
Cutting Type :
Hydraulic Cutting
Voltage :
380V/50Hz/3Phase
Forming Speed :
10-15m/min
Roller Material :
Cr12
Description

100mm Shaft Diameter Scaffolding Plank Roll Forming System for Industrial 12tons

Product Description:

A scaffolding roll forming machine is a machine specifically designed for manufacturing scaffolding components using the process of roll forming. Roll forming is a continuous bending process where a long strip of metal is fed through a set of rollers to gradually form the material into the desired shape. This method is highly efficient in producing large quantities of consistent and high-quality components.

Features:

Roll Forming Precision

Our machine is equipped with a series of precision-engineered rollers, allowing for the accurate and consistent shaping of raw materials. This results in the production of high-quality scaffolding components with tight tolerances.

High-Speed Production

With the ability to operate at high speeds, our machine optimizes manufacturing processes and significantly increases overall production output. This leads to cost savings and improved competitiveness in the market.

Sturdy Construction

Built with robust materials and precision engineering, our machine is designed for long-term durability. This ensures a reliable and consistent performance over its operational lifespan.

Safety Features

We prioritize operator safety in the workplace by incorporating safety features such as emergency stop buttons and protective guards in our machine.

Efficient Material Handling

Our machine is capable of handling a variety of raw materials commonly used in scaffolding production, such as steel and other metals. The efficient material handling system minimizes waste and optimizes material usage, resulting in cost savings for our customers.

Process Flow
Uncoiler --- leveling--- punching--- roll forming--- cutting --- output

Profile drawing

100mm Shaft Scaffold Plank Roll Forming Machine Automatic Forming Machine 12 Tons

Technical Data

Items Specifications
Max Material Thickness 2- 4mm
Hydraulic Uncoiler 5T
Leveler 7Rollers
Material GI
Punching Hydraulic pre-punching
Mould Material Cr12Mov
Rolling Speed 10m/ min
Roller Stations 18 stations
Roller Material Gcr15, quench treatment hardness 55-60
Shaft 45# steel
Shaft diameter95 95mm
Main Motor Power 55kw
Side structure Memory archway
Transmission Gearbox
Hydraulic Power 15 kw
Blade Material Cr12Mov
Tolerance +- 1.5mm
Electric Source

380V, 50HZ,

3 phase(customized)
PLC Control System Panasonic

Main Items

No. Name Qty
1 Hydraulic uncoiler 1
2 Leveling 1
3 Hydraulic Punching 1
4 Main Roll Forming Machine 1
5 PLC Control Box 1
6 Hydraulic Pump Station 1
7 Output Table 2

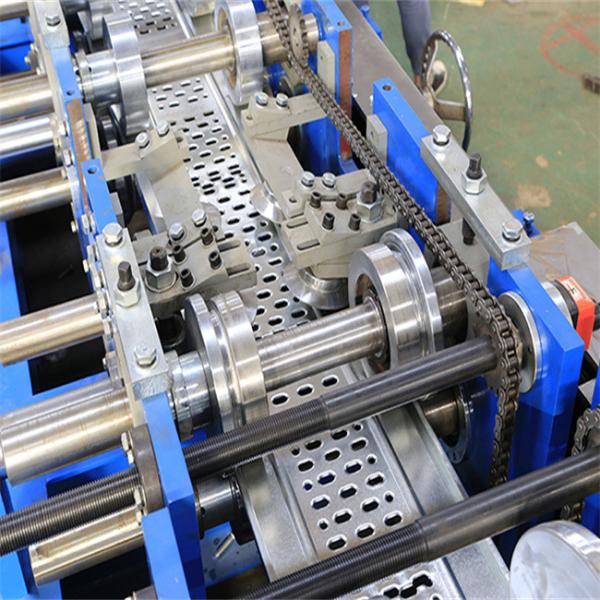

Main machine pictures

100mm Shaft Scaffold Plank Roll Forming Machine Automatic Forming Machine 12 Tons

Application

Construction Industry: Our scaffolding roll forming machine is a perfect solution for mass producing scaffolding components that are essential for residential, commercial, and industrial construction projects. With our machine, you can easily meet the high demands of the construction industry with precision and efficiency.

Manufacturing Facilities: Our scaffolding roll forming machine is also suitable for manufacturing facilities that are looking to improve their production efficiency and product quality. By investing in our machine, you can elevate your manufacturing capabilities and stay competitive in the market.

Invest in the Scaffolding Roll Forming Machine: Our state-of-the-art scaffolding roll forming machine is designed to help you meet the growing demands of the construction industry with speed and accuracy. Don't miss out on the opportunity to enhance your production process and meet the needs of your customers with ease. Contact us today to learn more!

100mm Shaft Scaffold Plank Roll Forming Machine Automatic Forming Machine 12 Tons

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to visit your factory?

We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

Pudong Airport, about 3 hours.

It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

It is very convenient.Please let me know if you have booked the tickets

so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

9. Q: What certificate do you have ?

We have CE and ISO certificate.

10. Q: What are your terms of payment ?

First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

11. Q: What can you do if the machine breaks down?

We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
