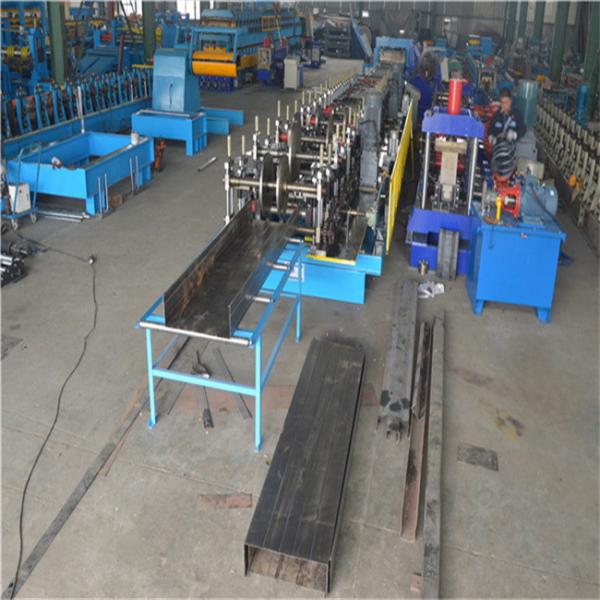

New condition Cable tray production line with 10-12m/min capacity

Product Description:

A cable tray roll forming machine is a specialized piece of equipment designed to manufacture cable trays through a process known as roll forming .

Cable trays are support systems used in various industries to manage and organize electrical cables and wires . The roll forming machine produces these cable trays by shaping and cutting metal sheets into the required profiles.

A cable tray roll forming machine is a vital tool in the electrical and construction industries . It provides a cost-effective and efficient way to produce cable management solutions for a variety of applications.

The versatility of these machines allows for the production of cable trays in different sizes and configurations to meet the specific needs of different projects. The roll forming process ensures that the cable trays are strong, durable, and able to withstand heavy loads without bending or breaking.

Features:

The roll forming process involves passing a continuous metal strip through a series of rollers, each performing specific bending and shaping operations to create the cable tray components.

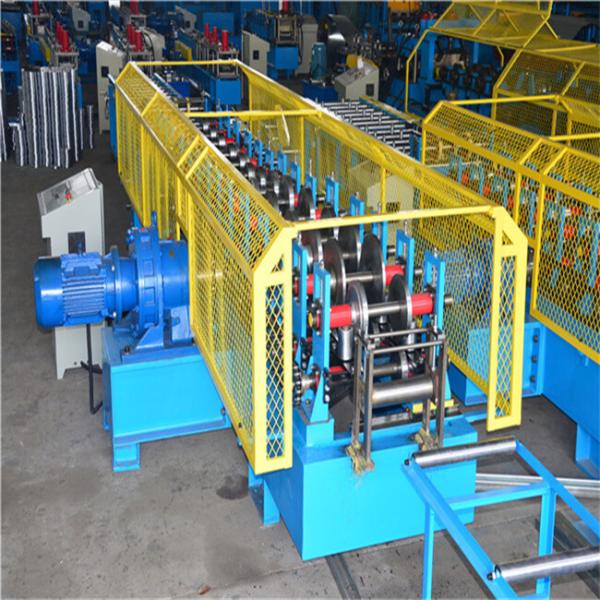

The roll forming machine consists of several components:

• Decoiler: Unrolls the metal strip before it enters the machine.

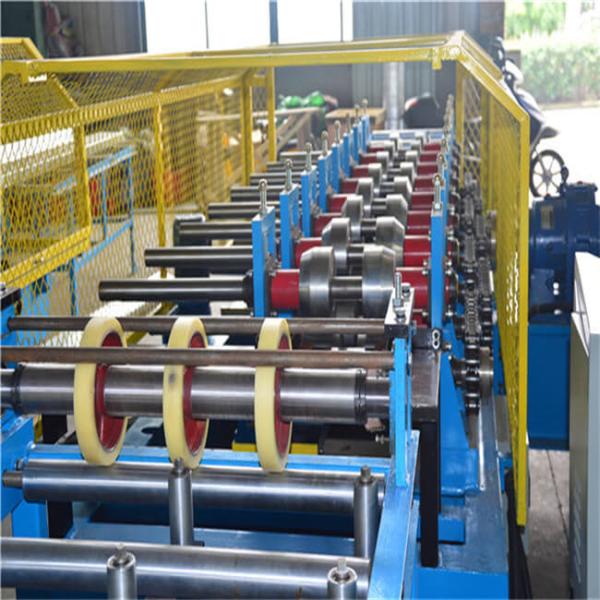

• Roll Forming Stands: Series of rollers, each performing specific bending and shaping operations to create the cable tray components.
• Cut-off System: Cuts the formed cable tray to the required length.
• Control System: Manages the speed, length, and other parameters of the roll forming process.
• Stacker/Collector: Gathers and stacks the finished cable tray sections.

The most commonly used materials for cable trays are galvanized steel or aluminum due to their corrosion resistance and durability.

The cable tray components that can be produced by the roll forming machine include:

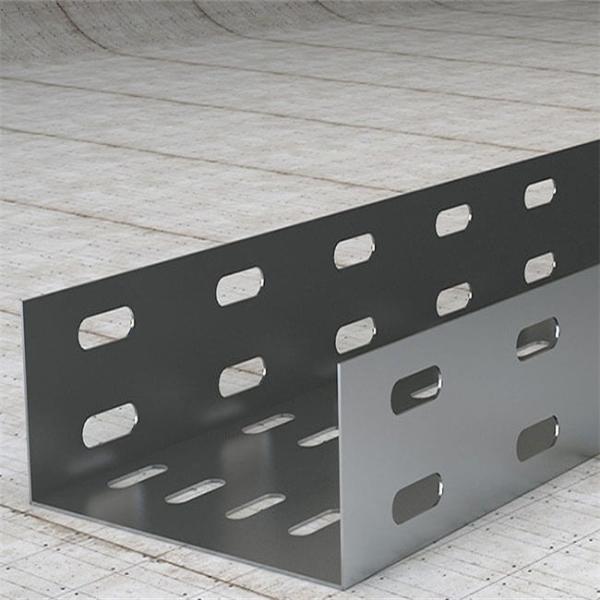

• Straight Sections: Formed to create straight runs of the cable tray.
• Horizontal Bends: Shaped components for changing the direction of the cable tray.
• Vertical Bends: Components for creating vertical turns or changes in elevation.
• Accessories: Various accessories like connectors, covers, and support brackets may also be formed.

The roll forming process offers several advantages, including:

• Efficiency: It is a high-speed and efficient method for producing long sections of uniform cable trays.
• Customization: The machine allows for customization of cable tray profiles to meet the specific requirements of different installations.
• Precision: The machine ensures that each section of cable tray produced is consistent in terms of profile and dimensions.

Safety features are often incorporated into the machine to protect operators and ensure the proper functioning of the equipment.

Cable trays produced by the machine must meet industry standards and regulations to ensure the safe and reliable support of electrical cables.

Regular maintenance is essential to keep the machine in good working condition and to ensure the quality of the produced cable trays.

Technical Parameters:

Applications:

Cable trays are versatile support systems utilized in various industries for the organization and management of electrical cables and wires. They offer a structured and secure method for routing and supporting cables in diverse environments. Below are several common applications of cable tray products:

In commercial and industrial structures, cable trays are commonly used to organize and support electrical wiring systems. They are often employed in offices, factories, warehouses, and other large facilities.

Cable trays are essential in power generation plants and electrical substations for routing and supporting an extensive network of power cables. They assist in maintaining a neat and organized cable layout.

Cable trays are crucial in oil refineries, petrochemical plants, and other oil and gas industry facilities. They provide a structured system for managing the complex network of cables required in these environments.

Cable trays are suitable for use in chemical processing plants where the environment may be corrosive. The trays can be made from corrosion-resistant materials, ensuring durability in harsh conditions.

Cable trays are commonly used in data centers and IT facilities for managing the extensive network of data and communication cables. They enable efficient organization and easy access for maintenance and expansion.

Cable trays are also utilized in hospitals and healthcare facilities for organizing and routing electrical wiring for medical equipment, lighting, and communication systems.

Cable trays are installed in transportation infrastructure such as airports, train stations, and bus terminals to support the electrical systems needed for lighting, signage, and other operational requirements.

In larger residential buildings or complexes, cable trays may be used for efficient organization and routing of electrical wiring, particularly in areas with a high volume of cables that need managing.

Cable trays are commonly utilized in water treatment plants for supporting the electrical infrastructure required for water purification and treatment processes.

Cable trays are used in the telecommunications industry to manage the network of cables needed for telephone lines, fiber optics, and other communication systems.

In solar farms and wind energy projects, cable trays are essential for supporting and organizing the electrical wiring needed for distributing power generated by renewable energy sources.

Cable trays are utilized in mining and extraction operations for managing electrical cables in harsh and demanding environments.
