Description

100-600mm Automatic Sizes Adjustment Cable Tray Roll Forming Machine by Chain 1- 3mm galvanized steel

Features of Cable tray Roll forming machine

Our cable tray roll forming machine is capable of making different sizes of cable trays through automatic adjust and replacing punching mold. The cable trays produced by this roll forming production line are extensively used in petroleum, chemical, electric power, light industry, television, and telecommunications. The utility model has the advantages of light weight, large load, beautiful appearance, simple structure and convenient installation, and the utility model is suitable for the installation of the power cable and the laying of the control cable.

With full and special experience, we can customize cable tray forming machines or cable roll forming production lines according to customers’ profile drawing and specifications. Other high quality equipment, including metal roll forming machine are also provided as you require.

Process Flow

Uncoiler—Leveling—Feeding—Punching&Cutting—Roll forming—Output table

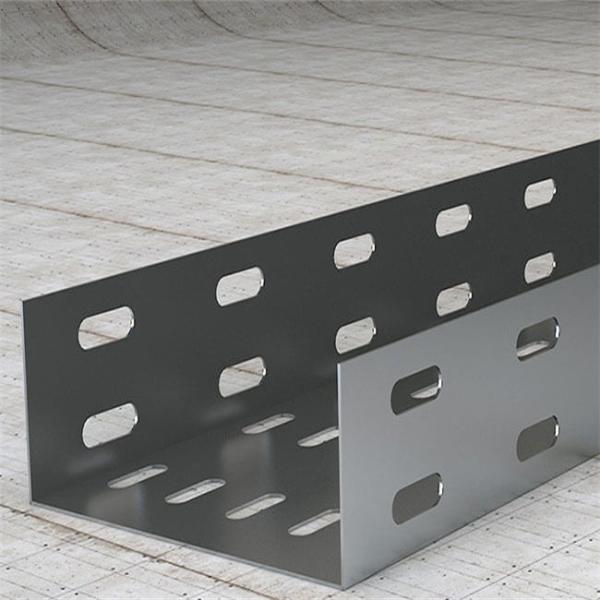

Profile drawing

380V 50HZ Cable Tray Roll Forming Machine 100-600mm Sizes Adjustment

Technical Data

Items Specifications
Max Material Thickness 1- 2mm
Hydraulic Uncoiler 5T
Leveler 7Rollers
Material GI
Punching Hydraulic punching
Mould Material Cr12Mov
Rolling Speed 10m/ min
Roller Stations 14 stations
Roller Material Gcr15, quench treatment hardness 55-60
Shaft 45# steel
Shaft diameter 76mm
Main Motor Power 22kw
Side structure Memory archway
Transmission Chain
Hydraulic Power 7.5 kw
Blade Material Cr12Mov
Tolerance +- 1.5mm
Electric Source

380V, 50HZ,3 phase(customized)

PLC Control System Panasonic

Main Items

No. Name Qty
1 Hydraulic uncoiler 1
2 Leveling 1
3 Hydraulic Punching 1
4 Main Roll Forming Machine 1
5 PLC Control Box 1
6 Hydraulic Pump Station 1
7 Output Table 2

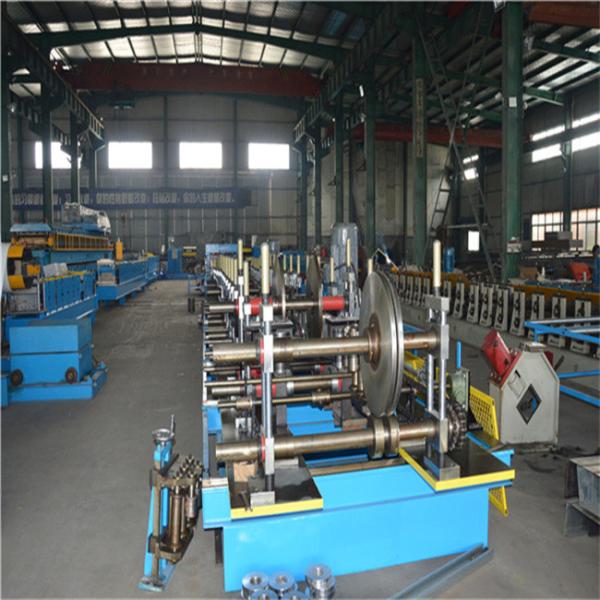

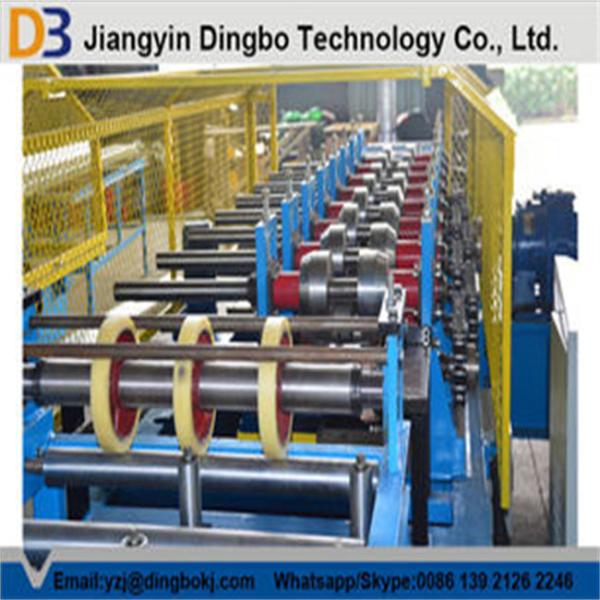

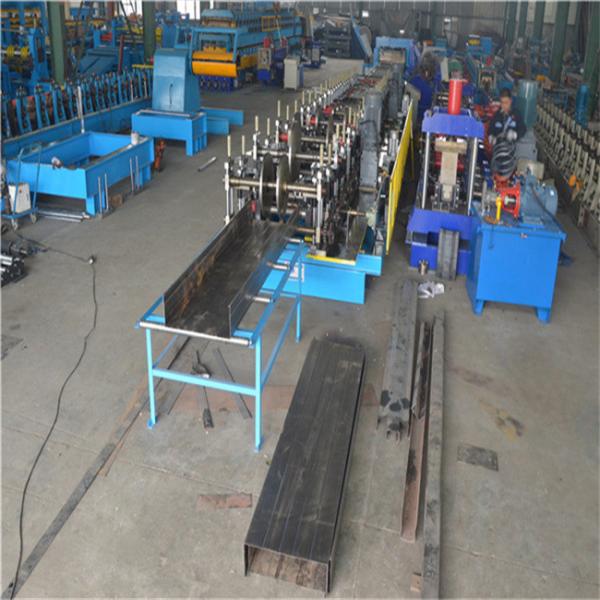

Main machine pictures

380V 50HZ Cable Tray Roll Forming Machine 100-600mm Sizes Adjustment

Application

In building wiring, cable tray systems are used to support insulated cables used for power distribution and communications. Cable trays are an alternative to open wiring or electrical conduit systems and are commonly used for cable management in commercial and industrial buildings. Common cable trays are made of galvanized steel, stainless steel, aluminum or fiberglass reinforced plastic. Materials for a given application are selected based on where they will be used. Galvanized pallets can be made from pre-galvanized steel sheets from which the pallets are made, or they can be hot-dip galvanized after manufacturing. When galvanized pallets are cut to length on site, the cut surfaces are often coated with a zinc-rich compound to protect the metal from corrosion.

380V 50HZ Cable Tray Roll Forming Machine 100-600mm Sizes Adjustment

380V 50HZ Cable Tray Roll Forming Machine 100-600mm Sizes Adjustment

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to visit your factory?

We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

Pudong Airport, about 3 hours.

It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

It is very convenient.Please let me know if you have booked the tickets

so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

9. Q: What certificate do you have ?

We have CE and ISO certificate.

10. Q: What are your terms of payment ?

First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

11. Q: What can you do if the machine breaks down?

We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
