Specifications
Brand Name :
Dingbo
Model Number :
DBKJ
Place of Origin :
China
Certification :
CE ISO
MOQ :
1SET
Delivery Time :
50-60 working days
Payment Terms :
TT, L/C
Price :
USD 18000-22000 per set
Supply Ability :
20 sets per month
Packaging Details :
Naked and fixed in the container using steel wire
Drive System :
By Chain
Steel Thickness :
0.45-0.75mm
Cutter Material :
CR12 Mould Steel
Speed :
10-15 Meter/min
Painting Color :
Blue+Grey White
Suitable To Process :
Colored Steel Plate, Galvanized Board
Control System :
PLC
Main power :
7.5kw
Cutting :
Automatic hydraulic cutting
Description

7.5Kw Hydraulic Power Gutter roll forming machine with 16 roller stations and Chains Transmission

Product Descriptions

A gutter roll forming machine is a specialized piece of equipment used in the manufacturing of gutters. Gutters are essential components of a building's roofing system, as they collect and channel rainwater away from the structure, preventing damage to the foundation and landscaping.

The roll forming process is a popular method for producing gutters efficiently and with precision. A gutter roll forming machine typically consists of a series of rollers and dies that shape a continuous metal strip into the desired gutter profile.

7.5Kw Roof Panel Roll Forming Machine Gutter Roll Forming Machine 16 Roller Stations

Profile drawing to design

7.5Kw Roof Panel Roll Forming Machine Gutter Roll Forming Machine 16 Roller Stations

Technological process:

Uncoiler—Guiding—Roll forming—Hydraulic Cutting—Output table7.5Kw Roof Panel Roll Forming Machine Gutter Roll Forming Machine 16 Roller Stations


Technical Data

Items Specifications

Material of coil

Material Galvanized
Material Thickness 1.25mm
Manual Uncoiler 3 tons

Forming system

Rolling Speed 10-15m/min
Roller Stations 16 stations
Shaft Diameter 56mm
Roller Material

45#steel

0.03-0.05mm chromed

Shaft Material 45#steel
Main Motor Power 7.5kw
Frame Wall plate
Transmission Chain

Hydraulic system

Hydraulic Power 3kw
Blade Material Cr12Mov
Tolerance +-1.5mm

Main Items

No. Name Qty
1 Manual uncoiler 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic pump station 1
5 Output table 2

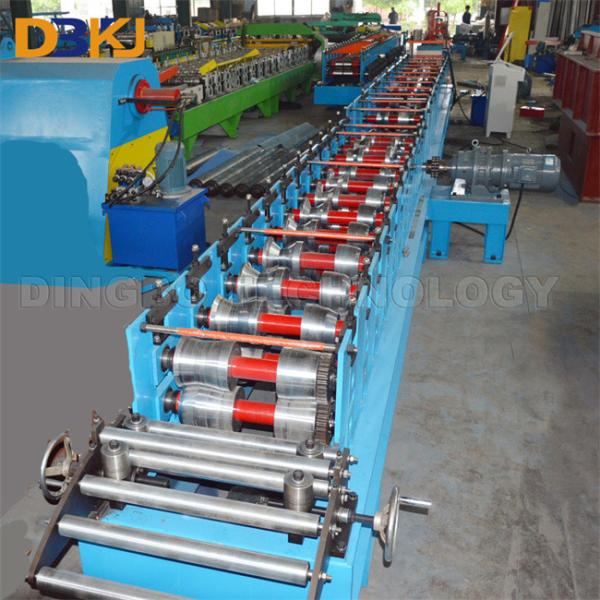

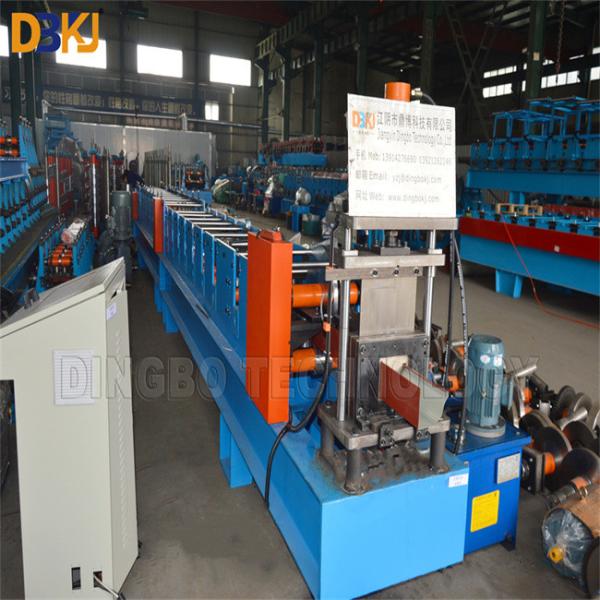

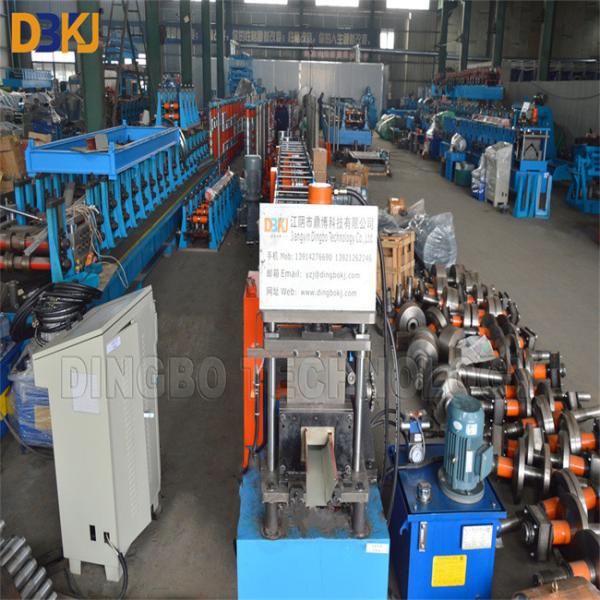

Pictures

7.5Kw Roof Panel Roll Forming Machine Gutter Roll Forming Machine 16 Roller Stations

Application

Gutter products have a crucial role in managing rainwater and protecting buildings and their surroundings. The primary purpose of gutters is to collect rainwater from the roof and channel it away from the foundation, preventing potential water damage. Here are common applications and uses of gutter products

  1. Rainwater Management:

    Gutters collect rainwater runoff from the roof and direct it away from the building. This helps prevent soil erosion around the foundation and minimizes the risk of water-related damage to the structure.
  2. Foundation Protection:

    By directing rainwater away from the foundation, gutters help prevent water accumulation around the building. This is essential for maintaining the structural integrity of the foundation and preventing issues such as cracking or settling.
  3. Preventing Basement Flooding:

    Properly installed and maintained gutters play a crucial role in preventing basement flooding. By channeling water away from the foundation, gutters reduce the risk of water seeping into basements and causing damage.
  4. Protecting Siding and Exterior Walls:

    Gutters prevent water from running down the sides of the building, protecting the siding and exterior walls from water damage, staining, and deterioration.
  5. Preventing Landscape Erosion:

    Rainwater runoff without proper gutter systems can erode the soil around a building, damaging landscaping and creating uneven terrain. Gutters help control the flow of water and protect the landscaping.
  6. Preserving Paint and Exterior Finishes:

    Uncontrolled water runoff can damage the paint and finishes on the exterior of a building. Gutters redirect water away, preserving the aesthetic appeal of the structure.
  7. Preventing Mold and Mildew:

    Accumulated water around a building's foundation can create a conducive environment for mold and mildew growth. Gutters help keep areas around the structure dry, reducing the risk of these issues.
  8. Preventing Water Stains on Driveways and Walkways:

    Water flowing off the roof without gutters can create stains on driveways and walkways. Gutters prevent this runoff and help keep outdoor surfaces clean.
  9. Harvesting Rainwater:

    Some gutter systems are designed to facilitate rainwater harvesting. This collected rainwater can be stored and used for various purposes, such as watering plants or for non-potable water needs.
  10. Preventing Ice Dams:

    In colder climates, gutters help prevent the formation of ice dams by allowing proper drainage of melting snow. Ice dams can lead to roof leaks and other winter-related issues.
  11. 7.5Kw Roof Panel Roll Forming Machine Gutter Roll Forming Machine 16 Roller Stations

Packing and Shipping:

The Gutter Roll Forming Machine is carefully packaged and shipped to ensure safe delivery to our customers. Here are the details of our packaging and shipping process:
  • The machine is wrapped in a layer of protective film to prevent any scratches or damage during transportation.
  • It is then placed in a sturdy wooden crate for added protection.
  • The crate is sealed and labeled with the product name, model number, and customer information for easy identification.
  • For international shipping, the crate is then loaded onto a pallet and secured with straps for stability.
  • The pallet is then shrink-wrapped and labeled with shipping information for easy tracking.
  • The package is then loaded onto a shipping container or truck for transportation.
  • Our team ensures that all necessary shipping documents are included and properly filled out.

Once the package arrives at its destination, our customers can expect a smooth delivery process. Our team works closely with trusted shipping partners to ensure timely and safe delivery of the Gutter Roll Forming Machine.

7.5Kw Roof Panel Roll Forming Machine Gutter Roll Forming Machine 16 Roller Stations

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to visit your factory?

We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

Pudong Airport, about 3 hours.

It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

It is very convenient.Please let me know if you have booked the tickets

so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

9. Q: What certificate do you have ?

We have CE and ISO certificate.

10. Q: What are your terms of payment ?

First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

11. Q: What can you do if the machine breaks down?

We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
