Specifications
Brand Name :
Dingbo
Model Number :
DBKJ
Place of Origin :
China
Certification :
CE ISO
MOQ :
1SET
Delivery Time :
90-100 working days
Payment Terms :
TT,LC
Price :
USD 108800-138000 per set
Supply Ability :
2 sets per month
Line Direction :
Left To Right(customized)
Control System :
PLC
Voltage :
380V 50Hz 3phases
Color :
Blue
High Speed :
0-100M/min
Condition :
New
Pipe Thickness :
0.5-2.7mm
Main Motor Power :
400kW
Description

High Speed 0-100M/min PLC Control System Tube Mill Line with Superior Performance

Product Descriptions

The tube production machine/welded pipe roll forming machine is intended for manufacturing of high frequency straight seam welding tube , square tube and special shapes tube of Φ20mm-Φ76mm with thickness of 1.0mm-4.0mm. The production line adopts advanced pass technology, PLC automatic control system, with stable operation, convenient operation and repair, and reached the advanced level in the same industry in the structure and accuracy. Equipment from the material to tube run out, the speed adjusts according to the tube specification changing. This is tube and pipe roll forming automatic welding pipe production line.

Profile drawing to design

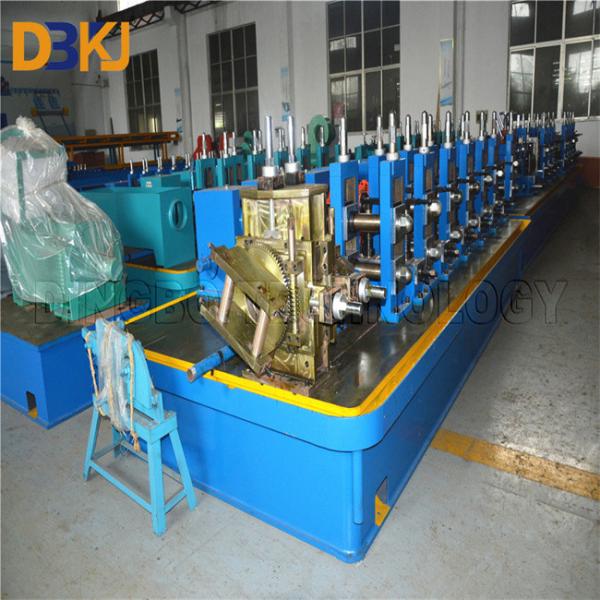

AC 380V Tube Mill Line High Speed 0-100M/Min For Gas Transportation

Working Flow

Raw material - Material feeding - Shearing and butt welding - Material storing Accumulator –Feeding- Material flattening - Roll forming - Seam direction guiding - Extruding - High frequency induction welding - Welding burr removing - Water cooling - Pipe sizing –Straightening - Computerized saw cutting - Pipe automatic unloading (Packing) - Checking and collecting

Product Parameters

Raw material Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.
Width of Strip Steel 58 - 240mm
Thickness of Strip Steel 0.6—3.0mm
Pipe size Round pipe outside diameter Φ19 - Φ76mm
Round pipe thickness 0.5-2.2mm
Rectangle pipe size 15x15 - 60x60/40x80mm
Rectangle pipe thickness 0.6 - 2.2mm
Welding Method induction welder power High frequency induction welding, 200Kw
Production speed 20- 90m/min ( Limited speed depends on pipe size and thickness)
Motor Power Voltage: AC 380V±10%
Phase: Three phase
Frequency: 50HZ±1.0%
Control Power Voltage: AC 220V±10%
Phase: Single phase
Frequency: 50HZ±1.0%
Total Power About 400Kw


Pictures

AC 380V Tube Mill Line High Speed 0-100M/Min For Gas Transportation

Application

Tube mill products are widely used in water supply projects, petrochemical industry, chemical industry, electric power industry, agricultural irrigation, and urban construction. For liquid transportation, it can be used for water supply and drainage; for gas transportation, it can be gas, steam, liquefied petroleum gas; for structural purposes: piling pipes, bridges; pipes for docks, roads, building structures, etc.

AC 380V Tube Mill Line High Speed 0-100M/Min For Gas Transportation

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A: If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B: If buyer need we will send technician to buyer site to do installation and commissioning and training.

C: installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100 per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to visit your factory?

We are in jiangyin city,belongs to Jiangsu province, near Shanghai. If you

arrive at Shanghai Airport,we can pick you up(It is 160 kilometers from

Pudong Airport, about 3 hours.

It's 110 kilometers from Hongqiao airport, about 2 hours; It's 125 kilometers from downtown Shanghai about two and a half hours.

It is very convenient.Please let me know if you have booked the tickets

so that I can prepare and book a hotel for you,we will arrange for car to pick you up.

By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price--- confirm the PI--- arrange the deposit or L/ C--- start production-- do inspection--- Shipment

9. Q: What certificate do you have ?

We have CE and ISO certificate.

10. Q: What are your terms of payment ?

First payment: 40 % by T/ T, second payment: 60% by T/ T, after the successful inspection at seller’s workshop, and before delivery.

11. Q: What can you do if the machine breaks down?

We have 12 months warranty period, if the broken parts can not be repaired, we will send new parts to replace the broken for free.But if the warranty period is over,you need to pat the express fee.We can solve problems through negotiation and provide technical support for the whole life of equipment .
