Auto Changeable C Purlin Forming Machine Steel Frame Cold Roll Forming Machine
Auto Changeable C Purlin Forming Machine Steel Frame Cold Roll Forming Machine
Specifications
Brand Name :
BMS
Model Number :
C75-300
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30sets/month
Packaging Details :
Main body of C Purlin Machine(Automatic Size Change Type,C80-300) is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are
After-sales Service Provided :
Engineers available to service machinery overseas
Thickness :
1.5-3.0mm
Yield strength :
245-550Mpa
Decoiler :
Manual/Hydraulic for options
Housing :
H450 beam
Punching :
option
Shaft :
90mm/100mm
Forming station :
16steps
Cutter material :
Cr12, heat treatment
Wall side thickness :
30mm
Description

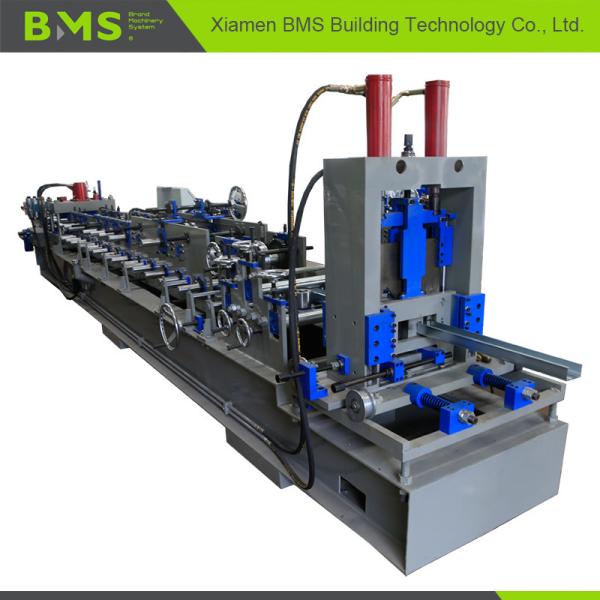

Automatic C Purlin Machine(C75-300 Purlin Roll Forming Machine)

After-sales Service Provided Engineers available to service machinery overseas
Working material galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness 1.5-3.0mm
Yield strength 245-550Mpa
Decoiler Manual/Hydraulic for options
Housing H450 beam
Punching option
Shaft 90mm/100mm
Forming station 16 steps
Cutter material Cr12, heat treatment
Wall side thickness 30mm

1. Main features of quickly change C purlin roll forming machine


The advantages of C purlin machine AUTOMATIC size-change type are as follows:

1. Produce different purlin sizes without changing rollers or spacers.

2. No need changing cutter for different sizes.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range), help to save material

5. Optional Punch hole at any position of purlin web side and flange side

2. Detailed Images of C shaped steel forming machine


Machine Parts

1) C75-300 purlin machine punching system

Brand: BMS Original: China
