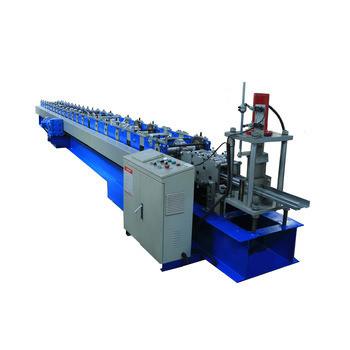

Garage Door Guide Rail Forming Machine for 2.0-2.5mm Thickness Material
Garage Door Guide Rail Forming Machine for 2.0-2.5mm Thickness Material
Specifications
Brand Name :
BMS
Certification :
ISO9001/CE/SGS
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
45DAYS
Packaging Details :
Nude Packing in The Container Suitable for T Profile Rolling Shutter Door Machine
Condition :
New
Tile Type :
Steel
Production Capacity :
12-15m/min
Working material :
galvanized sheet(GI),cold roll steel(CRC)
Yield strength :
235-400MPa
Decoiler :
Manual/Hydraulic for options
Housing :
H400 beam
Forming station :
20
Cutter material :
Cr12Mov, Heat treatment
Output :
about 12-15meters per minute
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Xiamen
Thickness :
2.0-2.5mm
Description

Garage Door Guide Rail Forming Machine for 2.0-2.5mm Thickness Material

1. Details of Garage Door Guide Rail Forming Machine

Material
Material Thickness(&):2.0-2.5mm
Applicable material: Galvanized Steel Coils, Cold Rolled Coils, yield strength 245Mpa or 550Mpa
Machine Components
1)Manual Decoiler: one set
Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton
2) Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;
Motor Driving, Gear chain transmission, 21 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and leveling)
Main Motor=7.5KW, Frequency speed control
Forming speed of approx.15-20m/min
3)Hydraulic Cutting device
hydraulic motor: 5.5KW, Hydraulic pressure range: 0-12Mpa
Cutting tool material: Cr12Mov, Heat treatment
4)PLC Control System(Touch screen brand: Taiwan WEINVIEW, Inverter brand: Finland VOCAN/Denmark Danfoss, Encoder brand: Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm
Control Voltage 24V
5) Exit Rack Un-powered, two units

2. Machine Features of Garage Door Guide Rail Forming Machine

The advantages of door frame roll forming machine are as follows:

Dor Frame roll forming machine is used to produce a profile for the door. This product is widely used in many kinds of industrial factories, civilian buildings, and wallboard for the attached part product. It has the advantage of pretty appearance, durable using and so on. It is produced continuously as roll forming machine instead of using a bending machine to make angel tile saving human resources, lower labor costs.
The complete door frame roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the ridge cap roll forming machine produces it automatically. The machines are easy to operate and running stable.
